1P NO 10A push button bell symb.2M grey - 19008.2.C

Pdf

Vimar - 19008.2.C - 1P NO 10A push button bell symb.2M grey

19008.2.C
Wiring devices / Traditional wiring devices / ARKÉ / Devices

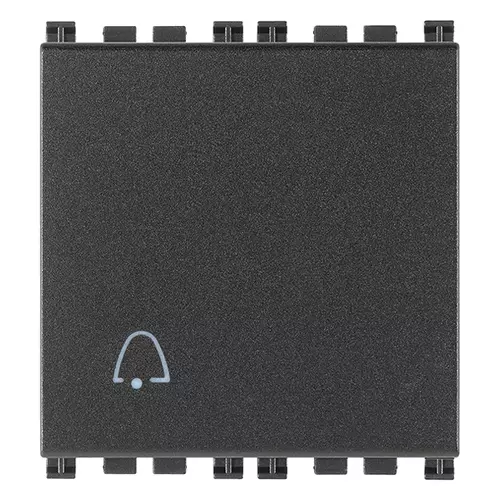

1P NO 10A push button bell symb.2M grey
1P NO 10 A 250 V~ push button, lightable bell symbol, replaceable button, grey - 2 modules

产品状态
3 - Active

视频

Arké lives in your time

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
200

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7015

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
44,80 mm

Device height
49,00 mm

Device depth
36,90 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 20 NR

条形码

8007352450776

1 NR

5.1x4.3x5.3 [cm]

34.1 [g]

8007352450783

20 NR

26.9x11.6x9 [cm]

775.7 [g]

8007352643581

240 NR

38x28.5x35.5 [cm]

9,648 [g]
