Vimar - 19017.WH.B - 2P 32A 1-way switch WATER/HEATER white

19017.WH.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

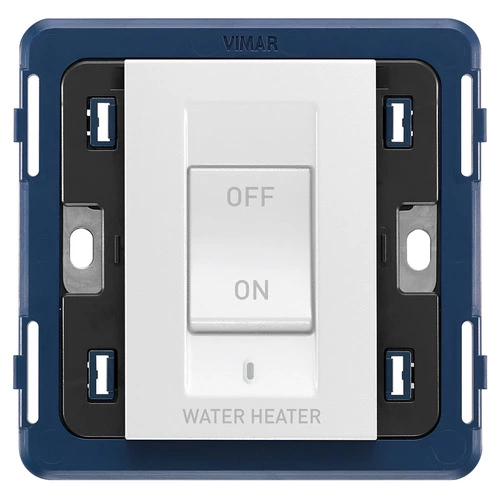

2P 32A 1-way switch WATER/HEATER white
2P 32 A 250 V~ 1-way switch, lightable, WATER/HEATER symbol, with built-in frame for British standard square boxes, to complete with British standard cover plates, white. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

产品状态
3 - Active

视频

Arké lives in your time

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
2-pole switch

Method of operation
Rocker/button

Assembly arrangement
Other

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Matt

Colour
White

RAL-number (similar)
9016

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
32,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
Yes

Device width
84,30 mm

Device height
82,50 mm

Device depth
32,20 mm

Built-in depth
22,50 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352598560

1 NR

8.5x3.9x8.6 [cm]

117.7 [g]

8007352598577

10 NR

20.7x18.5x9.6 [cm]

1,290 [g]
