1P NO+NC 10A push button OFF symbol grey - 19056.33

Pdf

Vimar - 19056.33 - 1P NO+NC 10A push button OFF symbol grey

19056.33
Wiring devices / Traditional wiring devices / ARKÉ / Devices

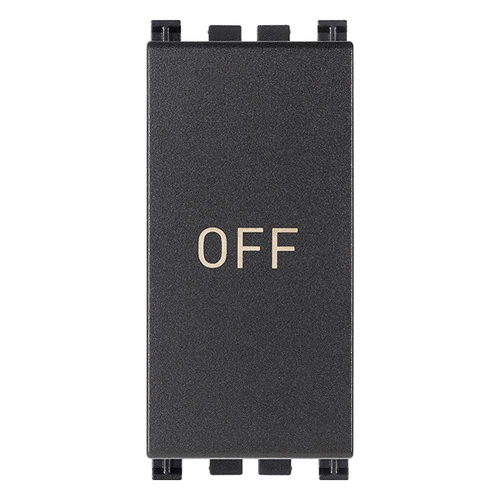

1P NO+NC 10A push button OFF symbol grey
1P 10 A 250 V~ push button, NO+NC contacts, OFF symbol, grey

产品状态
3 - Active

视频

Arké lives in your time

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7015

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
29,00 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352413900

1 NR

4.1x2.8x5.3 [cm]

32.5 [g]

8007352413917

10 NR

14.4x9x6 [cm]

361.7 [g]

8007352644809

160 NR

37.5x30x13.5 [cm]

6,136 [g]
