2P 10AX 2-way switch grey - 19060

Pdf

19060
Wiring devices / Traditional wiring devices / ARKÉ / Devices

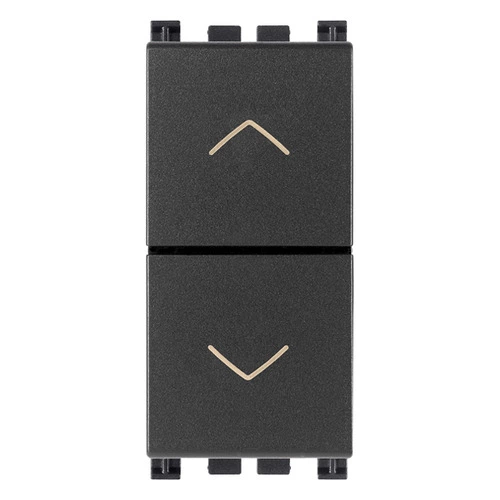

2P 10AX 2-way switch grey
2P 10 AX 250 V~ (6 terminals) two-button switch, with directional arrows and central OFF position, grey. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Other
Number of rockers
1
Number of modules (module system)
100
Number of poles
2
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
43,50 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352413962
1 NR
5.1x2.8x5.3 [cm]
42.8 [g]
Barcode Qty 10 NR
8007352413979
10 NR
14.4x11.6x6 [cm]
471.2 [g]
Barcode Qty 120 NR
8007352626485
120 NR
36.5x33x13.5 [cm]
5,064 [g]
问题: Can the product be fully opened by pressing the push button once?
回答: Yes. Upon pressure, the product even remains on after you release it, allowing the continuous closure of the circuit to which it is connected without having to hold it down.
