Axial 1P 16AX reversing switch 2M grey - 19113.2

Pdf

19113.2
Wiring devices / Traditional wiring devices / ARKÉ / Devices

Axial 1P 16AX reversing switch 2M grey
Axial 1P 16 AX 250 V~ reversing switch, lightable, replaceable button, grey - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

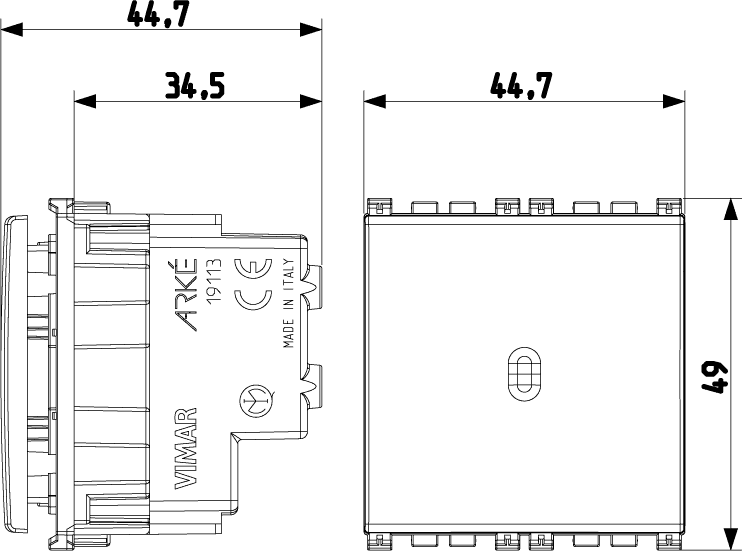

Device width
44,80 mm
Device height
49,00 mm
Device depth
44,70 mm
Built-in depth
34,50 mm

00. CE Marking - EU

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352459069
1 NR
5.1x4.8x5.3 [cm]
49.3 [g]
Barcode Qty 10 NR
8007352459076
10 NR
24.7x11x6.2 [cm]
557.4 [g]
