19196.B

Arké white / Devices / Relay switches

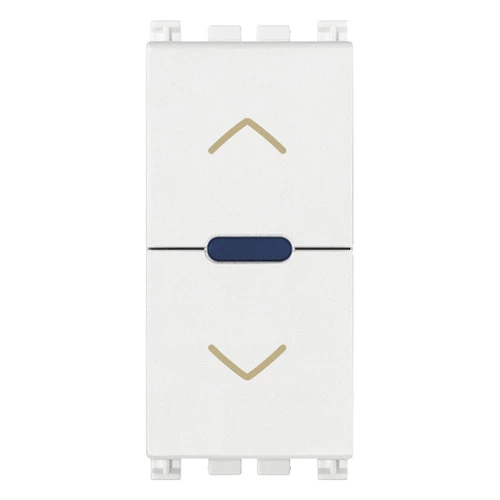

Quid - Rolling shutters 2-way switch whi
Quid electronic switch for centralised operation of roller shutter with slat orientation with relay outputs for cosφ 0.6 motor 2 A 220-240 V~ 50/60 Hz, position saving, white

产品状态
3 - Active

您可能也感兴趣

03992 - Quid - Step relay module 10A+reset

03997 - Quid rolling shutters module

单, 说明书, 文档

图纸

PNG DXF

Class group
Domestic switching devices

Class
Push-switch button

Assembly arrangement
Modular device for domestic switching devices

Model
Group push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
1

Number of poles
2

Rated current
5,00 A

With lighting
Yes

Feedback-signal contact
No

Mounting method
Flush mounted (plaster)

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
White

RAL-number (similar)
9016

Transparent
No

Label space/information surface
Yes

Height of device
49,00 mm

Depth of device
50,70 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352623095

1 NR

5.1x4.3x5.3 [cm]

45.4 [g]

8007352623101

10 NR

26.9x11.6x4.9 [cm]

475 [g]

8007352623743

200 NR

47.5x27x29 [cm]

9,620 [g]
