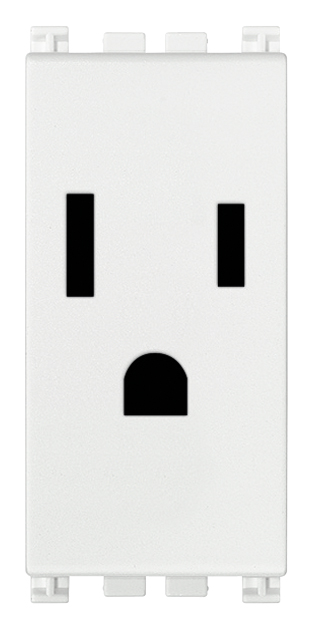

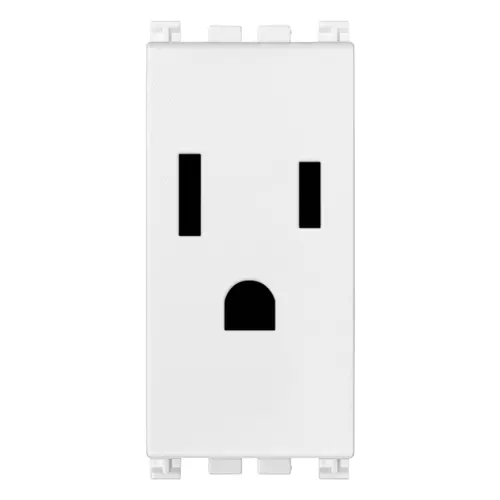

2P+E 15A 127V USA outlet white - 19245.B

19245.B

Arké white / Devices / Other standards socket outlets

2P+E 15A 127V USA outlet white
2P+E 15 A 127 V~ socket outlet, American and Saudi Arabian standards, white

产品状态
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
American National Standard
With built-in USB power supply
No
Number of units
1
Number of modules (module syst
1
Number of socket outlets switc
0
Imprint/indication
Without imprint

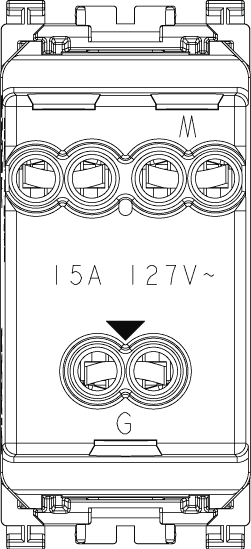

Connection type
Screwed terminal
With hinged lid
No
With child-protection
No
Label space/information surfac
Yes
Colour
White
RAL-number (akin)
9016
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
127 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protect
IP20
For heavy conditions (in accor
No
Impact strength
Other

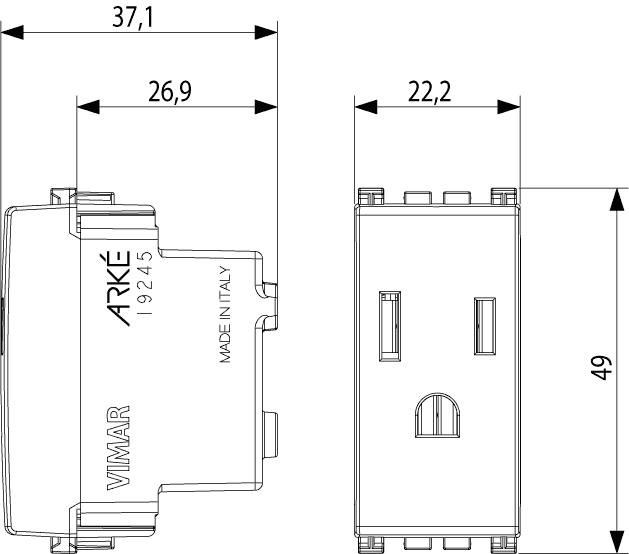

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
37,10 mm
最小订单数量: 20 NR

条形码

8007352471184
1 NR
4.1x2.8x5.3 [cm]
28.7 [g]
8007352471191
20 NR
21.4x11.6x6 [cm]
631.9 [g]
