TV-FM-SAT single conn. 3outs white - 19303.B

Pdf

19303.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

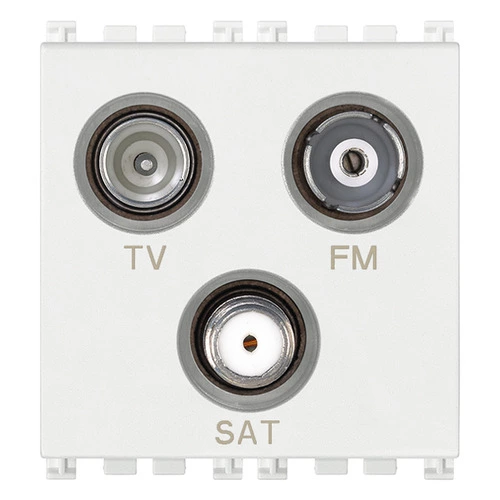

TV-FM-SAT single conn. 3outs white
Coaxial TV-FM radio-SAT 5-2400 MHz socket outlet, single connection, demix, 3 outputs with TV male and female FM radio and F-type (SAT) connectors, connection attenuation 1 dB, white - 2 modules. Allows the passage of d.c. current and control signals (24 V 500 mA max) through the female connector

产品状态
3 - Active

Class group
Antenna and satellite technique
Class
Antenna socket box
Model
End socket
Cover
None
Tap loss at 860 MHz
1,80 dB
Tap loss at 2150 MHz
1,30 dB
Number of outlets
3
Suitable for remote power supply
Yes
Type of fastening
Snap mounting (engagement)
Colour
White
RAL-number (similar)
9016
Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

最小订单数量: 5 NR

条形码

Barcode Qty 1 NR
8007352455832
1 NR
5.1x4.3x5.3 [cm]
82.4 [g]
Barcode Qty 5 NR
8007352455849
5 NR
14.4x11.6x6 [cm]
460.9 [g]
