1P+N C6 120-230V CB Metal - 19405.06.M

Pdf
19405.06.M

Arké Metal / Devices / Current breaker switches (CBs)

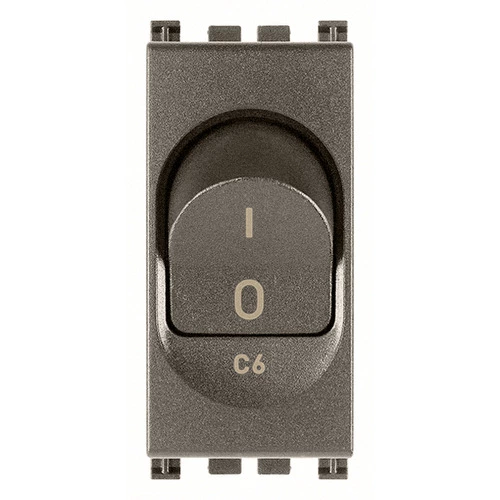

1P+N C6 120-230V CB Metal
1P+N C 6 circuit breaker, supply voltage 120-230 V~ 50-60 Hz, breaking capacity 1500 A, Metal

产品状态
3 - Active

Class group
Circuit breakers and fuses
Class
Earth leakage circuit breaker
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 v
Rated current
6 A
Rated fault current
6 A
Leakage current type
A
Current limiting class
1
Rated short-circuit breaking capacity Icn according to EN 61009-1
1,50 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
3
Built-in depth
38,00 mm
Flush-mounted installation
Yes
Anti-nuisance tripping version
No
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352600621
1 NR
6x2.8x5.3 [cm]
55.7 [g]
Barcode Qty 10 NR
8007352602304
10 NR
14.4x13.1x6 [cm]
605.7 [g]
