Frame 1M +claws

Pdf

19601
Wiring devices / Traditional wiring devices / ARKÉ / Mounting frames

Frame 1M +claws

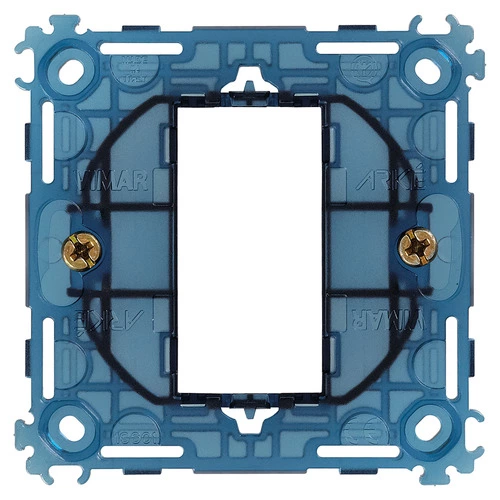

1-module mounting frame, with claws, for ø 60 mm mounting boxes

The transparency helps the installation and the wiring of devices
The honeycomb structure gives structural strength
The slots in the corners enable fixing to the panel
The hooking teeth encourage fixing in series for the installation of multiple modules

产品状态
3 - Active

视频

Arké lives in your time

图纸

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with claw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
1

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
Yes

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

29. QCERT - Colombia

43. UKCA mark - Great Britain

96. Electrotechnical expert

最小订单数量: 20 NR

条形码

8007352433441

1 NR

7.4x7.4x2.5 [cm]

24 [g]

8007352433458

20 NR

24.4x13.9x10.1 [cm]

562.2 [g]

8007352644458

80 NR

30.5x26x22 [cm]

2,804 [g]

问题：	Is the product compatible for assembly with mounting frame 19601 and cover plate 19641.74?
回答：	Yes, article 19006.B is compatible with assembly on mounting frame 19601 and cover plate 19641.74.
