Frame 2M +claws 71mm - 19602

Pdf

19602
Wiring devices / Traditional wiring devices / ARKÉ / Mounting frames

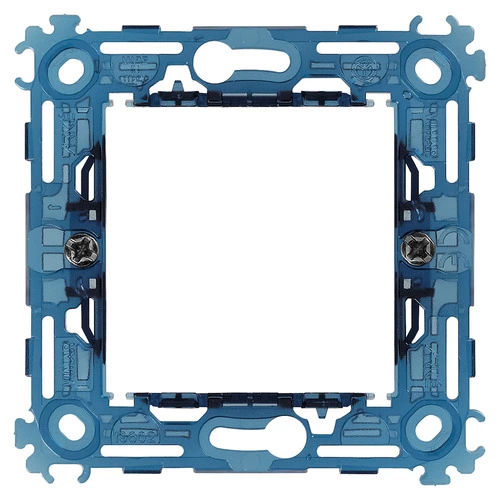

Frame 2M +claws 71mm
2-module mounting frame, with claws, for ø 60 mm mounting boxes, 71 mm distance between centres

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with claw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

50. Product Environm. Profile

最小订单数量: 50 NR

条形码

Barcode Qty 1 NR
8007352433465
1 NR
7.4x7.4x2.5 [cm]
17.8 [g]
Barcode Qty 50 NR
8007352433472
50 NR
28.4x24.4x11.9 [cm]
1,059 [g]
Barcode Qty 300 NR
8007352716544
300 NR
59.5x38.5x26.5 [cm]
6,354 [g]
