1P 16AX 2-way switch mechanism - 20005.0

Pdf

20005.0
Wiring devices / Traditional wiring devices / EIKON / Devices

1P 16AX 2-way switch mechanism
1P 16 AX 250 V~ 2-way switch mechanism, lightable, to complete with 1, 2 or 3-module button. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

图纸

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
7024
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No

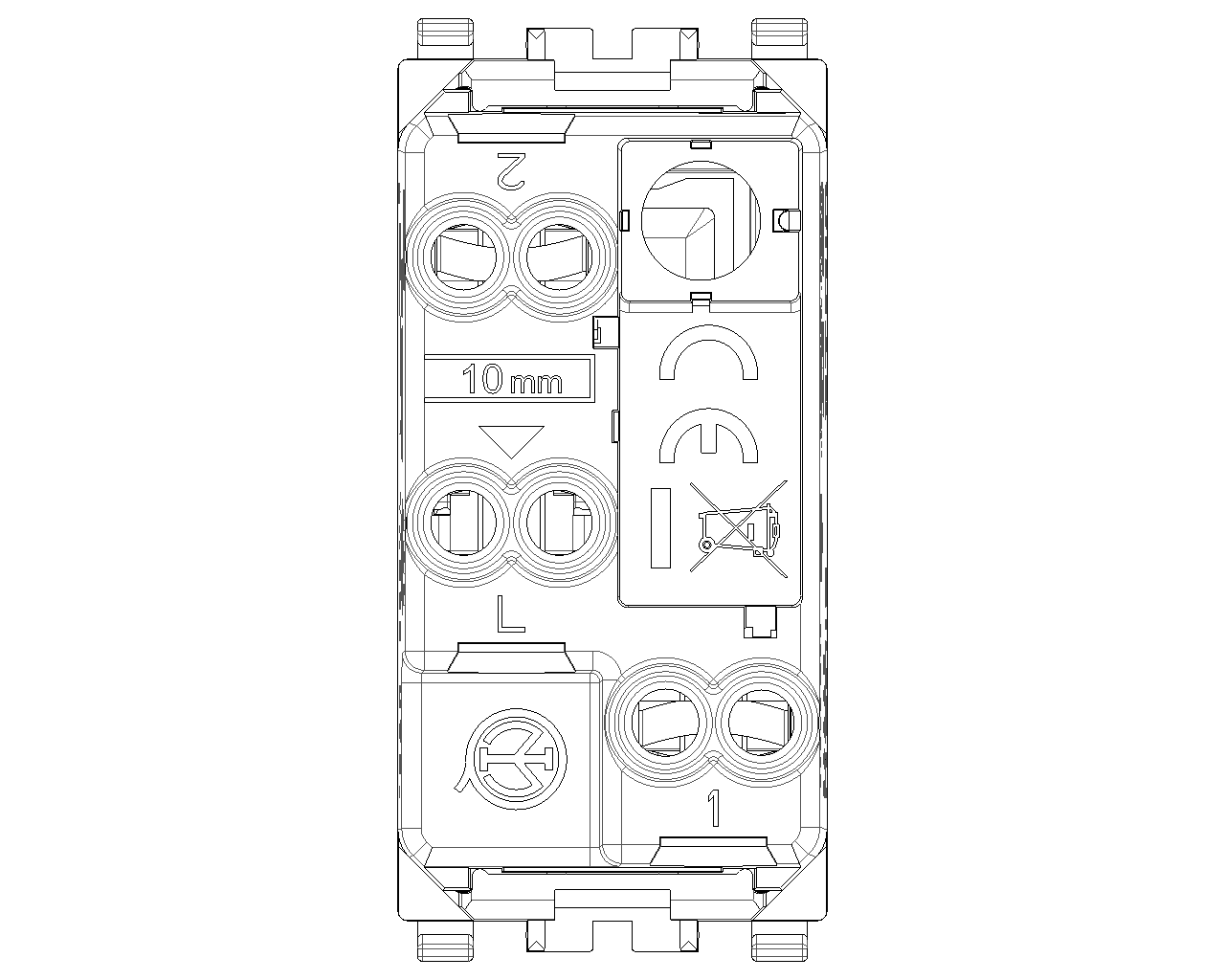

Connection type
Screwed terminal
Washing machine switch
No

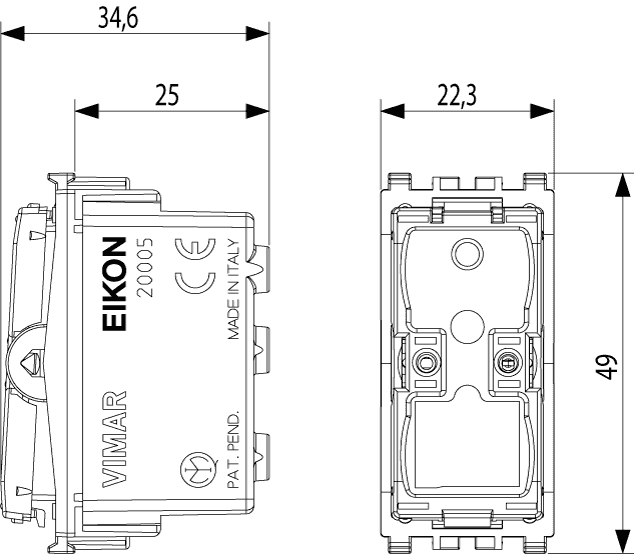

Device width
22,30 mm
Device height
49,00 mm
Device depth
34,60 mm
Built-in depth
25,00 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

20. IQC - Argentina

29. QCERT - Colombia

34. PSE - Japan

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352250604
1 NR
4.1x2.8x5.3 [cm]
26 [g]
Barcode Qty 20 NR
8007352250611
20 NR
21.4x11.6x6 [cm]
582.8 [g]
Barcode Qty 200 NR
8007352637061
200 NR
30.5x25.5x22.5 [cm]
6,140 [g]
