Vimar - 20007.B - Three 1P 20AX 2-way switches white

20007.B
Wiring devices / Traditional wiring devices / EIKON / Devices

Three 1P 20AX 2-way switches white
Three 1P 20 AX 250 V~ 2-way switches, white - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

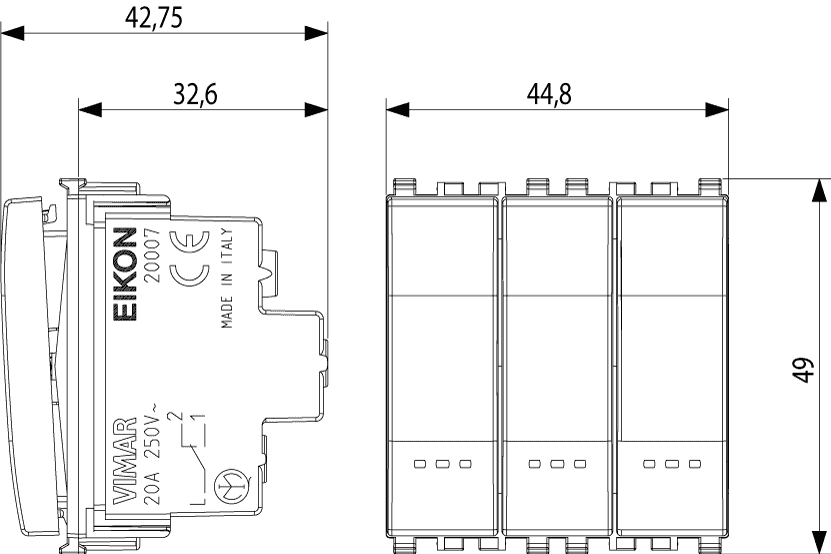

图纸

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Push button switch
Yes

Number of rockers
3

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
White

RAL-number (similar)
9016

Label space/information surface
Yes

Illumination
No

Function lighting
Other

Type of lighting
Other

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
20,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
44,80 mm

Device height
49,00 mm

Device depth
42,75 mm

Built-in depth
31,60 mm

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

19. NOM - Mexico

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 20 NR

条形码

8007352404489

1 NR

5.1x4.3x5.3 [cm]

71.45 [g]

8007352404496

20 NR

26.9x11.6x9 [cm]

1,510 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
