Three 1P 20AX 2-way switches Next - 20007.N

Pdf
Vimar - 20007.N - Three 1P 20AX 2-way switches Next
Vimar - 20007.N - Three 1P 20AX 2-way switches Next

20007.N
Wiring devices / Traditional wiring devices / EIKON / Devices

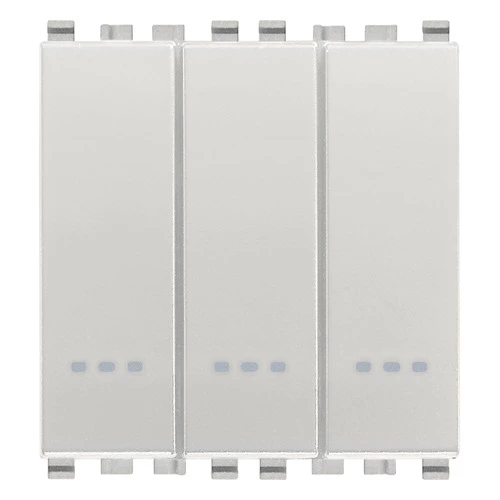

Three 1P 20AX 2-way switches Next
Three 1P 20 AX 250 V~ 2-way switches, Next - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
3
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44,80 mm
Device height
49,00 mm
Device depth
42,75 mm
Built-in depth
31,60 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

15. CCC - China

19. NOM - Mexico

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352404502
1 NR
5.1x4.3x5.3 [cm]
71.45 [g]
Barcode Qty 20 NR
8007352404519
20 NR
26.9x11.6x9 [cm]
1,510 [g]
