20013.2.B
Wiring devices / Traditional wiring devices / EIKON / Devices

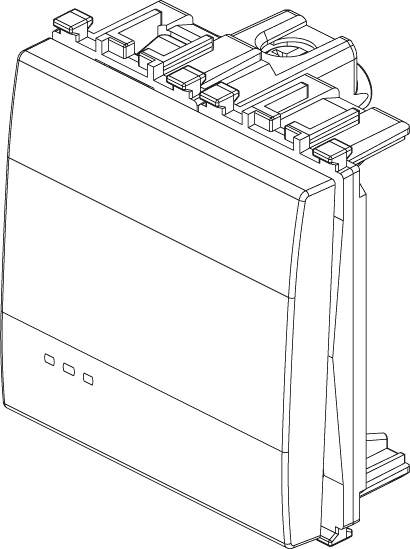

1P 16AX reversing-switch 2M white
1P 16 AX 250 V~ reversing switch, lightable, replaceable button, white - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)
产品状态
3 - Active
图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Intermediate switch
Intermediate switch
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
2
2
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
RAL-number (similar)
9016
9016
Label space/information surface
Yes
Yes
Lighting
Optional
Optional
Function lighting
Control and orientation
Control and orientation
Type of lighting
LED exchangeable
LED exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Nominal voltage
250 V
250 V
Rated current
16,00 A
16,00 A
Monitoring contact
No
No

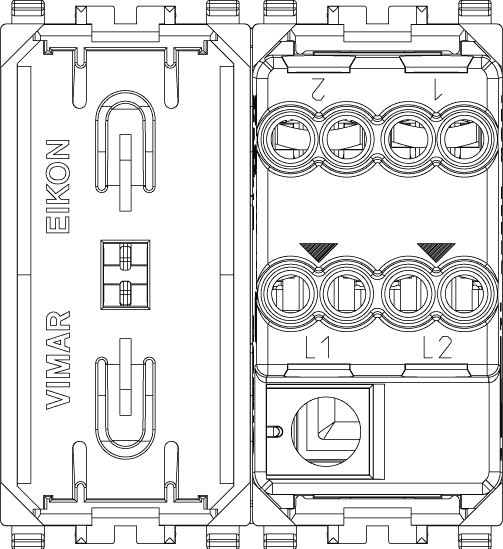

Connection type
Screwed terminal
Screwed terminal
Washing machine switch
No
No

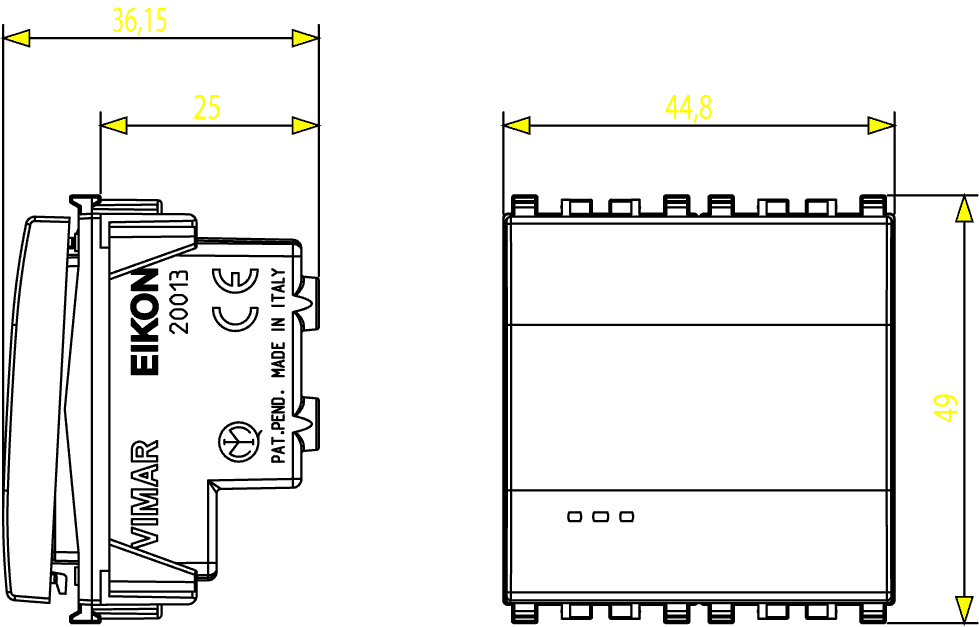

Device width
44,80 mm
44,80 mm
Device height
49,00 mm
49,00 mm
Device depth
36,15 mm
36,15 mm
Built-in depth
25,00 mm
25,00 mm
00. CE Marking - EU
01. IMQ - Italy
11. SNI-SUCOFINDO Indonesia
13. SNI-MGI - Indonesia
14. TSE - Turkey
19. NOM - Mexico
29. QCERT - Colombia
31. TISI - Thailand
36. ISI - India
37. Marking - Morocco
最小订单数量: 20 NR
条形码
8007352316522
1 NR
5.1x4.3x5.3 [cm]
41.8 [g]
8007352316539
20 NR
26.9x11.6x9 [cm]
922.4 [g]
8007352756410
240 NR
38x28.5x35.5 [cm]
11,608.8 [g]
