20016.0
Wiring devices / Traditional wiring devices / EIKON / Devices

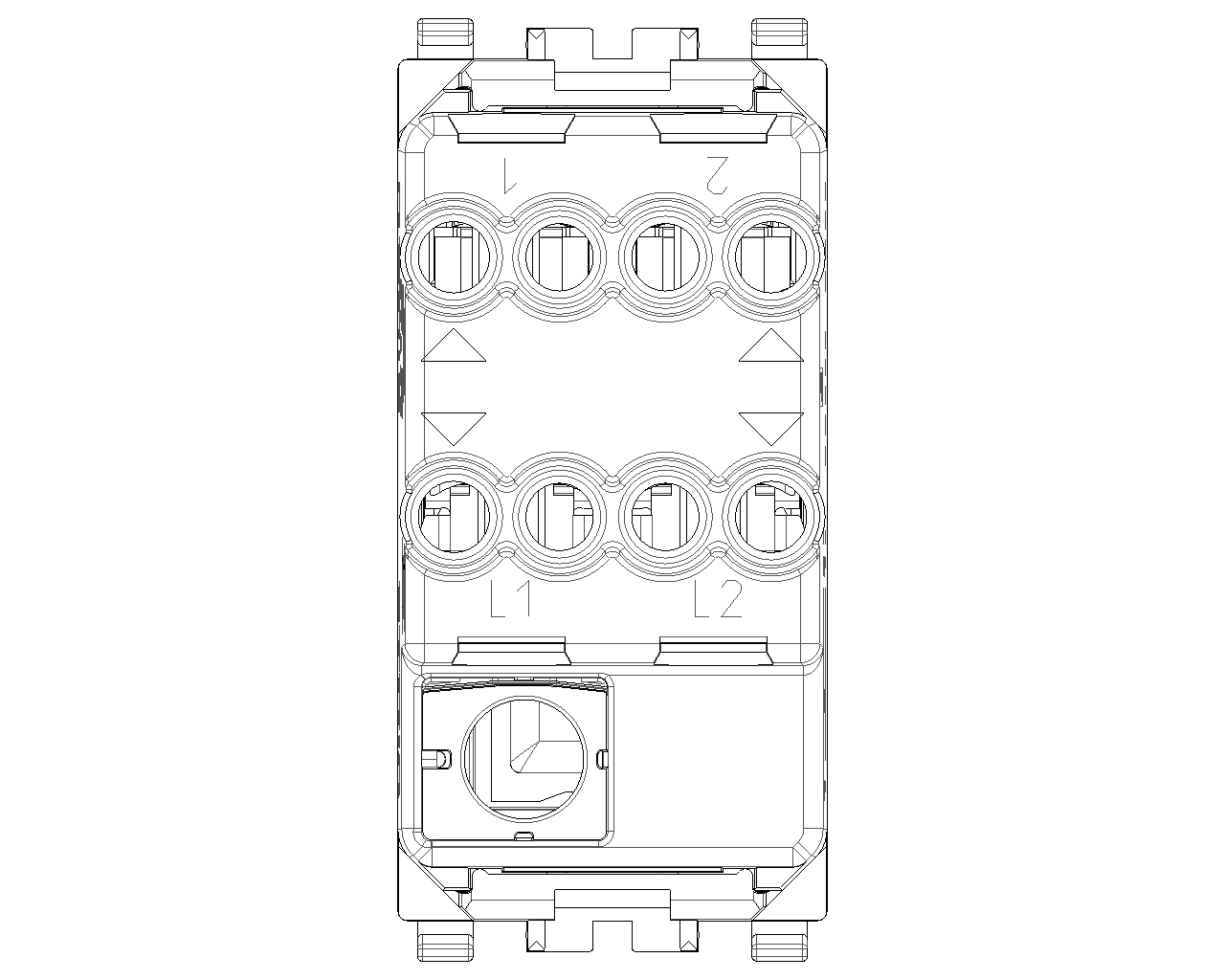

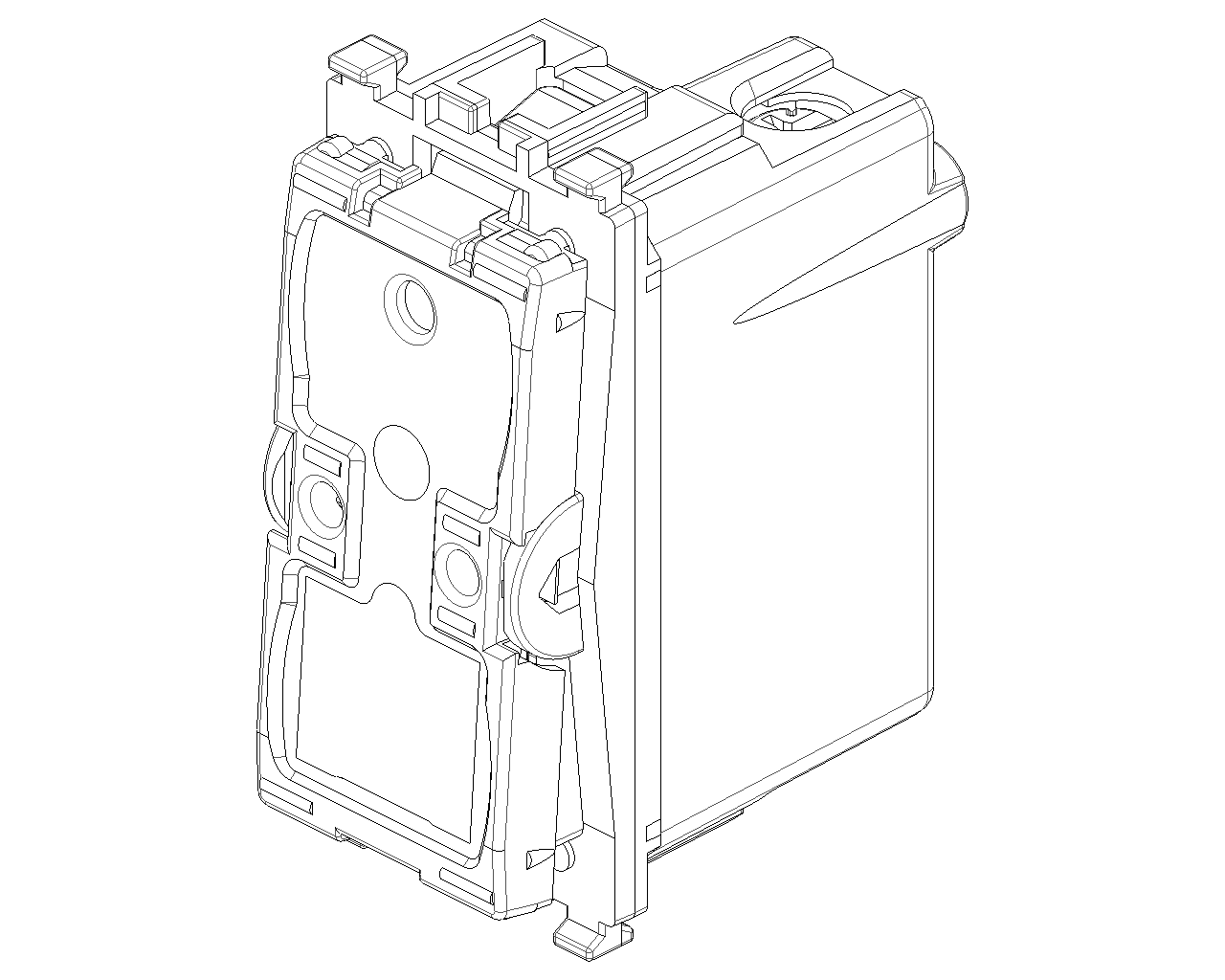

2P 20AX 1-way switch mechanism
2P 20 AX 250 V~ 1-way switch mechanism, lightable, to complete with 1, 2 or 3-module button. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)
产品状态
3 - Active
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
2-pole switch
2-pole switch
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Anthracite
Anthracite
RAL-number (similar)
7024
7024
Label space/information surface
Yes
Yes
Illumination
Optional
Optional
Function lighting
Control and orientation
Control and orientation
Type of lighting
LED exchangeable
LED exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Nominal voltage
250 V
250 V
Rated current
20,00 A
20,00 A
Feedback-signal contact
No
No
Connection type
Screwed terminal
Screwed terminal
Washing machine switch
Yes
Yes

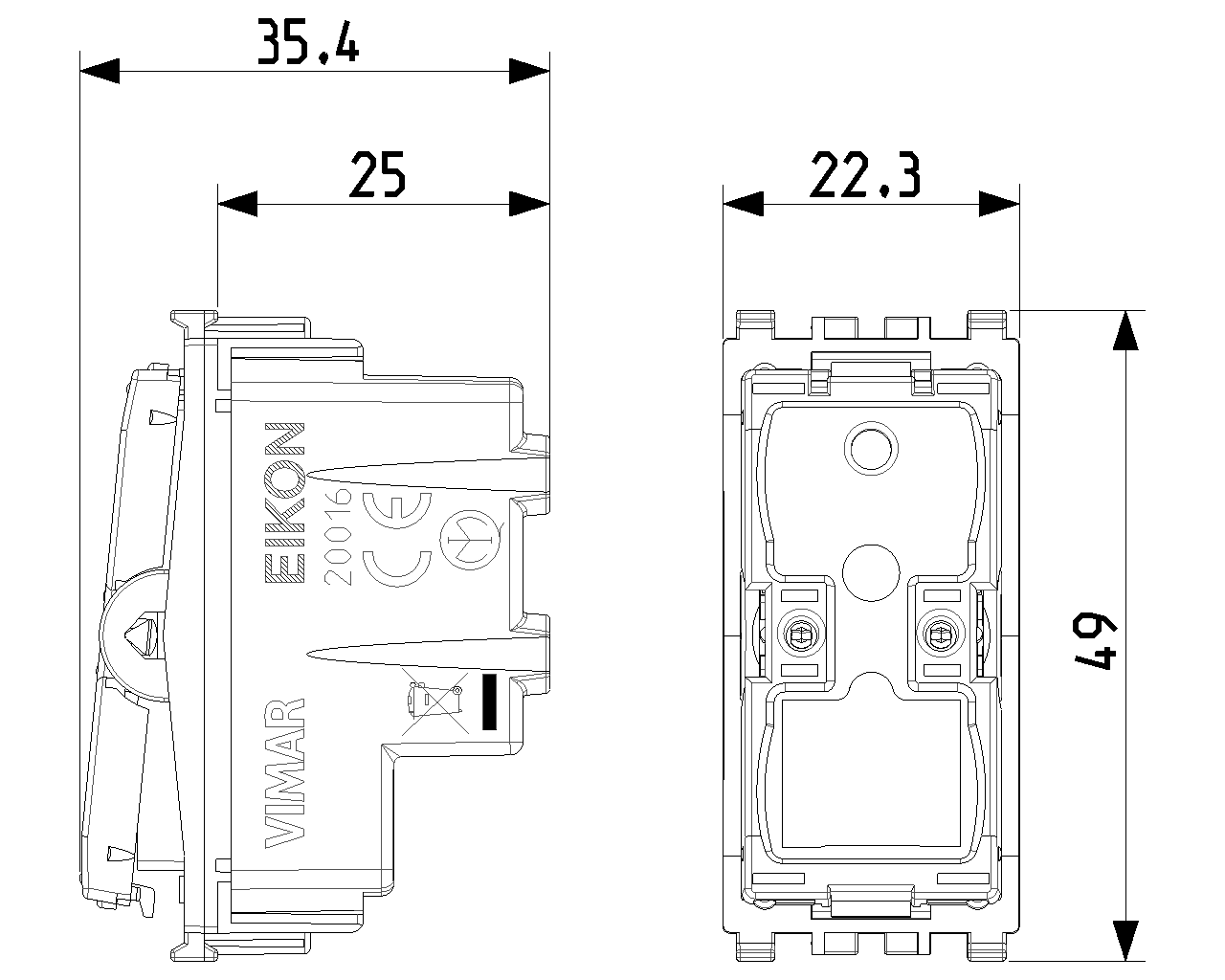

Device width
22,30 mm
22,30 mm
Device height
49,00 mm
49,00 mm
Device depth
34,60 mm
34,60 mm
Built-in depth
25,00 mm
25,00 mm
00. CE Marking - EU
36. ISI - India
37. Marking - Morocco
92. RoHS UAE
最小订单数量: 10 NR
条形码
8007352404960
1 NR
4.1x2.8x5.3 [cm]
30.7 [g]
8007352404977
10 NR
14.4x9x6 [cm]
342.5 [g]
8007352641747
160 NR
37.5x30x13.5 [cm]
5,832 [g]
