20016.2.WH.N
Wiring devices / Traditional wiring devices / EIKON / Devices

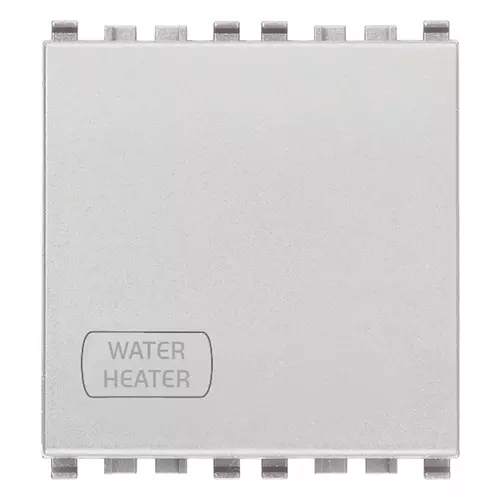

2P20AX 1-way switch WATER/HEATER 2M Next
2P 20 AX 250 V~ 1-way switch, lightable, replaceable button, WATER/HEATER symbol, Next - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)
产品状态
3 - Active

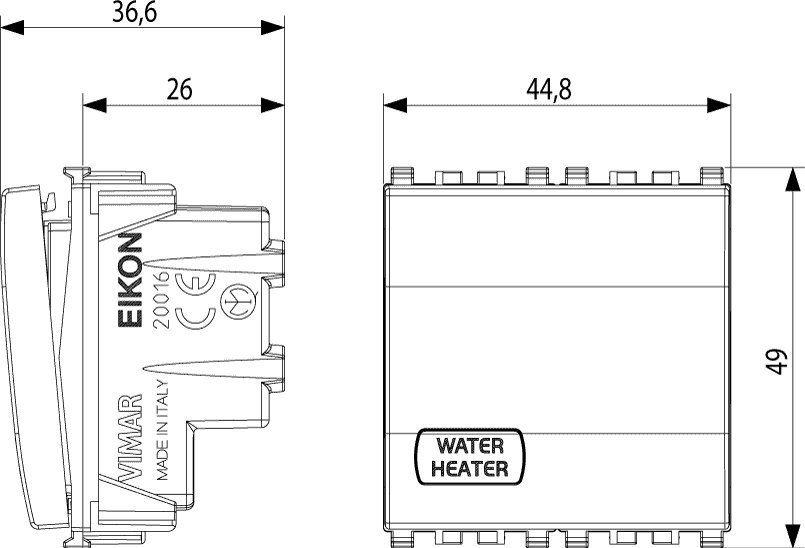

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
2-pole switch
2-pole switch
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
2
2
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Lacquered
Lacquered
Surface finishing
Matt
Matt
Colour
Silver
Silver
RAL-number (similar)
9022
9022
Label space/information surface
Yes
Yes
Lighting
Optional
Optional
Function lighting
Control and orientation
Control and orientation
Type of lighting
LED exchangeable
LED exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Nominal voltage
250 V
250 V
Rated current
20,00 A
20,00 A
Monitoring contact
No
No
Connection type
Screwed terminal
Screwed terminal
Washing machine switch
Yes
Yes
Device width
44,80 mm
44,80 mm
Device height
49,00 mm
49,00 mm
Device depth
36,10 mm
36,10 mm
Built-in depth
25,00 mm
25,00 mm
00. CE Marking - EU
01. IMQ - Italy
31. TISI - Thailand
36. ISI - India
37. Marking - Morocco
92. RoHS UAE
最小订单数量: 20 NR
条形码
8007352405080
1 NR
5.1x4.3x5.3 [cm]
41.3 [g]
8007352405097
20 NR
26.9x11.6x9 [cm]
906.4 [g]
