2P 32A 1-way switch WATER/HEATER Next - 20017.WH.N

20017.WH.N

Eikon Next / Devices / Basic devices

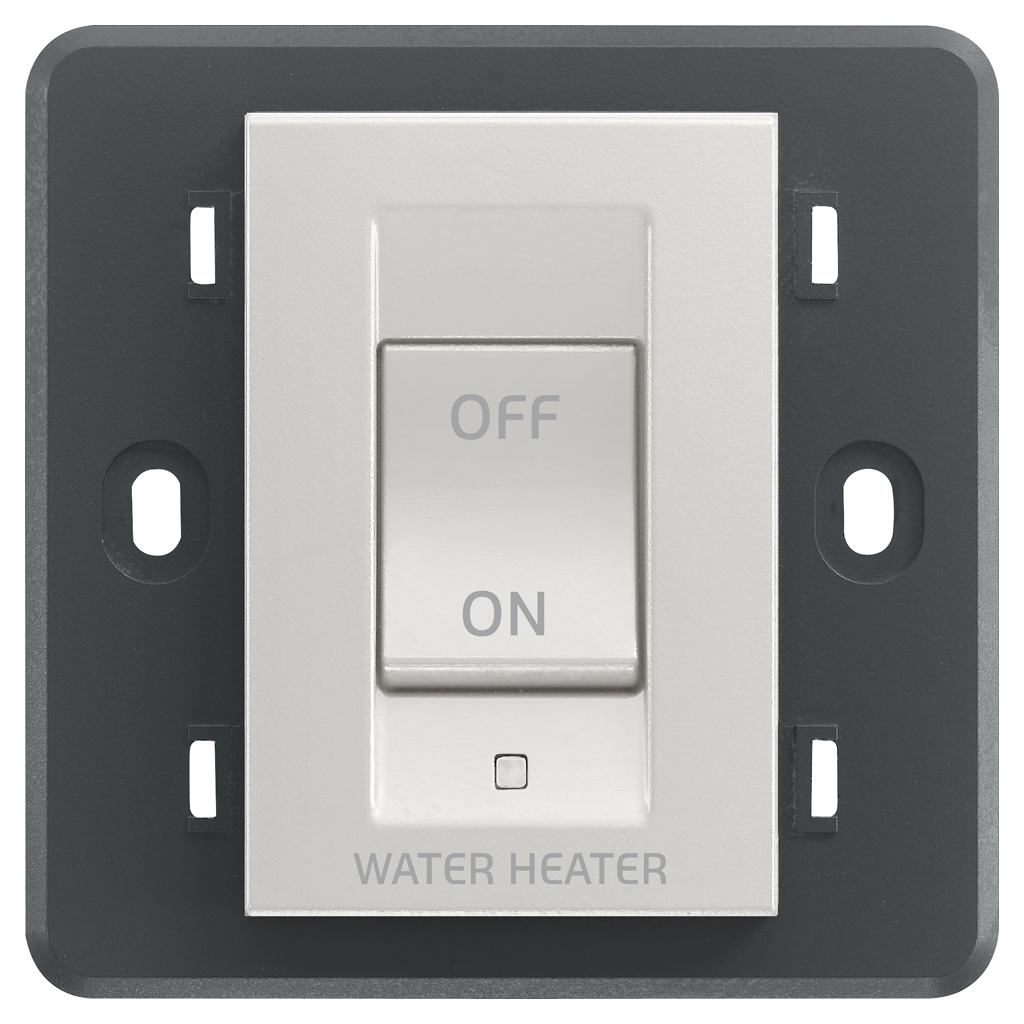

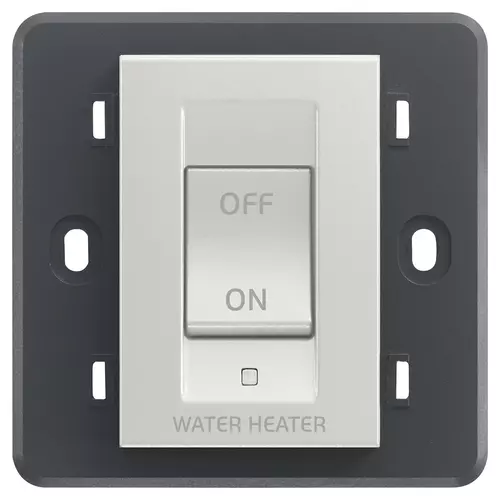

2P 32A 1-way switch WATER/HEATER Next
2P 32 A 250 V~ 1-way switch, lightable, WATER/HEATER symbol, with built-in frame for installation in square British standard mounting boxes, to complete with 3-module British standard cover plate, Next. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

产品状态
3 - Active

Class group
Domestic switching devices
Class
Switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module syst
3
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Screw mounting
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (akin)
9022
Label space/information surfac
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
Not included
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
32 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Width of device
82,50 mm
Height of device
82,50 mm
Depth of device
32,50 mm
Built-in depth
22,50 mm
最小订单数量: 10 NR

条形码

8007352406681
1 NR
8.5x3.9x8.6 [cm]
114.8 [g]
8007352406698
10 NR
20.7x18.5x9.6 [cm]
1,246 [g]
