Vimar - 20018.CK.N - 2P 45A 1-way switch COOKER 3M Next

20018.CK.N

Eikon Next / Devices / Basic devices

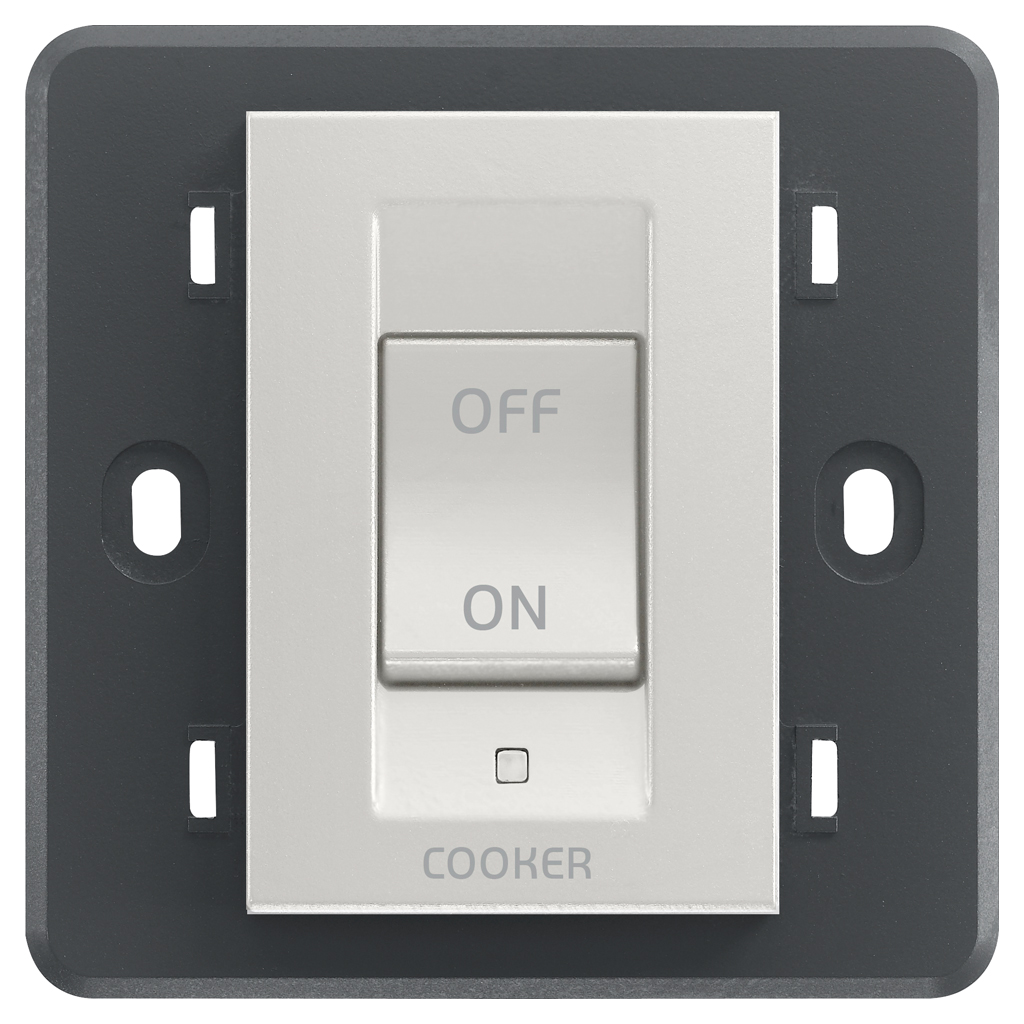

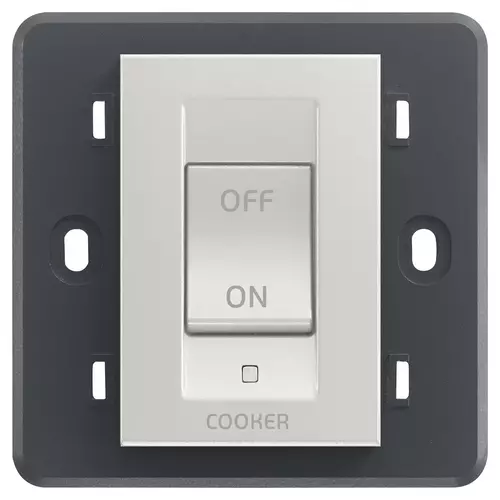

2P 45A 1-way switch COOKER 3M Next
2P 45 A 250 V~ 1-way switch, lightable, COOKER symbol, with built-in frame for installation in square British standard mounting boxes, to complete with 3-module British standard cover plate, Next. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

产品状态
3 - Active

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
2-pole switch

Method of operation
Rocker/button

Assembly arrangement
Other

Number of modules (module system)
3

Push button switch
Yes

Number of rockers
1

Mounting method
Flush mounted (plaster)

Type of fastening
Screw mounting

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Matt

Colour
Silver

RAL-number (similar)
9022

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 v

Rated current
45,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
Yes

Width of device
82,50 mm

Height of device
82,50 mm

Depth of device
32,50 mm

Built-in depth
22,50 mm

00. CE Marking - EU

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352406780

1 NR

8.5x3.9x8.6 [cm]

114.6 [g]

8007352406797

10 NR

20.7x18.5x9.6 [cm]

1,248 [g]
