2P 45A 1-way switch Next - 20018.N

Pdf

20018.N
Wiring devices / Traditional wiring devices / EIKON / Devices

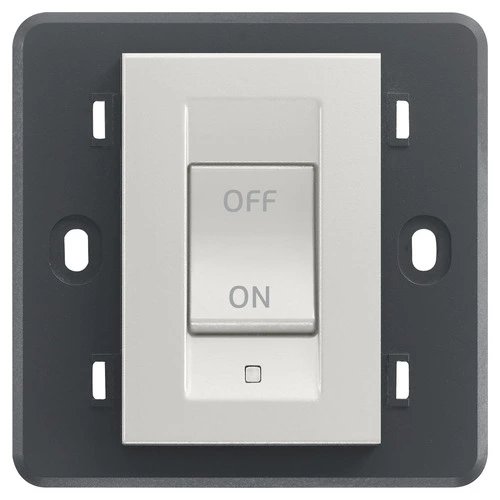

2P 45A 1-way switch Next
2P 45 A 250 V~ 1-way switch, lightable, with built-in frame for installation in square British standard mounting boxes, to complete with 3-module British standard cover plate, Next. Max 200 W for integrated ballast lamps (IEC 60669-1:2017)

产品状态
3 - Active

图纸

Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module system)
3
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Screw mounting
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
45,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
82,50 mm
Device height
82,50 mm
Device depth
32,50 mm
Built-in depth
22,50 mm

00. CE Marking - EU

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352406803
1 NR
8.5x3.9x8.6 [cm]
114.6 [g]
Barcode Qty 10 NR
8007352406810
10 NR
20.7x18.5x9.6 [cm]
1,248 [g]
