13A switched/fused connection unit Next - 20049.L.N

Pdf
20049.L.N

Eikon Next / Devices / Devices - other functions

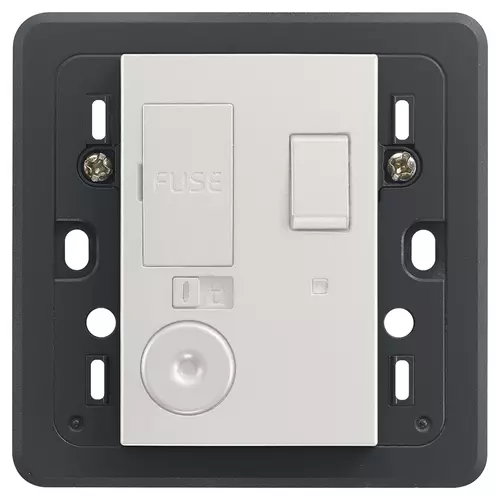

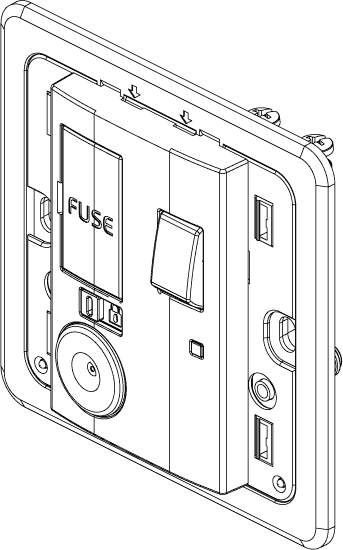

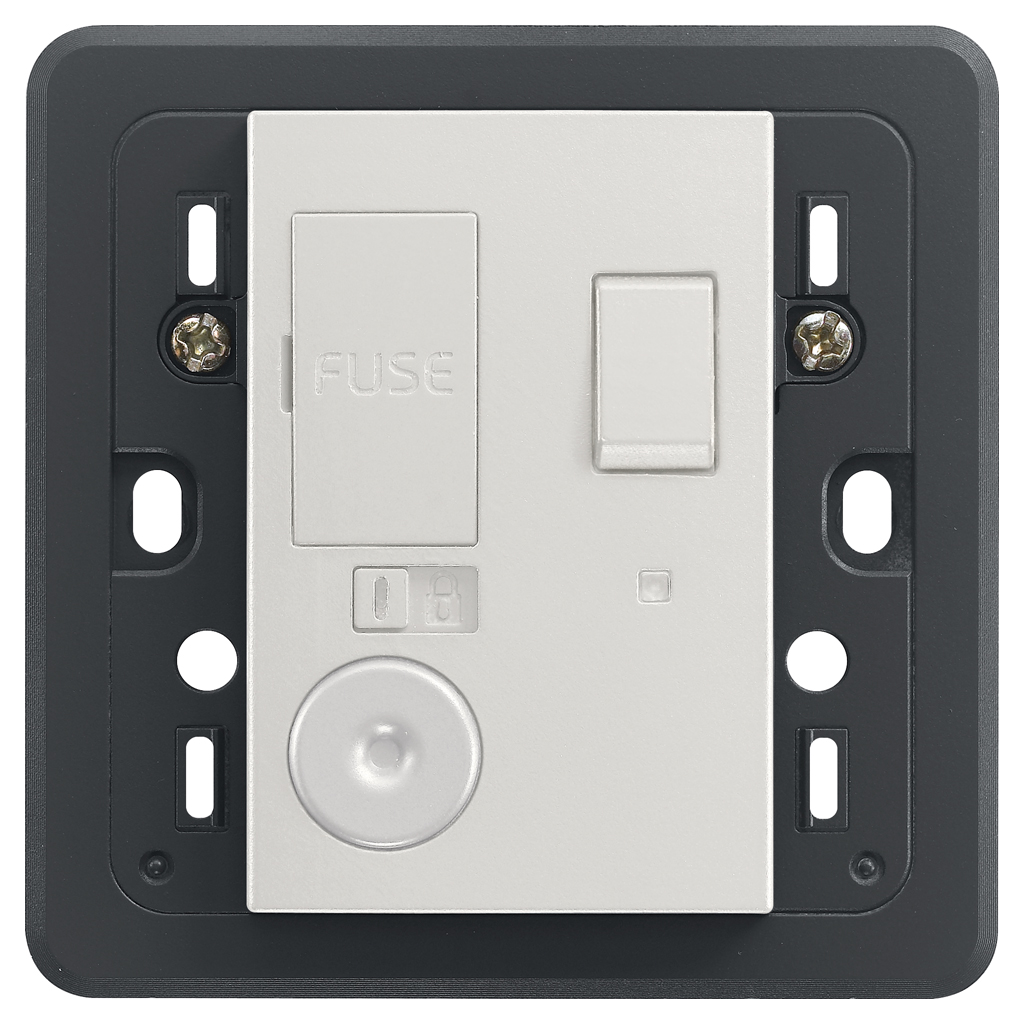

13A switched/fused connection unit Next
2P switched 13 A 250 V~ connection unit, protection fuse, with built-in mounting frame for installation in British standard square flush mounting boxes and to complete with 3-module British standard cover plates, Next

产品状态
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module system)
3
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Screw mounting
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
Yes
Function lighting
Illuminated (on)
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
13 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

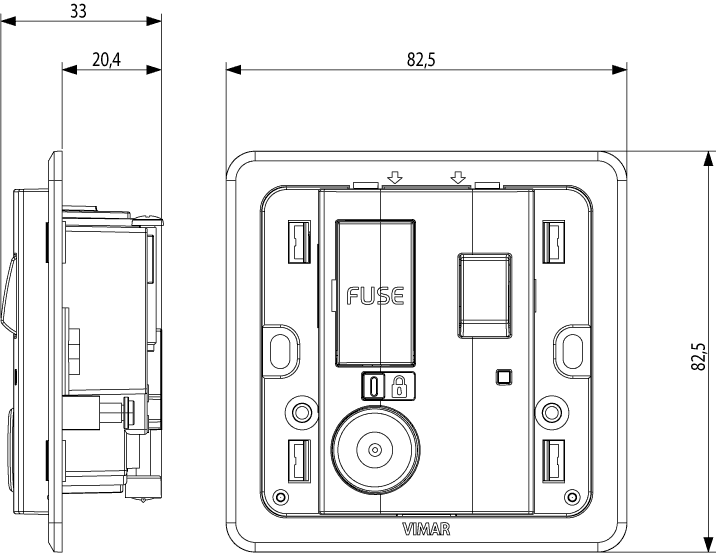

Width of device
82,50 mm
Height of device
82,50 mm
Depth of device
33,00 mm
Built-in depth
20,40 mm

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352406988
1 NR
8.5x3.9x8.6 [cm]
106.4 [g]
Barcode Qty 10 NR
8007352406995
10 NR
20.7x18.5x9.6 [cm]
1,162 [g]
