2P 10A 2-way push button grey

Pdf

Vimar - 20061 - 2P 10A 2-way push button grey

20061
Wiring devices / Traditional wiring devices / EIKON / Devices

2P 10A 2-way push button grey

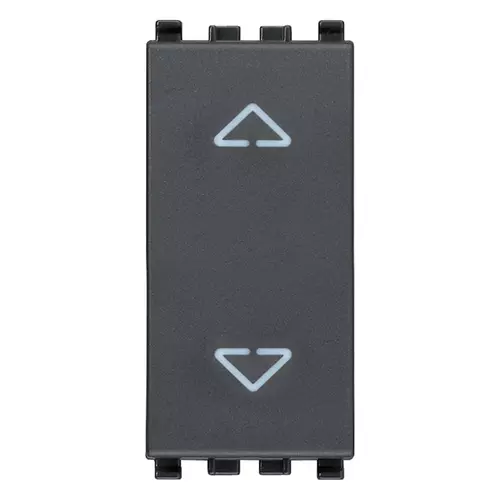

2P 10 A 250 V~ 2-way push button (6 terminals) with directional arrows and central OFF position, grey

产品状态
3 - Active

图纸

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
2

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
43,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

20. IQC - Argentina

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352571211

1 NR

5.1x2.8x5.3 [cm]

42.6 [g]

8007352571228

10 NR

14.4x11.6x6 [cm]

470.7 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
