2P 10A 2-way push button white - 20061.B

20061.B

Eikon white / Devices / Devices - other functions

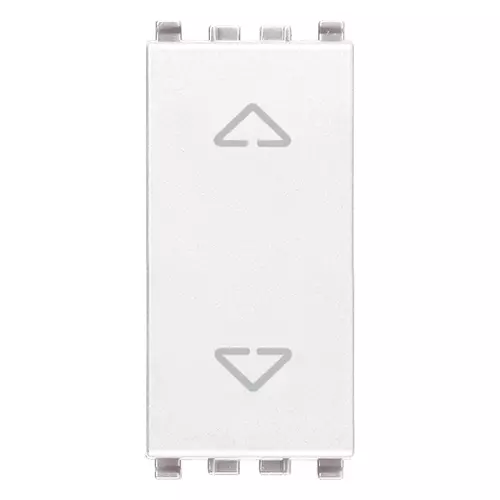

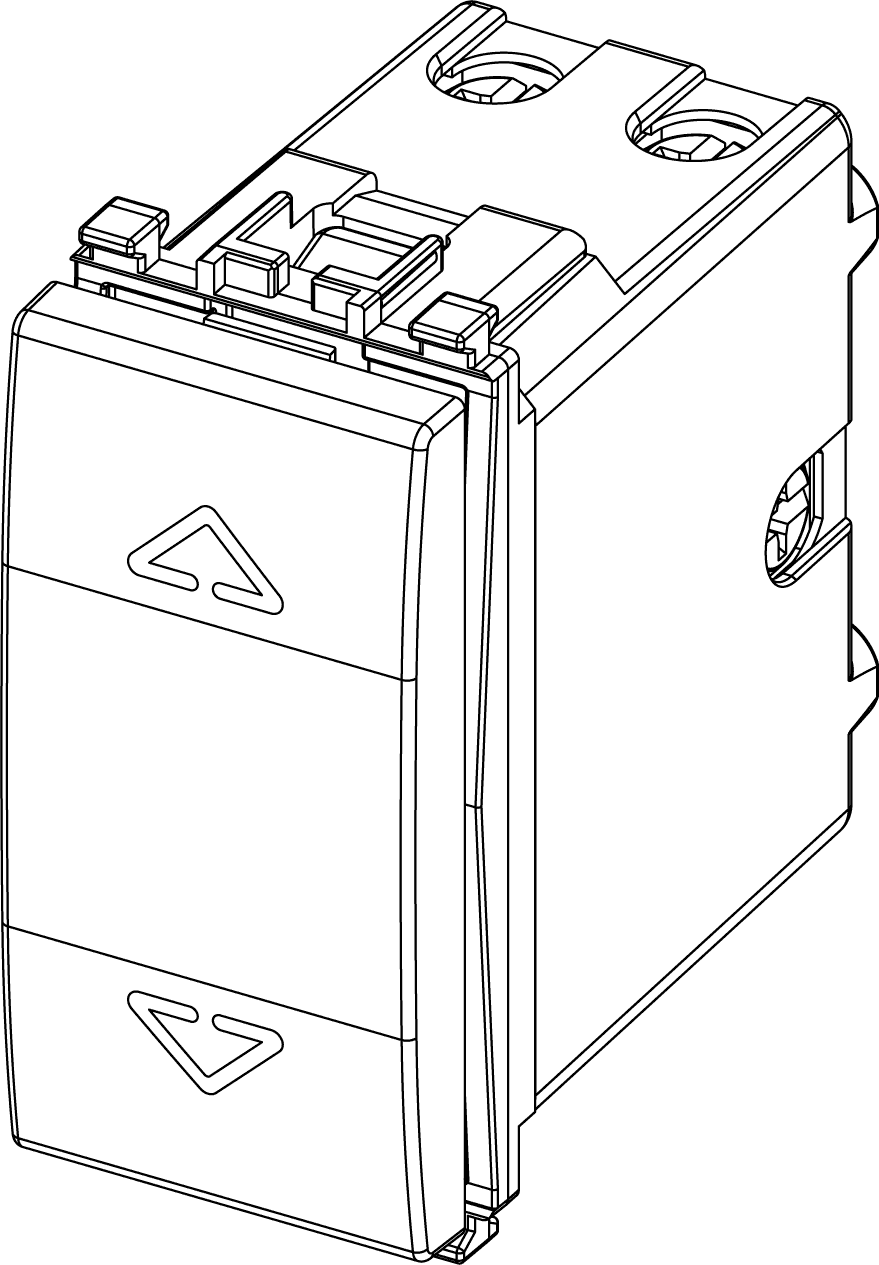

2P 10A 2-way push button white
2P 10 A 250 V~ 2-way push button (6 terminals) with directional arrows and central OFF position, white

产品状态
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Contacts
2 change-over contacts
Number of poles
2
Feedback-signal contact
No
Number of rockers
1
Number of modules (module syst
1
With lighting
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (akin)
9016
Transparent
No
Label space/information surfac
Yes
Suitable for degree of protect
IP40
Rated current
10,00 A
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
43,50 mm
最小订单数量: 10 NR

条形码

8007352571235
1 NR
5.1x2.8x5.3 [cm]
42.8 [g]
8007352571242
10 NR
14.4x11.6x6 [cm]
471.4 [g]
