Vimar - 20068.V.B - 1P NO 10A push +green indicator white

20068.V.B
Wiring devices / Traditional wiring devices / EIKON / Devices

1P NO 10A push +green indicator white

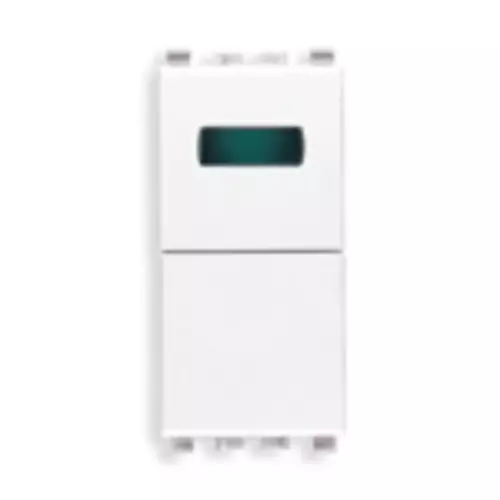

1P NO 10 A 250 V~ push button + indicator unit for signalling unit, green diffuser, white. Provided without signalling unit

产品状态
2 - Will be discontinued

图纸

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
White

RAL-number (similar)
9016

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
38,50 mm

00. CE Marking - EU

14. TSE - Turkey

29. QCERT - Colombia

37. Marking - Morocco

最小订单数量: 10 NR

条形码

8007352315778

1 NR

4.1x2.8x5.3 [cm]

31.4 [g]

8007352315785

10 NR

14.4x9x6 [cm]

348.53 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
