2P 16AX 1-way-switch +key in OFF white - 20082.B

20082.B

Eikon white / Devices / Devices - other functions

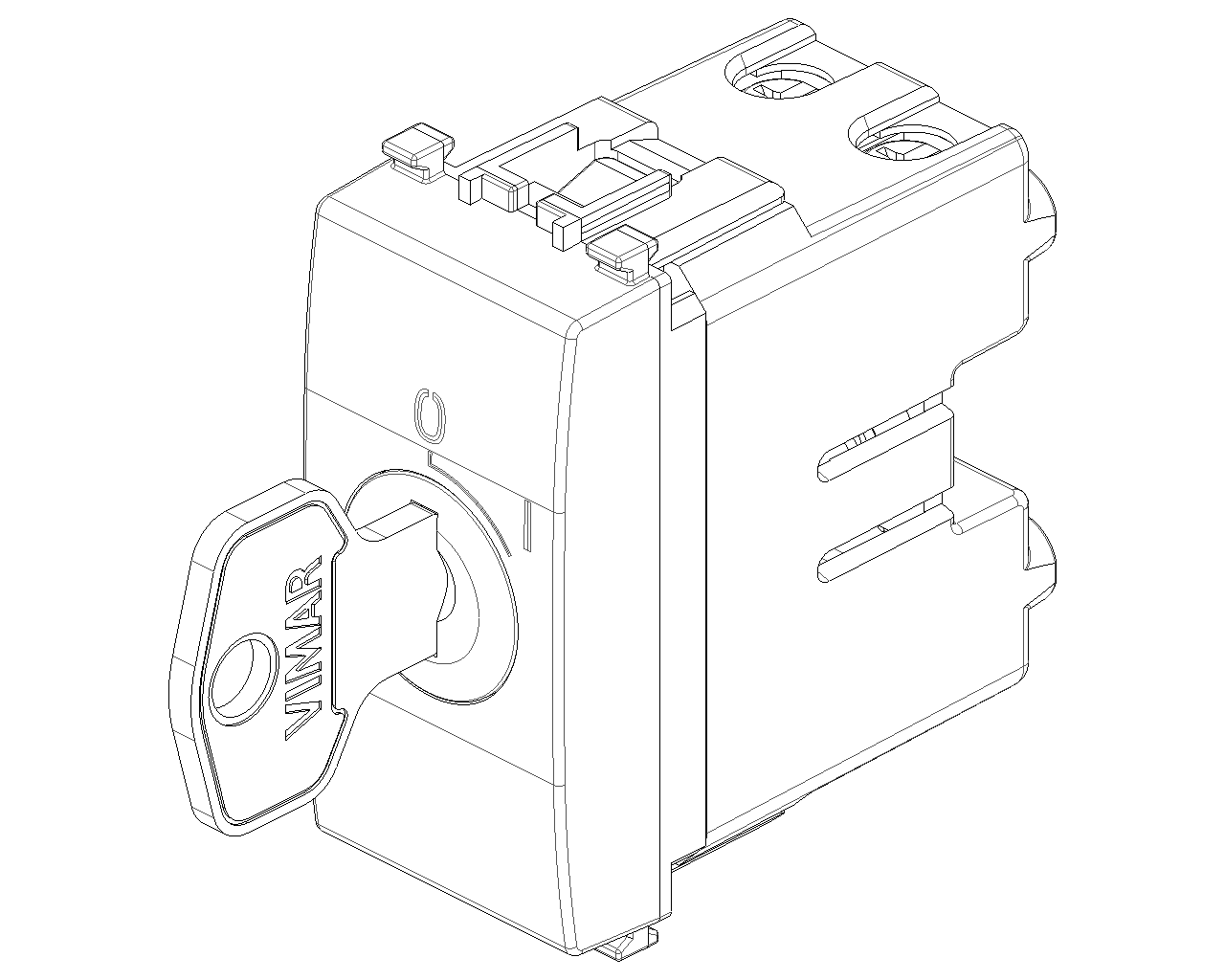

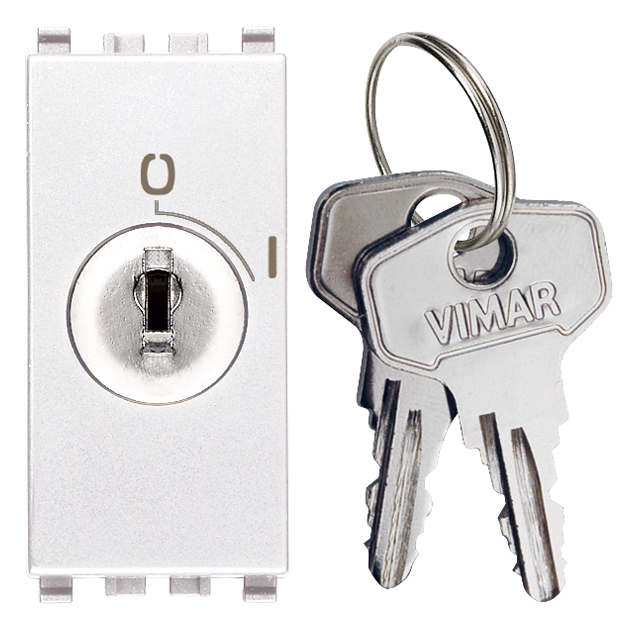

2P 16AX 1-way-switch +key in OFF white
2P 16 AX 250 V~ key-operated 1-way switch, key removable in OFF position only, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

Class group
Domestic switching devices
Class
Switch
Wiring system
2-pole switch
Method of operation
Key
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module syst
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (akin)
9016
Label space/information surfac
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
16 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes

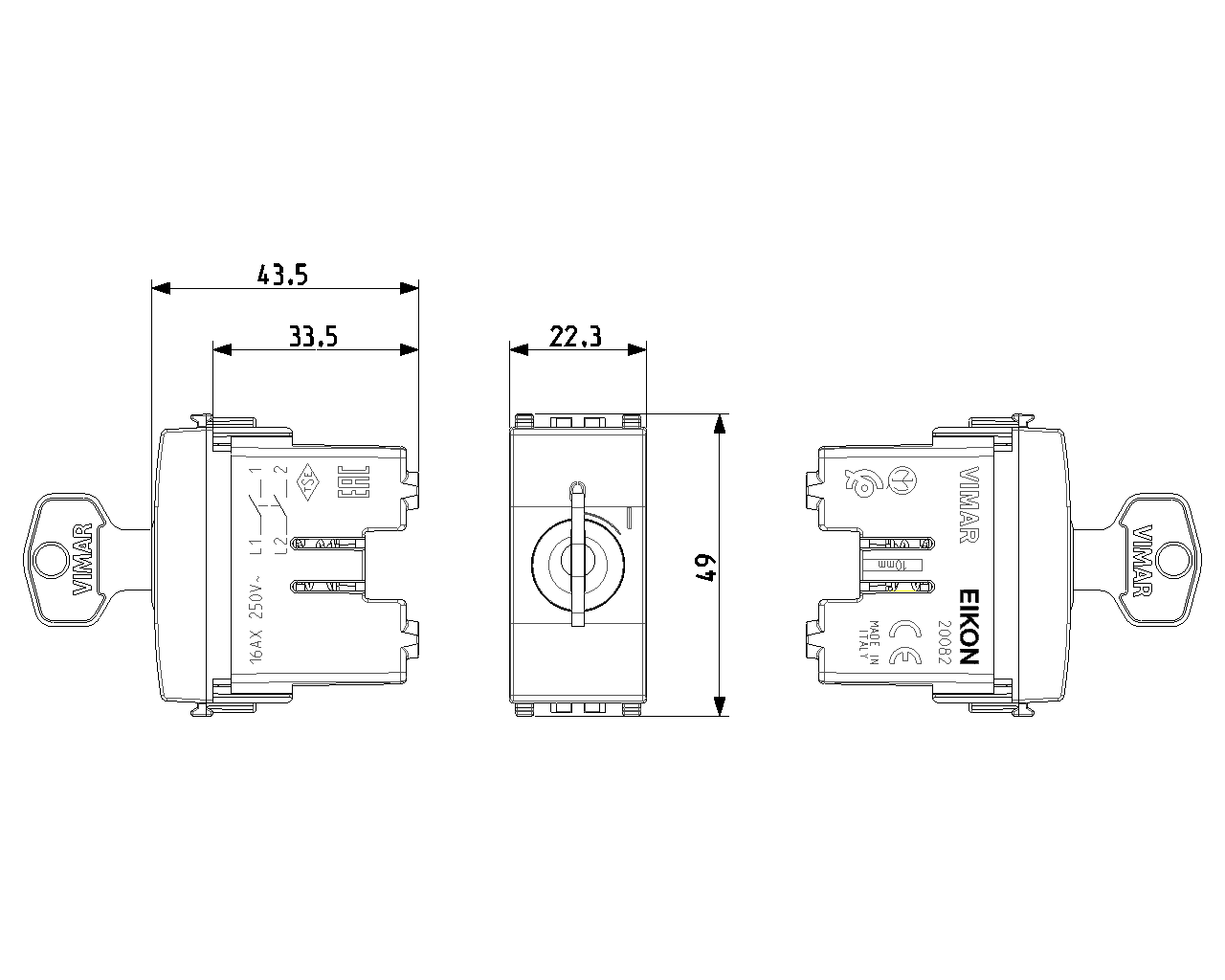

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
43,50 mm
Built-in depth
33,50 mm
最小订单数量: 10 NR

条形码

8007352315815
1 NR
5.1x2.8x5.3 [cm]
52.93 [g]
8007352315822
10 NR
14.4x11.6x6 [cm]
575.8 [g]
