20086

Eikon / Devices / Devices - other functions

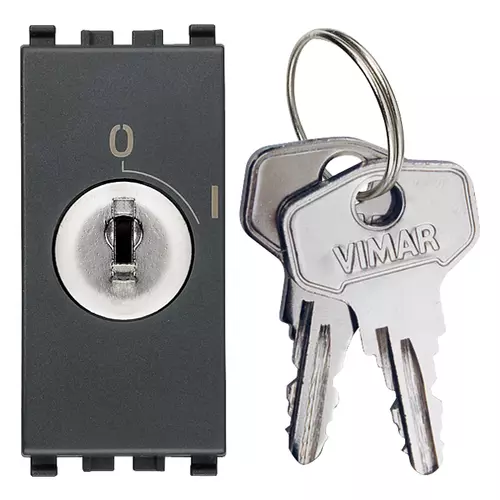

2P NO 16A push button +key grey
2P NO 16 A 250 V~ key-operated push button, key removable in OFF position only, grey

产品状态
3 - Active

图纸

PNG DXF

Class group
Domestic switching devices

Class
Push-switch button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Method of operation
Push button

Number of rockers
0

Number of modules (module system)
1

Number of poles
2

Nominal voltage
250 v

Rated current
16,00 A

With lighting
No

Feedback-signal contact
No

Mounting method
Flush mounted (plaster)

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Width of device
22,30 mm

Height of device
49,00 mm

Depth of device
43,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

20. IRAM - Argentina

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352253445

1 NR

5.1x2.8x5.3 [cm]

53.93 [g]

8007352253452

10 NR

14.4x11.6x6 [cm]

586.2 [g]
