Axial 1P 16AX reversing switch 2M grey - 20113.2

Pdf

Vimar - 20113.2 - Axial 1P 16AX reversing switch 2M grey

20113.2
Wiring devices / Traditional wiring devices / EIKON / Devices

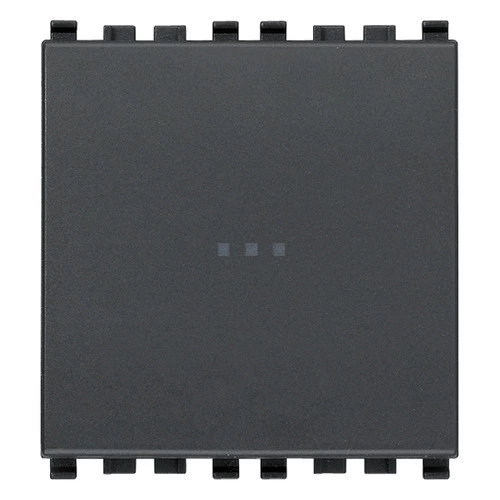

Axial 1P 16AX reversing switch 2M grey
Axial 1P 16 AX 250 V~ reversing switch, lightable, replaceable button, grey - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

您可能也感兴趣

00938.A - LED unit 110-250V 0,3Waxialcontrol amber

00938.G - LED unit 110-250V 0,3Waxialcontrol green

00938.R - LED unit 110-250V 0,3Waxialcontrol red

00938.B - LED unit 110-250V 0,3Waxialcontrol blue

00938.W - LED unit 110-250V 0,3Waxialcontrol white

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Intermediate switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Push button switch
Yes

Number of rockers
0

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
44,80 mm

Device height
49,00 mm

Device depth
44,00 mm

Built-in depth
34,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352460140

1 NR

5.1x4.8x5.3 [cm]

48.8 [g]

8007352460157

10 NR

24.7x11x6.2 [cm]

552.2 [g]
