2P+E 16A German SICURY outlet+cover w - 20208.C.B, Other standards socket outlets, Eikon white - 产品目录

Pdf

20208.C.B

Eikon white / Devices / Other standards socket outlets

2P+E 16A German SICURY outlet+cover w
2P+E 16 A 250 V~ SICURY socket outlet, German standard, with cover, white - 2 modules

产品状态
3 - Active

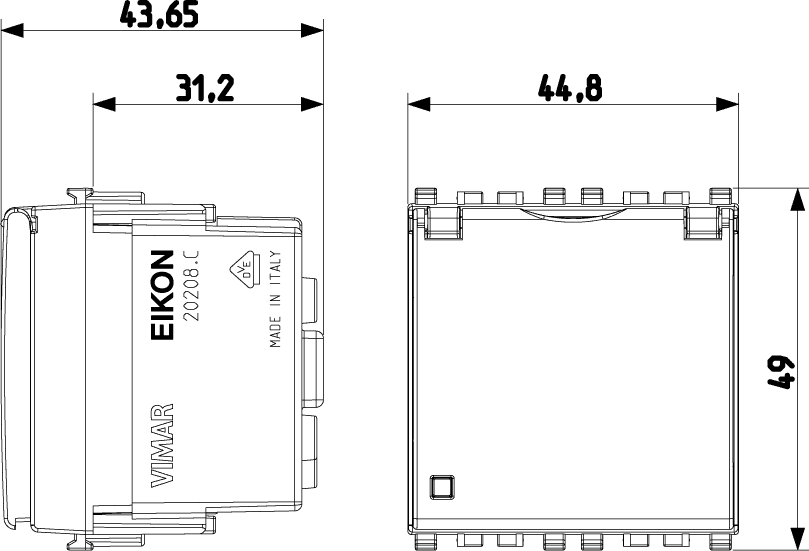

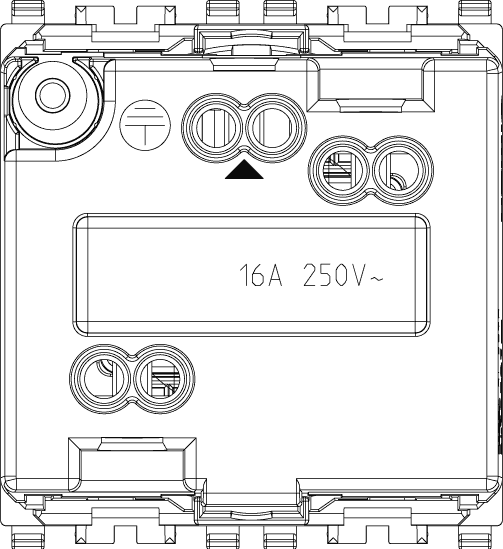

图纸

PNG DXF

Class group
Domestic switching devices

Class
Socket outlet

Model
Protective contact (SCHUKO)

With built-in USB power supply
No

Number of units
1

Number of modules (module system)
2

Number of socket outlets switchable
0

Imprint/indication
None

Connection type
Screwed terminal

With hinged lid
Yes

With enhanced contact protection
Yes

Label space/information surface
Yes

Colour
White

RAL-number (similar)
9016

Metallic colour
No

Transparent
No

Lockable
No

Eject-mechanism
No

Insulated mounting
No

With function lighting
Yes

Over voltage protection
No

Fault current protection
No

Mounting method
Flush mounted (plaster)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

With on/off switch
No

With loop through function
No

Rotated central insert
No

Nominal current
16 A

Nominal voltage
250 v

Frequency
50,00 - 60,00 HZ

Suitable for degree of protection (IP)
IP20

Impact strength
Other

Width of device
44,80 mm

Height of device
49,00 mm

Depth of device
38,90 mm

00. CE Marking - EU

09. VDE - Germany

10. EAC Eurasian Customs Union

12. AENOR - Spain

14. TSE - Turkey

19. NOM - Mexico

37. Marking - Morocco

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352431744

1 NR

5.1x4.3x5.3 [cm]

52.5 [g]

8007352431751

10 NR

26.9x11.6x4.9 [cm]

589.5 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
