20211.B
Wiring devices / Traditional wiring devices / EIKON / Devices

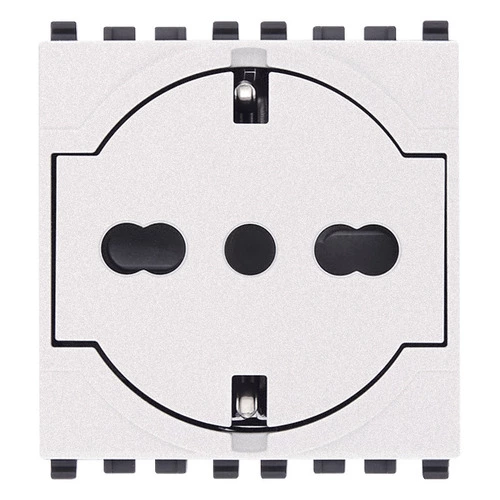

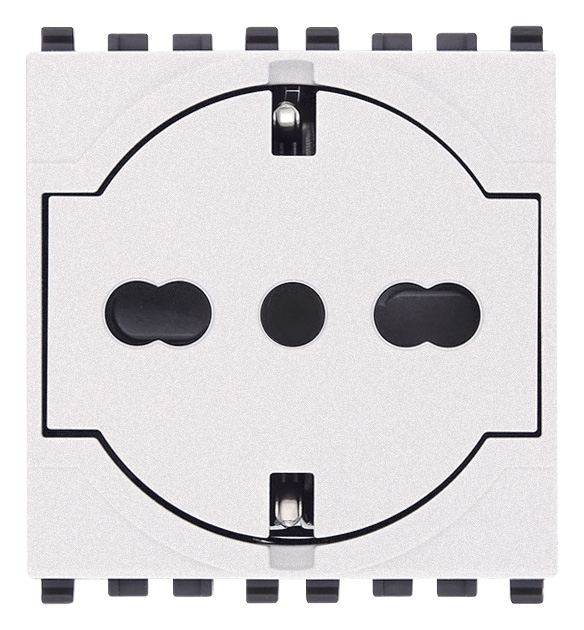

Flat 2P+E P40 Universal outlet white
SICURY 2P+E 16 A 250 V~ universal socket outlet, Italian standard P40, flush-fitting, white - 2 modules
产品状态
3 - Active

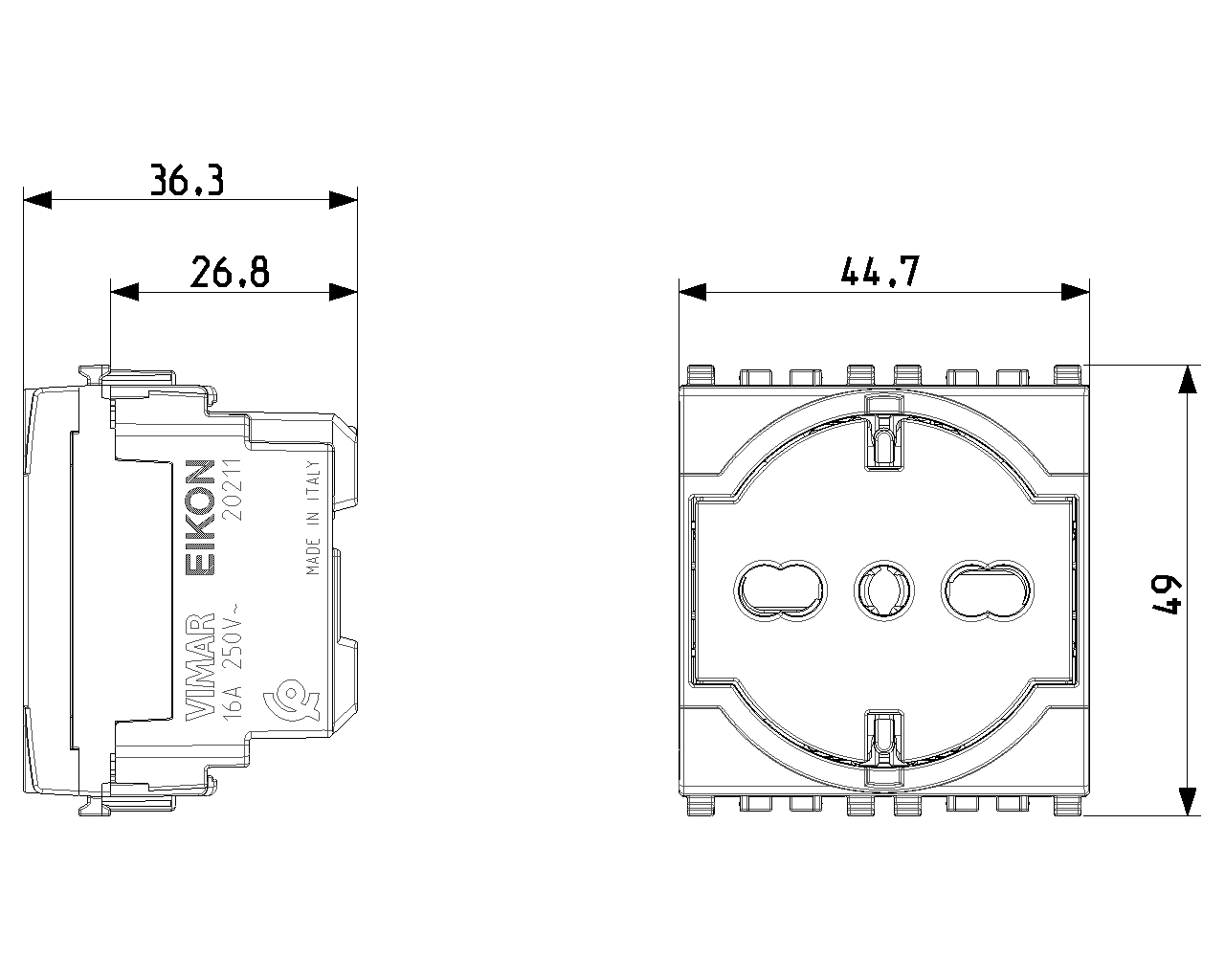

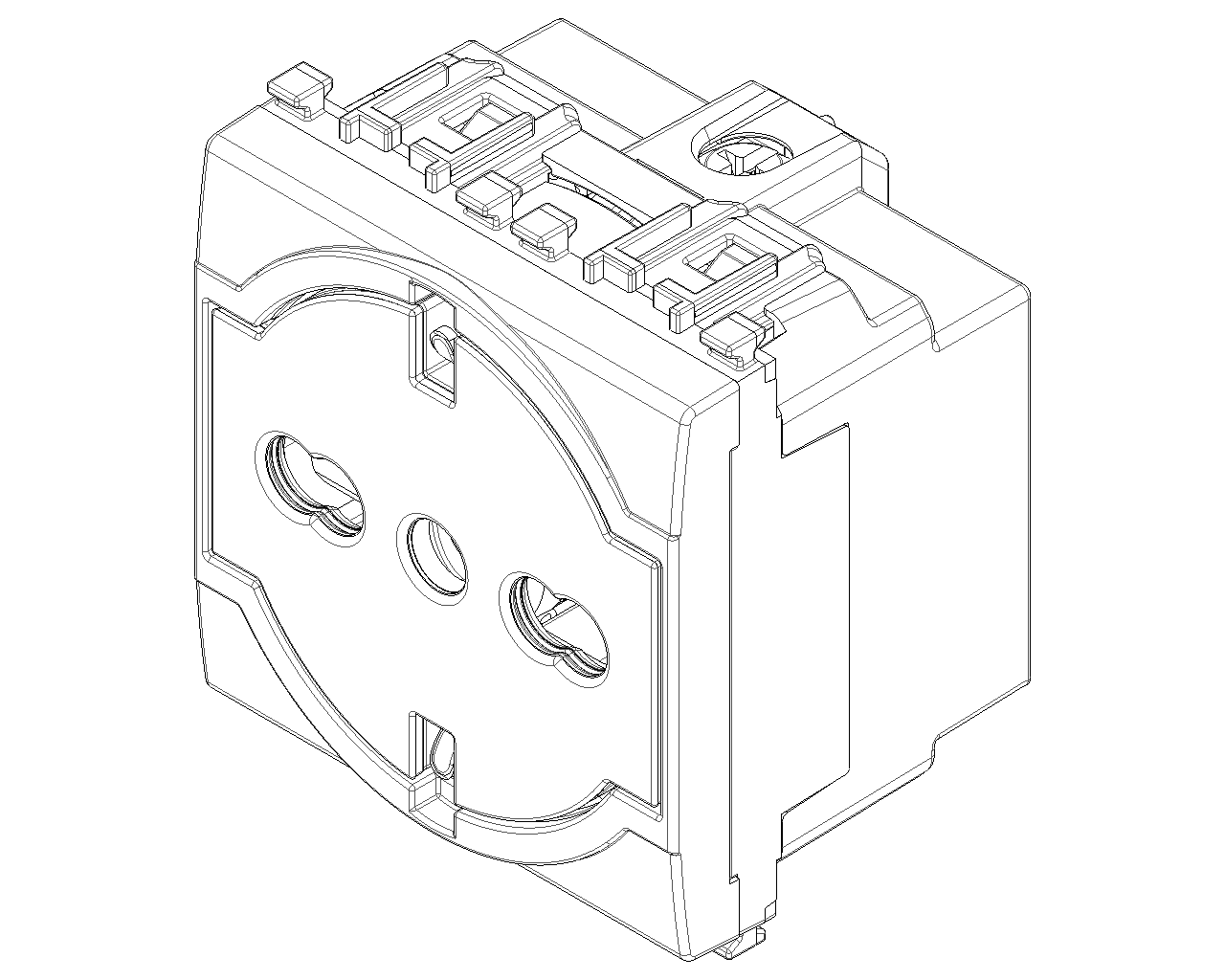

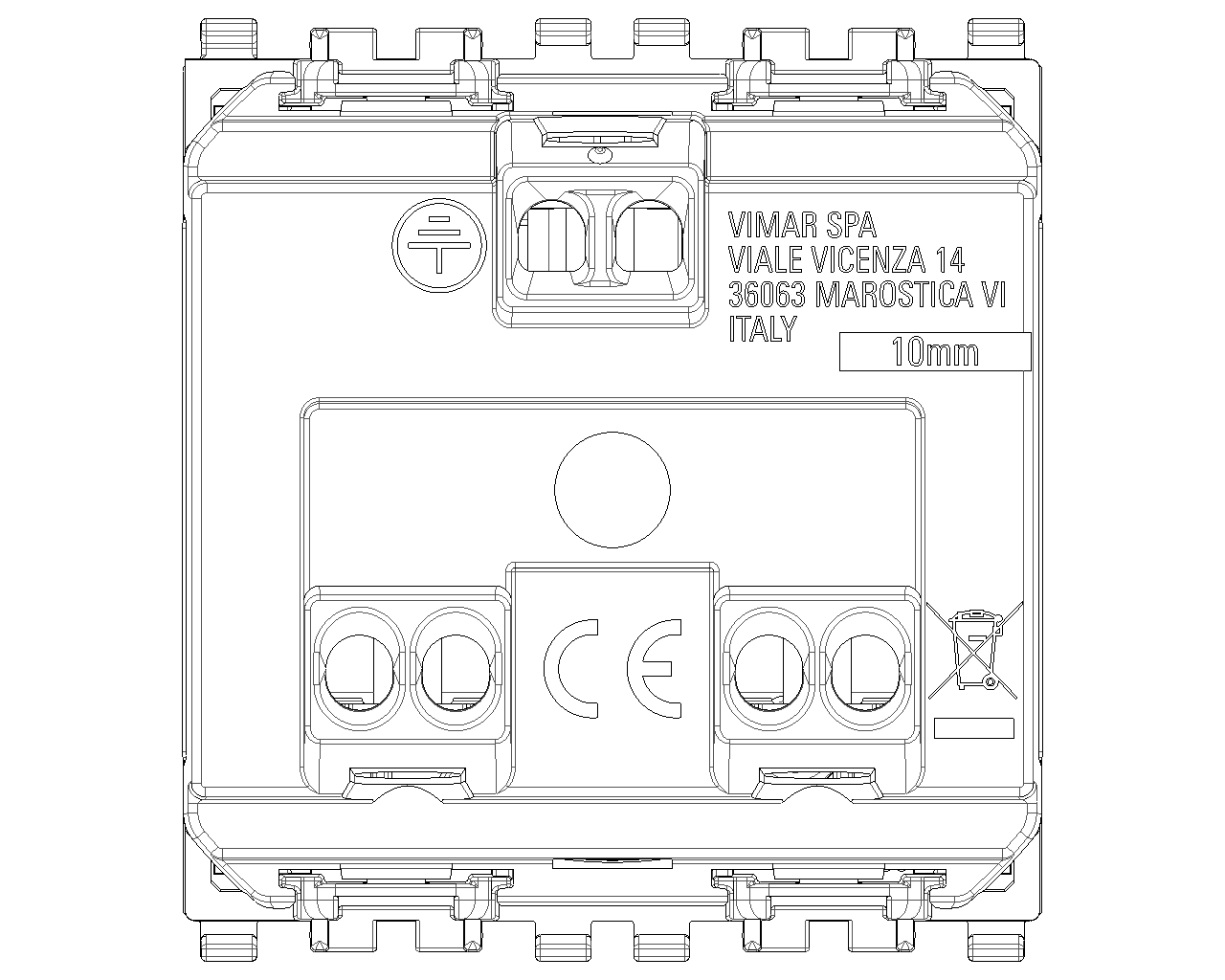

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Socket outlet
Socket outlet
Model
Other
Other
Number of active contacts (round)
0
0
Number of active contacts (flat)
0
0
Number of active contacts (square)
0
0
With signal lamp
No
No
Number of ports USB-A
0
0
Number of ports USB-C
0
0
Number of modules (module system)
2
2
Number of socket outlets switchable
0
0
Number of phases
1
1
Imprint/indication
None
None
Connection type
Screwed terminal
Screwed terminal
With hinged lid
No
No
With enhanced contact protection
No
No
Label space/information surface
No
No
Colour
White
White
RAL-number (similar)
9016
9016
Metallic colour
No
No
Lockable
No
No
Eject-mechanism
No
No
Insulated mounting
No
No
With function lighting
No
No
With orientation lighting
No
No
Overvoltage protection
No
No
Fault current protection
No
No
With miniature fuse
No
No
Special power supply
None
None
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Anti-bacterial treatment
No
No
With loop through function
No
No
With on/off switch
No
No
Rotated central insert
No
No
Nominal current
16 A
16 A
Nominal voltage
250 V
250 V
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Rated fault current
0 mA
0 mA
Suitable for degree of protection (IP)
IP20
IP20
Impact strength
IK00
IK00
Device width
44,70 mm
44,70 mm
Device height
49,00 mm
49,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Amazon Alexa
No
No
Compatible with Google Assistant
No
No
IFTTT support available
No
No
With Wi-Fi signal repeater
No
No
With built-in bluetooth speaker
No
No
For heavy conditions according to VDE
No
No
Compliant with UK Building Regulations Part M
No
No
最小订单数量: 20 NR
条形码
8007352779228
1 NR
5.1x4.3x5.3 [cm]
49.27 [g]
8007352779235
20 NR
27.4x11.5x9.2 [cm]
1,070.7 [g]
8007352779242
240 NR
38x28.5x35.5 [cm]
12,848 [g]
