2P+E 16A P17/11 outlet+C16 RCBO white - 20283.B

Pdf

Vimar - 20283.B - 2P+E 16A P17/11 outlet+C16 RCBO white

20283.B
Wiring devices / Traditional wiring devices / EIKON / Devices

2P+E 16A P17/11 outlet+C16 RCBO white
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11, interlocked with 1P+N C 16 residual current breaker with overcurrent protection, supply voltage 230 V~ 50 Hz, IΔn 10 mA, breaking capacity 3000 A, white - 3 modules

产品状态
2 - Will be discontinued

单, 说明书, 文档

Multilanguage instructions sheet (777 kb)

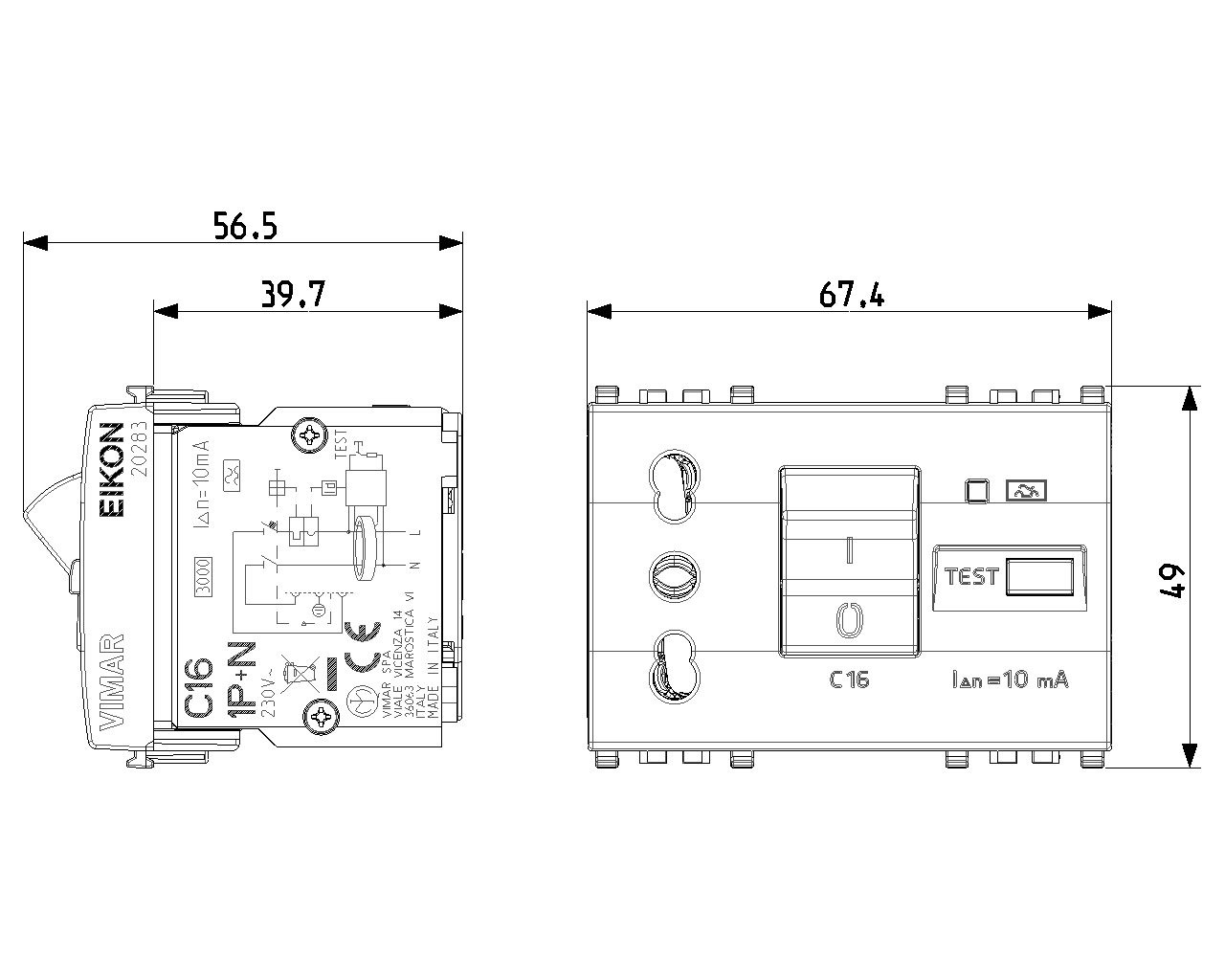

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Socket outlet

Model
Italian type Bipasso

Number of units
2

Number of modules (module system)
3

Number of socket outlets switchable
1

Imprint/indication
None

Connection type
Screwed terminal

With hinged lid
No

With enhanced contact protection
Yes

Label space/information surface
Yes

Colour
White

RAL-number (similar)
9016

Metallic colour
No

Transparent
No

Lockable
No

Eject-mechanism
No

Insulated mounting
No

With function lighting
Yes

With orientation lighting
No

Over voltage protection
No

Fault current protection
Yes

With miniature fuse
No

Mounting method
Flush-mounted

Type of fastening
Snap mounting (engagement)

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

With loop through function
No

With on/off switch
Yes

Rotated central insert
No

Nominal current
16 A

Nominal voltage
230 V

Frequency
50,00 - 50,01 HZ

Rated fault current
10 mA

Suitable for degree of protection (IP)
IP20

Impact strength
Other

Device width
44,80 mm

Device height
49,00 mm

Device depth
56,30 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 5 NR

条形码

8007352314313

1 NR

5.2x5.7x7.6 [cm]

138.07 [g]

8007352314320

5 NR

21.4x11.6x6 [cm]

751.87 [g]
