Vimar - 20507.B - Frame for RF device white

20507.B
Smart systems&products / Smart switch&sound / Shared components / Mounting frames

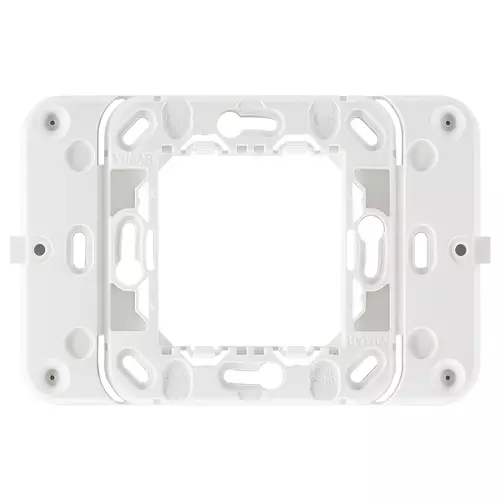

Frame for RF device white
Frame for surface mounting of EnOcean, Bluetooth, ZigBee radiofrequency devices, to complete with Eikon or Plana 2-central-module or 2-module cover plates, white

产品状态
3 - Active

您可能也感兴趣

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

图纸

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
2

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
Yes

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

15. CCC - China

29. QCERT - Colombia

最小订单数量: 10 NR

条形码

8007352362734

1 NR

11.3x7.3x0.9 [cm]

27.5 [g]

8007352362741

10 NR

13.9x11.9x7.4 [cm]

321.2 [g]

8007352647558

200 NR

38.5x29.5x25 [cm]

6,880 [g]
