Class group
Domestic switching devices
Class
Installation switch
Wiring system
Other
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
7024
Label space/information surface
No
Illumination
Yes
Function lighting
Other
Type of lighting
LED not exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
120 V
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No

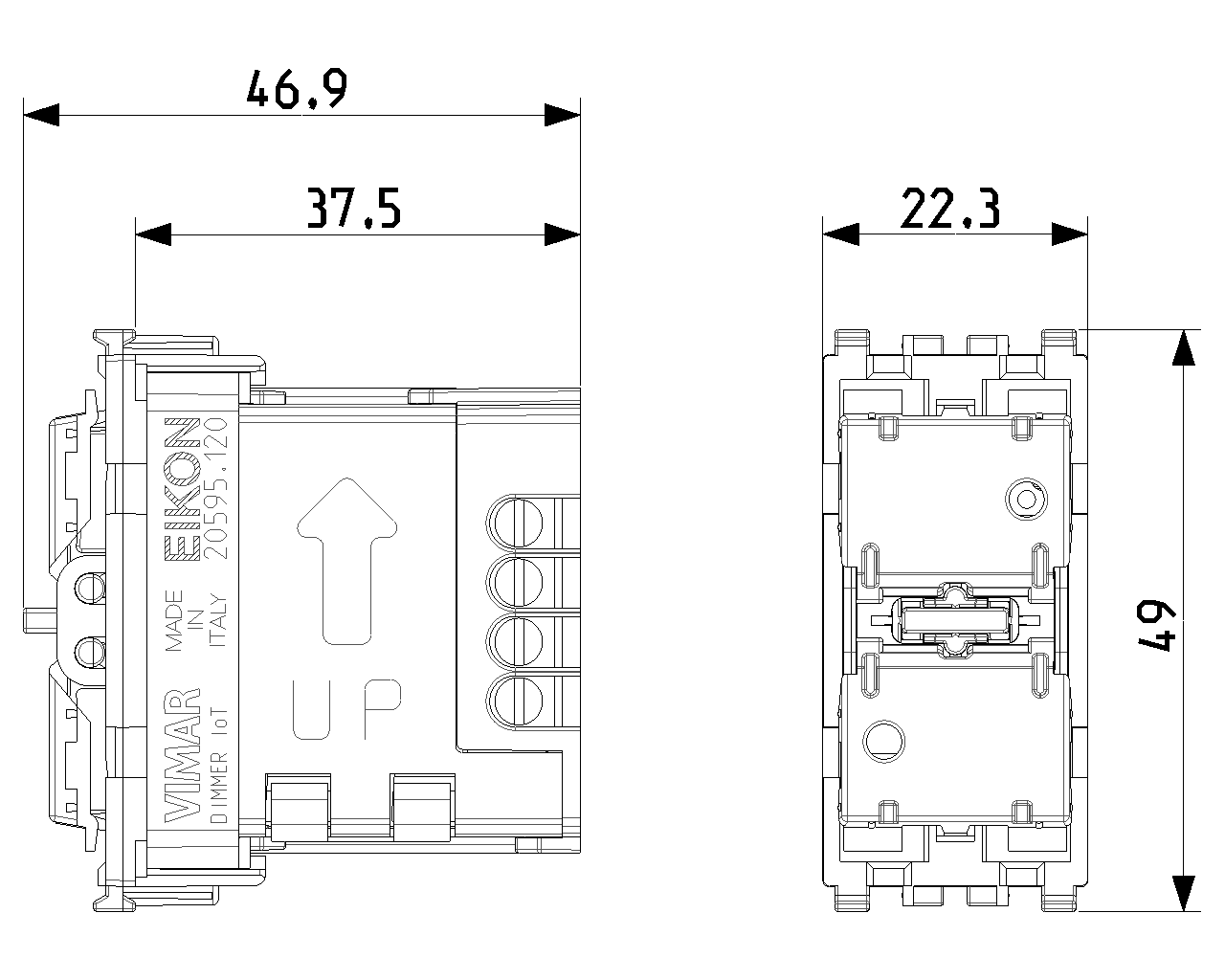

Device width
22,30 mm
Device height
49,00 mm
Device depth
46,90 mm
Built-in depth
37,50 mm
Min. depth of built-in installation box
42,00 mm
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
Yes
