Home-Thermostat FAN 2M black diamond - 21514.F.76

Pdf
21514.F.76

Eikon TACTIL / Systems / Domotics - devices

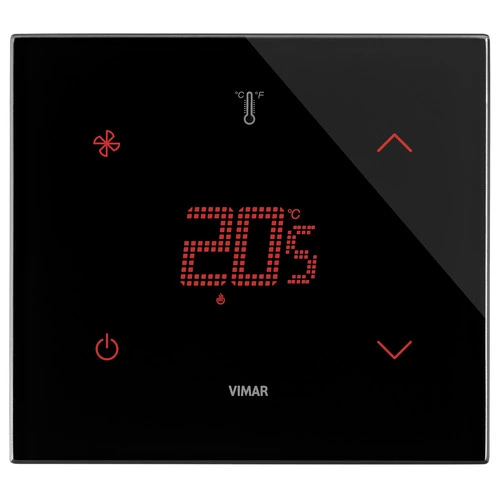

Home-Thermostat FAN 2M black diamond
Touch screen home automation system thermostat for room temperature control (heating and air conditioning), 3-speed and proportional fan coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, can be interfaced with actuator with proportional analogue outputs 01466.1 to make a class V modulating room thermostat (contribution 3%), 1 input for electronic temperature sensor 20432, 19432 or 14432 or wired temperature sensor 02965.1, 1 programmable digital input, RGB LED backlighting, black diamond - 2 modules

产品状态
4 - Active

Class group
Installation bus systems
Class
Room temperature controller for bus system
Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Assembly arrangement
Control element
Mounting method
Flush mounted (plaster)
With local operation
Yes
With anti-theft/dismantling protection
No
With LED indication
Yes
With display
Yes
Number of binary inputs
1
Material
Glass
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (akin)
9005
Transparent
No
External sensor
Yes
Manual set point setting
Yes
Presence button
No
Parallel-service possible
No
Degree of protection (IP)
IP40
Bus connection included
Yes
Class of the temperature control
V
最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352658981
1 NR
15.5x15x6 [cm]
310 [g]
