Vimar - 21612 - Frame 2centr.M +screws
Vimar - 21612 - Frame 2centr.M +screws
21612

Eikon / Mounting frames / For rectangular boxes

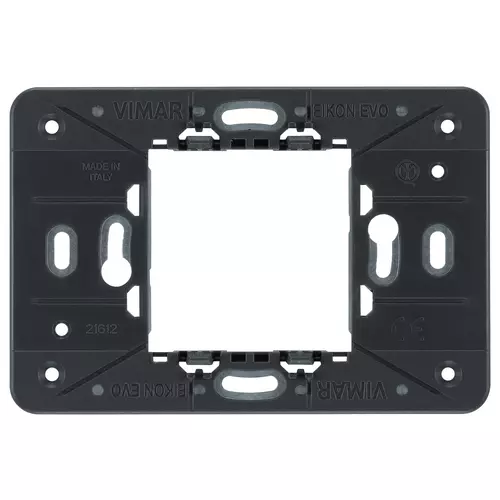

Frame 2centr.M +screws
2-central-module mounting frame, with screws, for 3-module mounting frame and 60 mm fixing centres or 56x56 mm mounting box

产品状态
3 - Active

您可能也感兴趣

07937
07937 - Screw for frame fixing - 35mm
07939
07939 - Screw for frame fixing - 50 mm

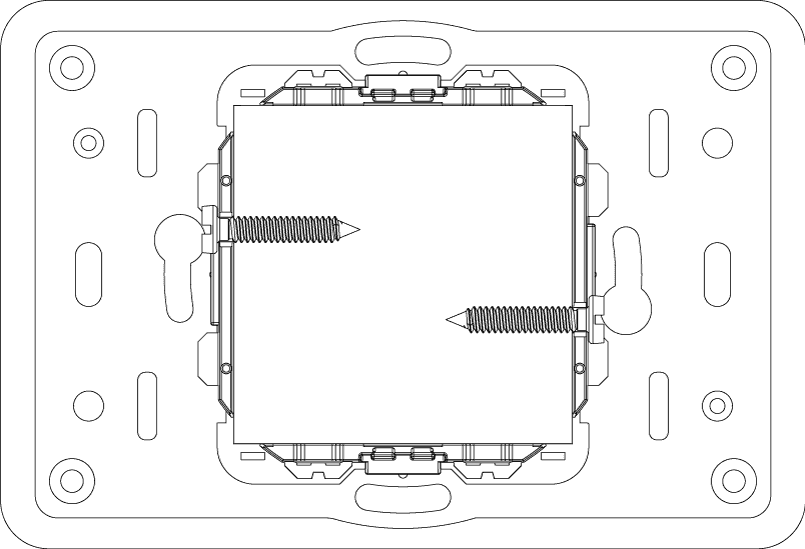

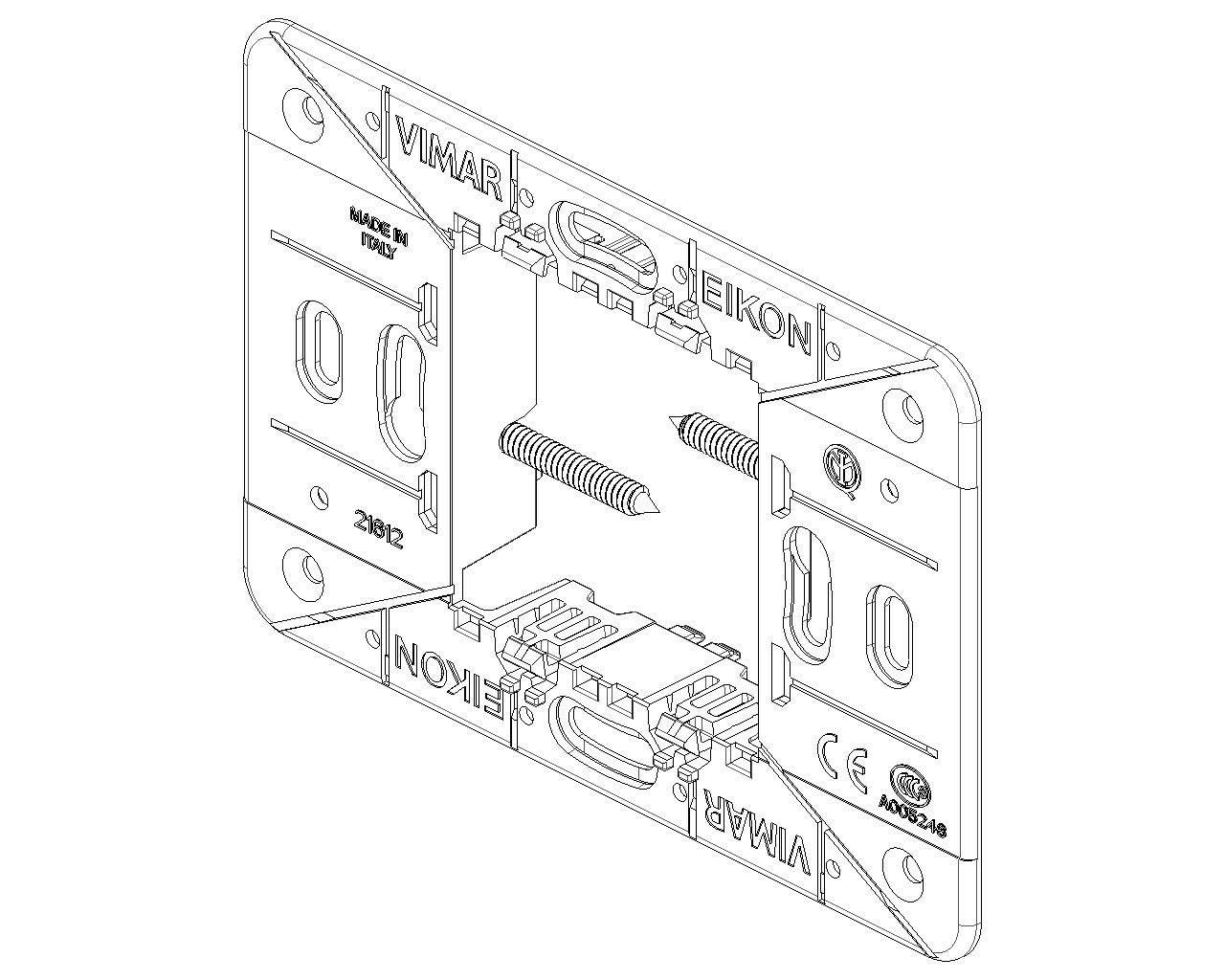

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush mounted (plaster)
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for floor box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

01. IMQ - Italy

15. CCC - China

29. QCERT - Colombia

37. Marking - Morocco

96. Electrotechnical expert

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352421387
1 NR
10.7x7.3x1.8 [cm]
44.7 [g]
Barcode Qty 20 NR
8007352421394
20 NR
24.4x13.9x11.9 [cm]
987 [g]
Barcode Qty 120 NR
8007352644533
120 NR
38.5x29.5x25 [cm]
6,376 [g]
