KNX thermostat FAN 2M white diamond - 21814.F.70

Pdf
Vimar - 21814.F.70 - KNX thermostat FAN 2M white diamond
Vimar - 21814.F.70 - KNX thermostat FAN 2M white diamond
21814.F.70

Eikon TACTIL / Systems / KNX

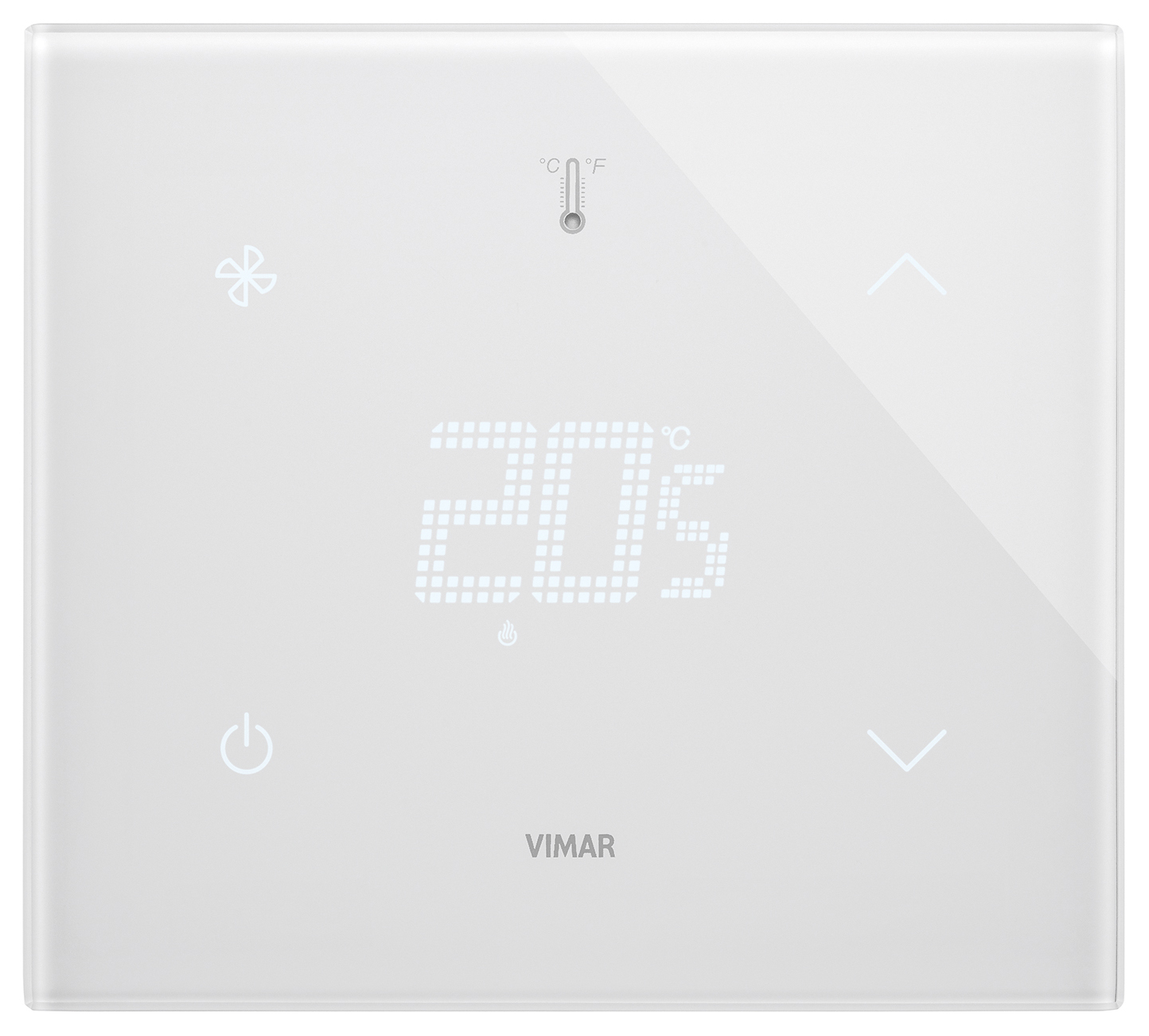

KNX thermostat FAN 2M white diamond
Touch screen thermostat for room temperature control (heating and air conditioning), KNX standard home automation system, 3-speed and proportional fan coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, can be interfaced with actuator with proportional analogue outputs to make a class V modulating room thermostat (contribution 3%), 1 input for electronic temperature sensor 20432, 19432 or 14432 or wired temperature sensor 02965.1, 1 programmable digital input, RGB LED backlighting, white diamond - 2 modules

产品状态
3 - Active

Class group
Installation bus systems
Class
Room temperature controller for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Assembly arrangement
Control element
Mounting method
Flush-mounted
With local operation
Yes
With anti-theft/dismantling protection
No
With LED indication
Yes
With display
Yes
Material
Glass
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
Manual set point setting
Yes
Presence button
No
Parallel-service possible
No
Degree of protection (IP)
IP40
With bus connection
Yes
Class of the temperature control
V

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352659506
1 NR

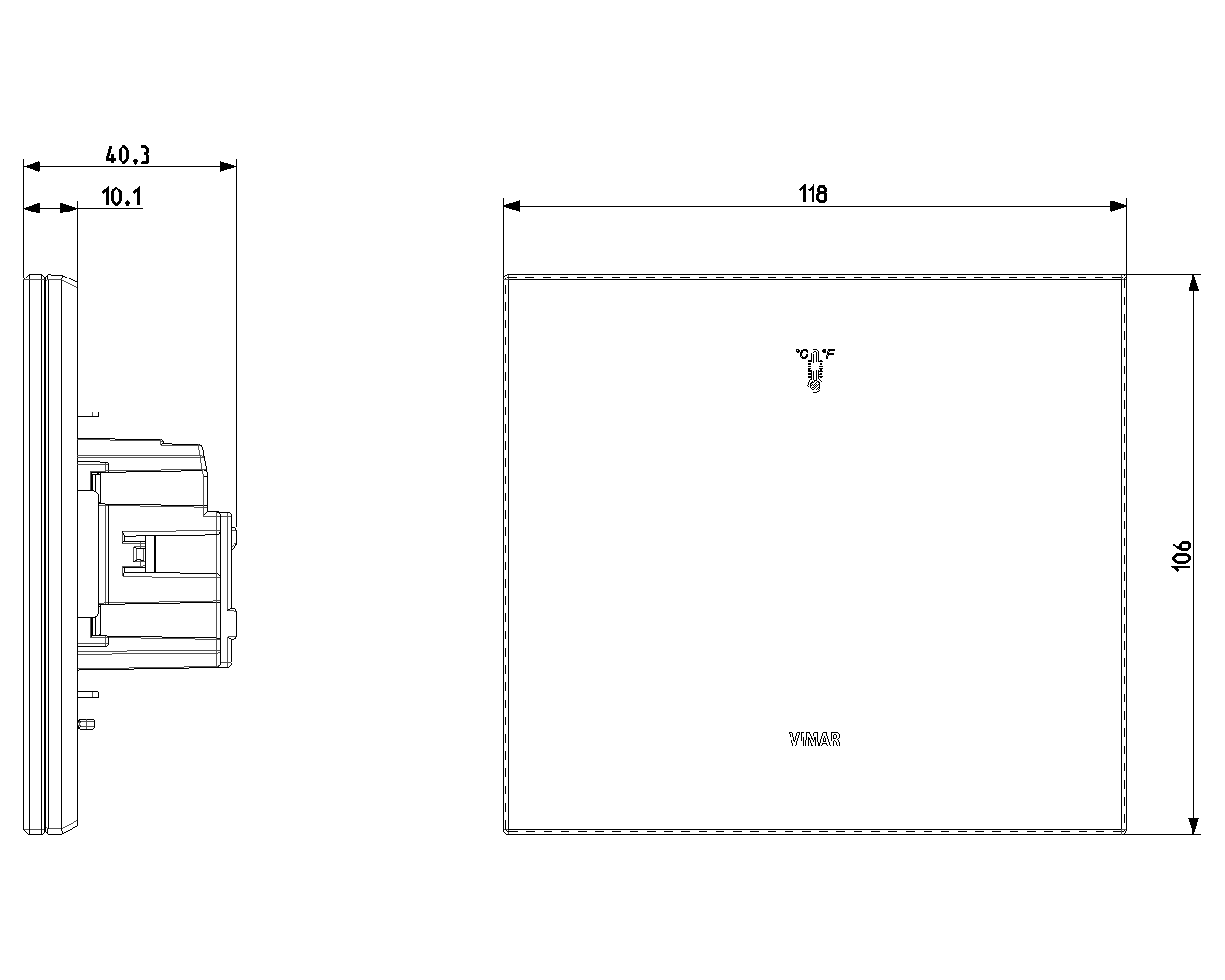

15.5x15x6 [cm]
310 [g]
