22292.CC.15
Wiring devices / Traditional wiring devices / EIKON / Devices

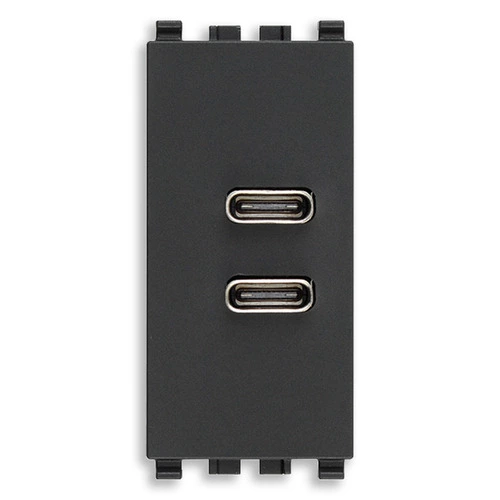

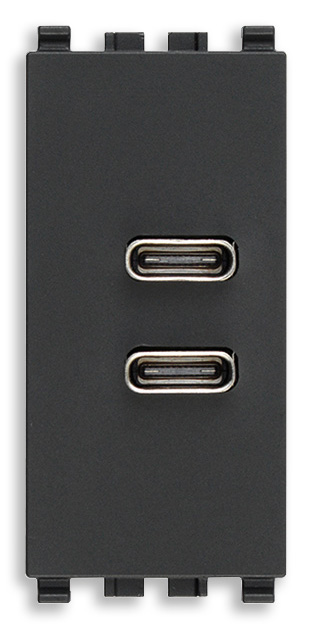

C+C-USB supply unit 5V 3A 15W 1M grey
产品状态
3 - Active
图纸
Class group
Domestic switching devices
Domestic switching devices
Class
USB power supply
USB power supply
Model
Bus
Bus
Number of ports USB-A
1
1
Number of ports USB-C
1
1
Operating voltage
120,00 - 240,00 V
120,00 - 240,00 V
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Max. output current
3.000 mA
3.000 mA
Output voltage
5,00 - 5,01 V
5,00 - 5,01 V
Connection type
Screwed terminal
Screwed terminal
Mounting method
Flush-mounted
Flush-mounted
Colour
Grey
Grey

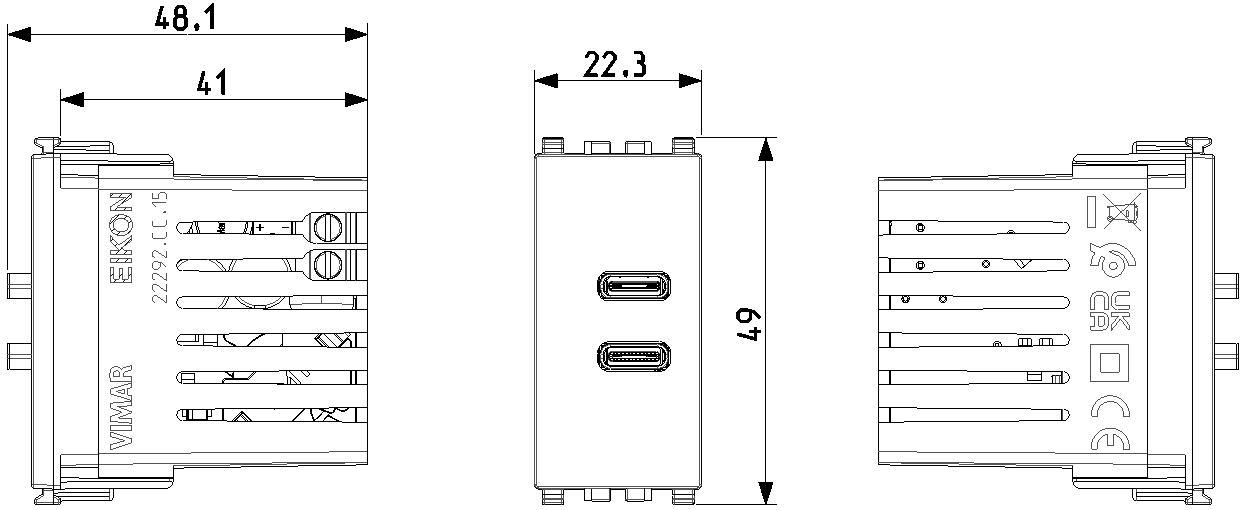

Device width
22,30 mm
22,30 mm
Device height
49,00 mm
49,00 mm
Device depth
48,10 mm
48,10 mm
Min. depth of built-in installation box
41,00 mm
41,00 mm
Suitable for degree of protection (IP)
IP20
IP20
Impact strength
Other
Other
Anti-bacterial treatment
No
No
最小订单数量: 1 NR
条形码
8007352745605
1 NR
5.2x3.5x5.3 [cm]
41.7 [g]
8007352746985
60 NR
27x23x12.5 [cm]
2,692 [g]
分享
合法
Vimar保留随时修改所示产品的特性的权利，恕不另行通知。 安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。 有关产品卡信息的使用条件，请参阅 使用条件。
