30004A.FX2C
Wiring devices / Traditional wiring devices / LINEA / Devices

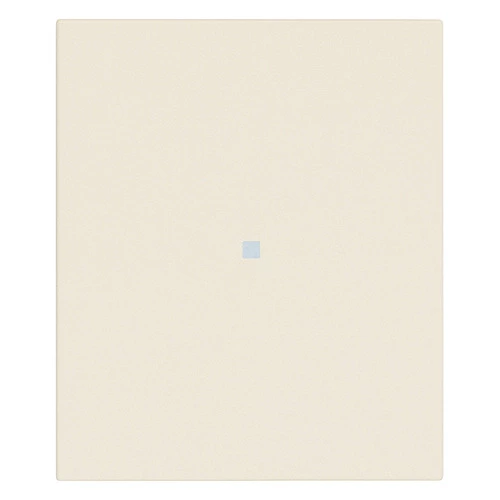

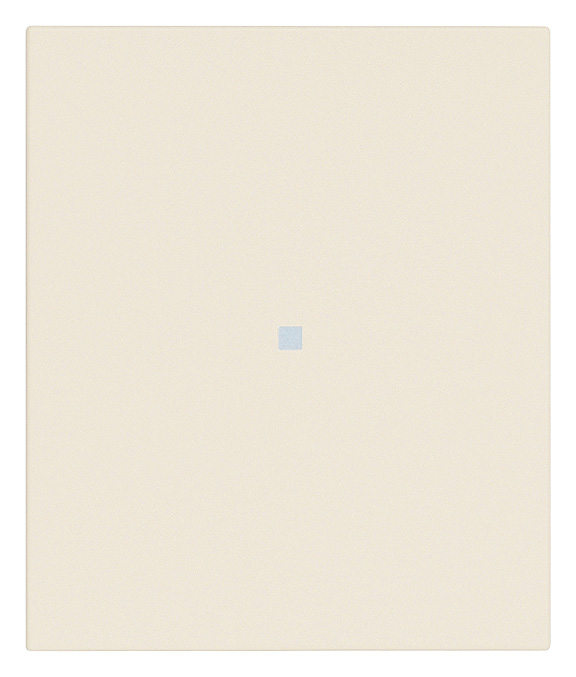

1P 10AX 2M quick wir.axial 2-way switch
产品状态
3 - Active
图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Two-way switch
Two-way switch
Operating method
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
2
2
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Beige
Beige
Label space/information surface
Yes
Yes
Imprint/indication
Other
Other
Lighting
No
No
Function lighting
Other
Other
Type of lighting
LED exchangeable
LED exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Impact strength
Other
Other
Nominal voltage
250 V
250 V
Rated current
10,00 A
10,00 A
Connection type
Push-in clamp
Push-in clamp
Heating switch
No
No
Washing machine switch
No
No
Device width
44,70 mm
44,70 mm
Device height
52,70 mm
52,70 mm
Device depth
41,70 mm
41,70 mm
Built-in depth
36,00 mm
36,00 mm
Min. depth of built-in installation box
36,00 mm
36,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
Compliant with UK Building Regulations Part M
No
No
最小订单数量: 10 NR
条形码
8007352801233
1 NR
6x4.5x5.4 [cm]
34.9 [g]
8007352801240
10 NR
23.5x12.5x6.5 [cm]
389.9 [g]
