30212.FLFXC
Wiring devices / Traditional wiring devices / LINEA / Devices

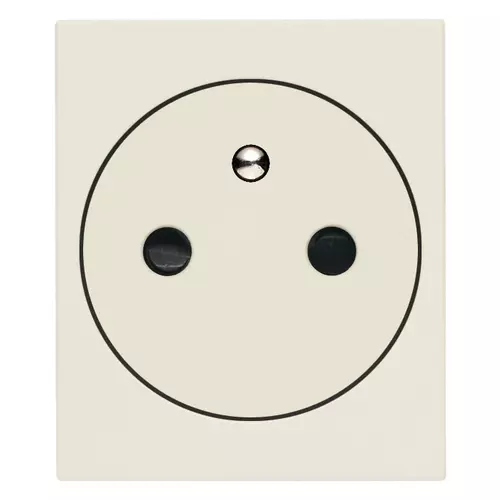

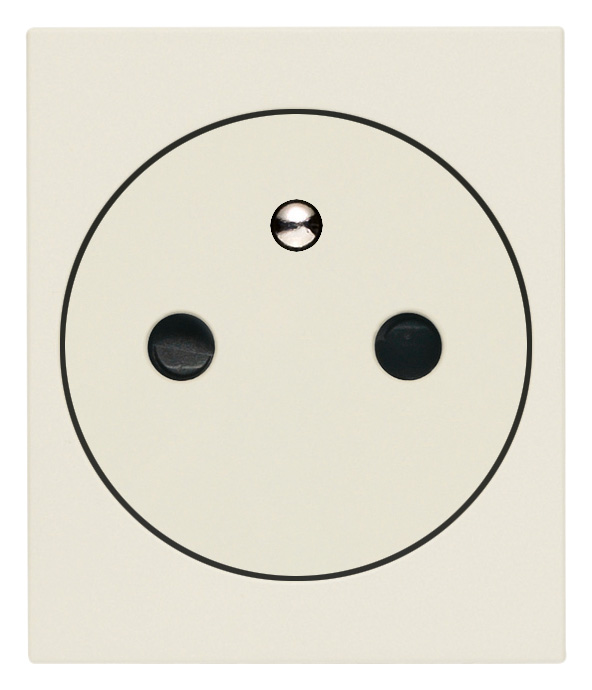

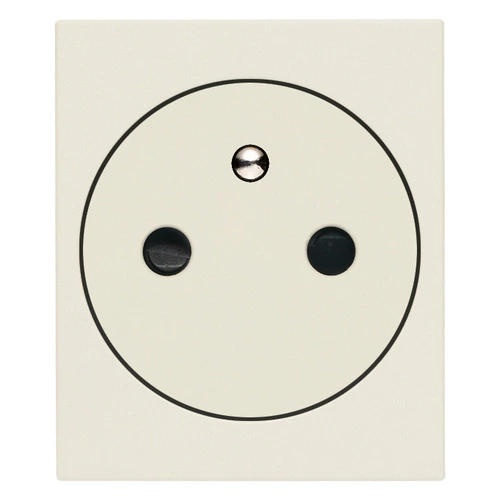

Flat 2P+E16A FR SICURY outlet screwless
产品状态
3 - Active
图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Socket outlet
Socket outlet
Model
Earthing pin
Earthing pin
Concurrently switching neutral conductor
No
No
Protective contact
Round
Round
Number of active contacts (round)
2
2
Number of active contacts (flat)
0
0
Number of active contacts (square)
0
0
With signal lamp
No
No
Number of ports USB-A
0
0
Number of ports USB-C
0
0
Max. current rating of USB power supply
0 A
0 A
Number of units
1
1
Number of modules (module system)
2
2
Number of socket outlets switchable
0
0
Number of phases
1
1
Imprint/indication
None
None
Connection type
Push-in clamp
Push-in clamp
With hinged lid
No
No
With enhanced contact protection
Yes
Yes
Label space/information surface
No
No
Colour
Beige
Beige
RAL-number (similar)
7032
7032
Metallic colour
No
No
Transparent
No
No
Lockable
No
No
Eject-mechanism
No
No
Insulated mounting
Yes
Yes
With function lighting
No
No
With orientation lighting
No
No
Overvoltage protection
No
No
Fault current protection
No
No
With miniature fuse
No
No
Special power supply
No special power supply
No special power supply
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Material
Plastic
Plastic
Material quality
Other
Other
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Anti-bacterial treatment
No
No
With loop through function
Yes
Yes
Number of loop throughs
1
1
With on/off switch
No
No
Colour of switch operator
Other
Other
Rotated central insert
No
No
Nominal current
16 A
16 A
Nominal voltage
250 V
250 V
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Rated fault current
0 mA
0 mA
Suitable for degree of protection (IP)
IP20
IP20
Impact strength
Other
Other

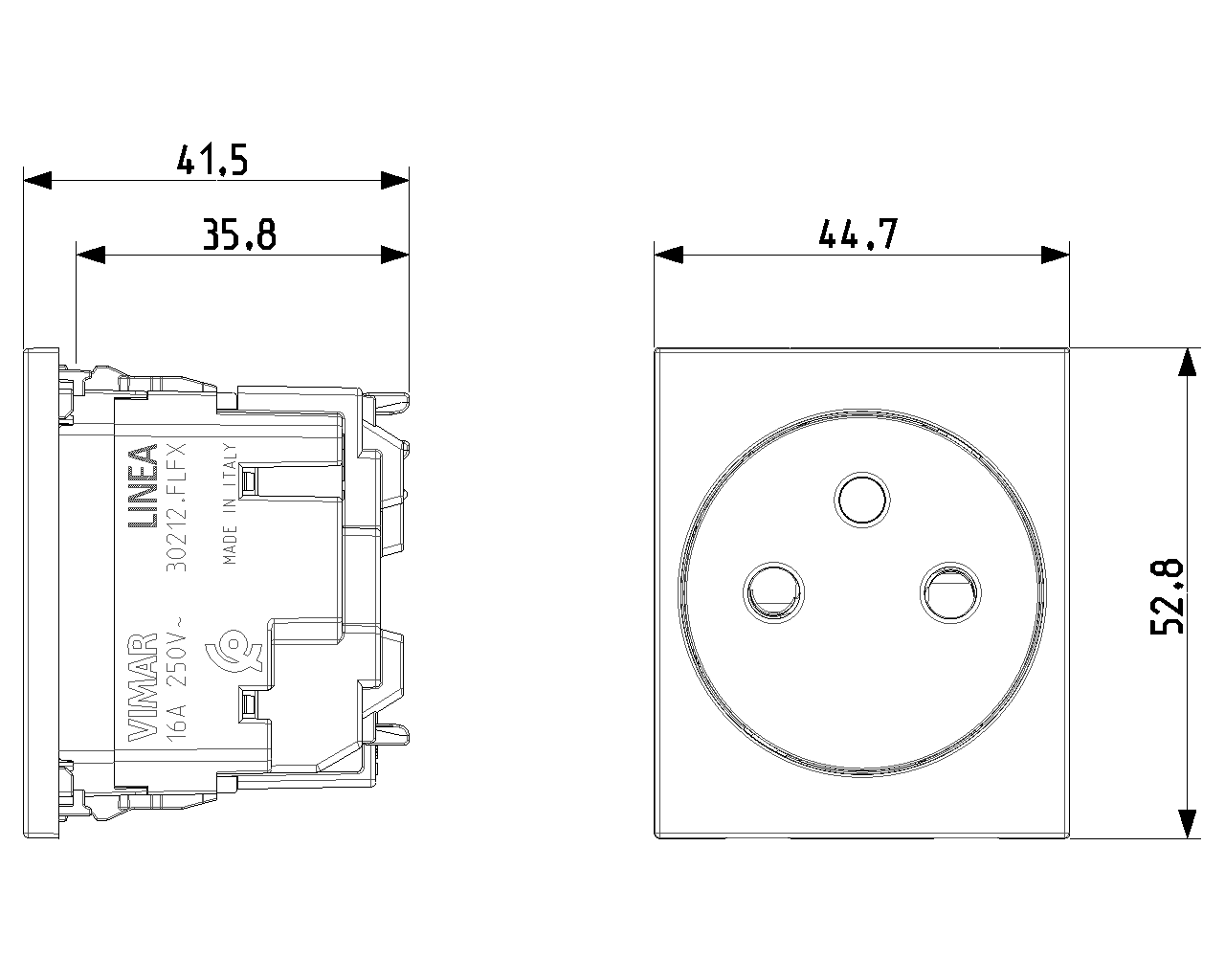

Device width
44,70 mm
44,70 mm
Device height
52,80 mm
52,80 mm
Device depth
41,50 mm
41,50 mm
Min. depth of built-in installation box
40 mm
40 mm
Compatible with Apple HomeKit
No
No
Compatible with Amazon Alexa
No
No
Compatible with Google Assistant
No
No
IFTTT support available
No
No
With Wi-Fi signal repeater
No
No
With built-in bluetooth speaker
No
No
For heavy conditions according to VDE
No
No
Compliant with UK Building Regulations Part M
No
No
最小订单数量: 20 NR
条形码
8007352755086
1 NR
5.2x4.3x5.6 [cm]
51 [g]
8007352755093
20 NR
23x11.2x12.8 [cm]
1,117 [g]
8007352755109
120 NR
35x25x24 [cm]
7,100 [g]
