Pull-out LED hand lamp 2M - 30397

Pdf

Vimar - 30397 - Pull-out LED hand lamp 2M

30397
Wiring devices / Traditional wiring devices / LINEA / Devices

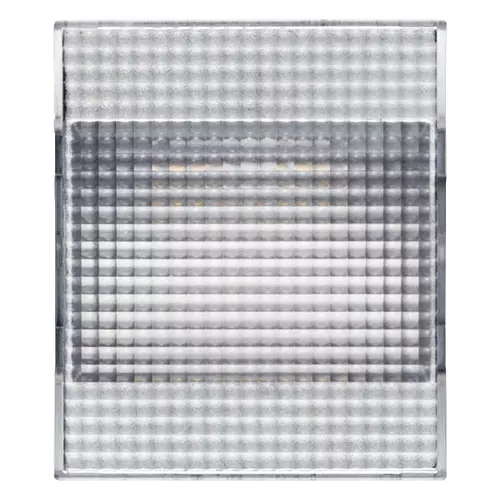

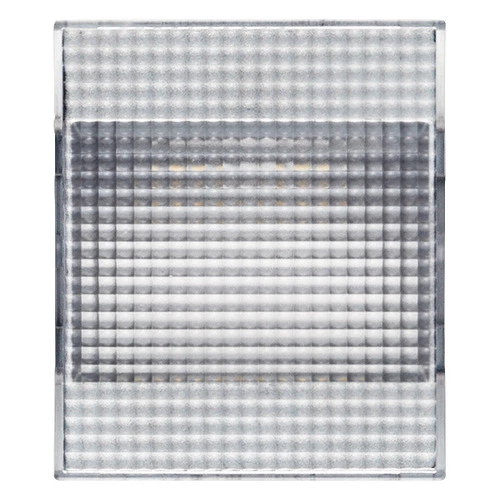

Pull-out LED hand lamp 2M
Auxiliary emergency removable hand lamp and controllable step marker lamp, high efficiency LEDs 100-240 V~ 50/60 Hz, can also be used as a courtesy light or a step marker lamp controlled by an external 1-way switch, replaceable rechargeable Li-ion battery, range of 2.5 hours, neutral - 2 modules

产品状态
3 - Active

单, 说明书, 文档

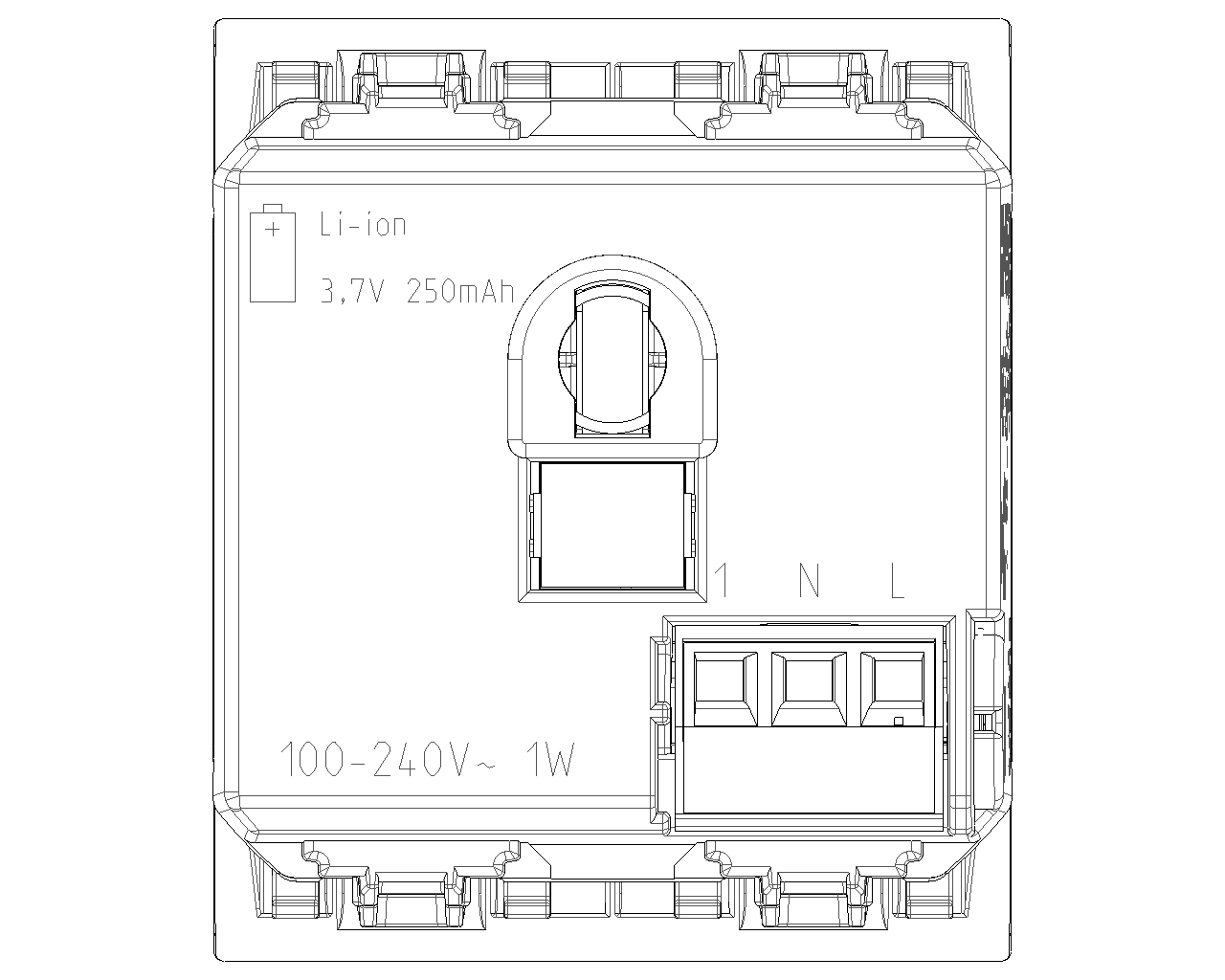

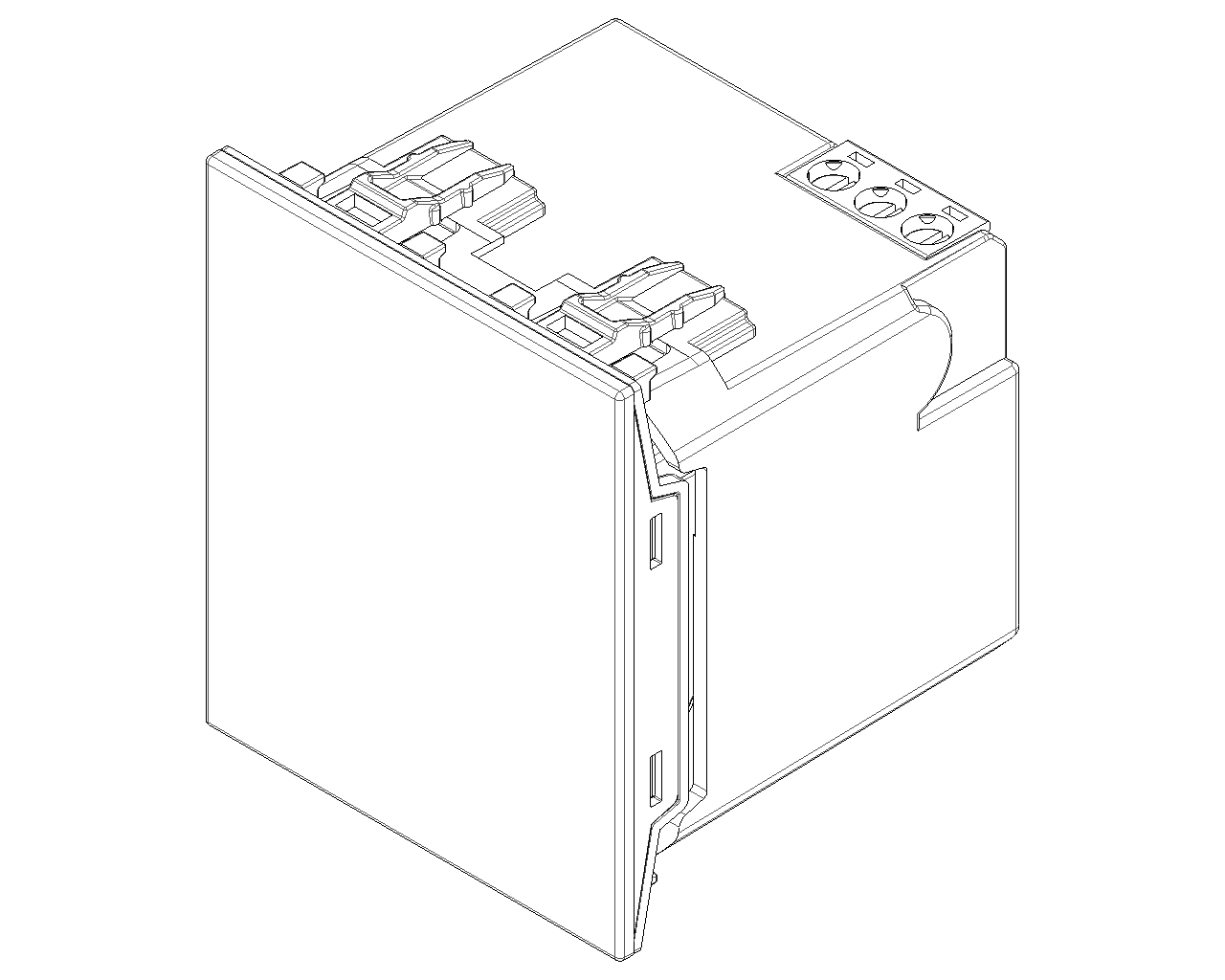

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Luminaires

Class
Emergency luminaire

Mounting method
Built-in

Function
Escape route lighting

Suitable for labelling type
Other

With pictogram
No

Monitoring equipment
None

With remote switch connection
Yes

With remote control
No

Power supply system
Peripheral (individual battery)

Battery quality
Lithium-ions

Lamp type
LED not exchangeable

With light source
Yes

Suitable for number of light sources
1

Lamp holder
Other

Number of lighting heads
2

Housing material
Plastic

Housing colour
Colourless

Material cover
Without cover

Voltage type
AC

Nominal voltage
100,00 - 240,00 V

Type of control gear
Not required

Exchangeable control gear
No

Light distributor
Other

Degree of protection (IP)
IP40

Degree of protection (NEMA)
Other

Protection class
II

Max. system power
1,00 W

Nominal operation time
250,00 - 251,00 h

Width
44,70 mm

Height/depth
44,70 mm

Length
52,70 mm

Outer diameter
0 mm

Built-in width
44,70 mm

Built-in height/depth
39,00 mm

Built-in length
52,70 mm

Built-in diameter
0 mm

Type of wiring
Ending

Number of poles
0

Conductor cross section
250

Connection type
Screw connection

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 1 NR

条形码

8007352704664

1 NR

6x5.4x5.2 [cm]

67.4 [g]

8007352713321

10 NR

28.1x13.1x6 [cm]

763.2 [g]

8007352713314

120 NR

40x30x27 [cm]

9,614 [g]
