46242.036C
Safety / ELVOX CCTV / IP / Cameras
Additional camera for 46KIT.036C kit

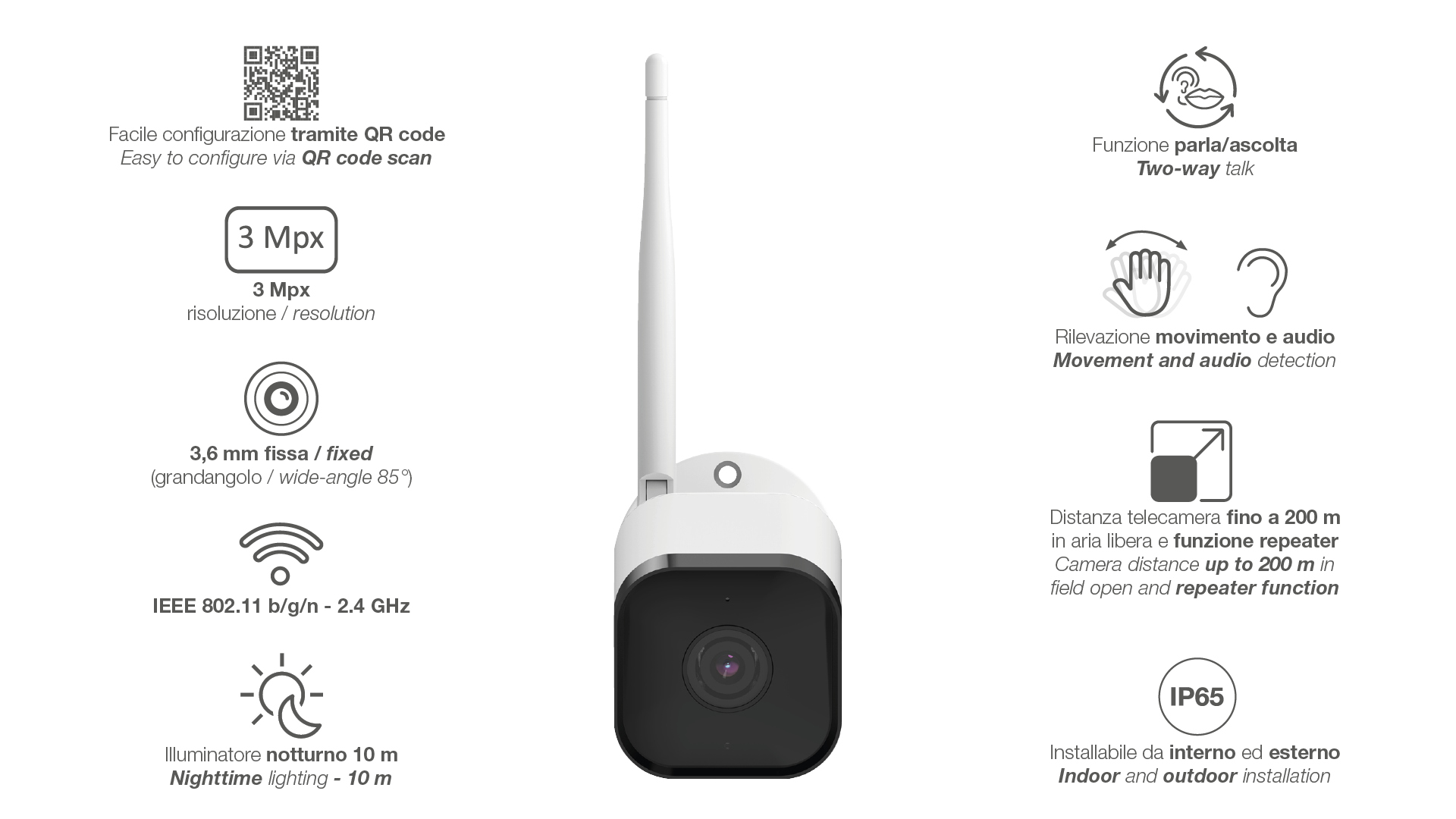

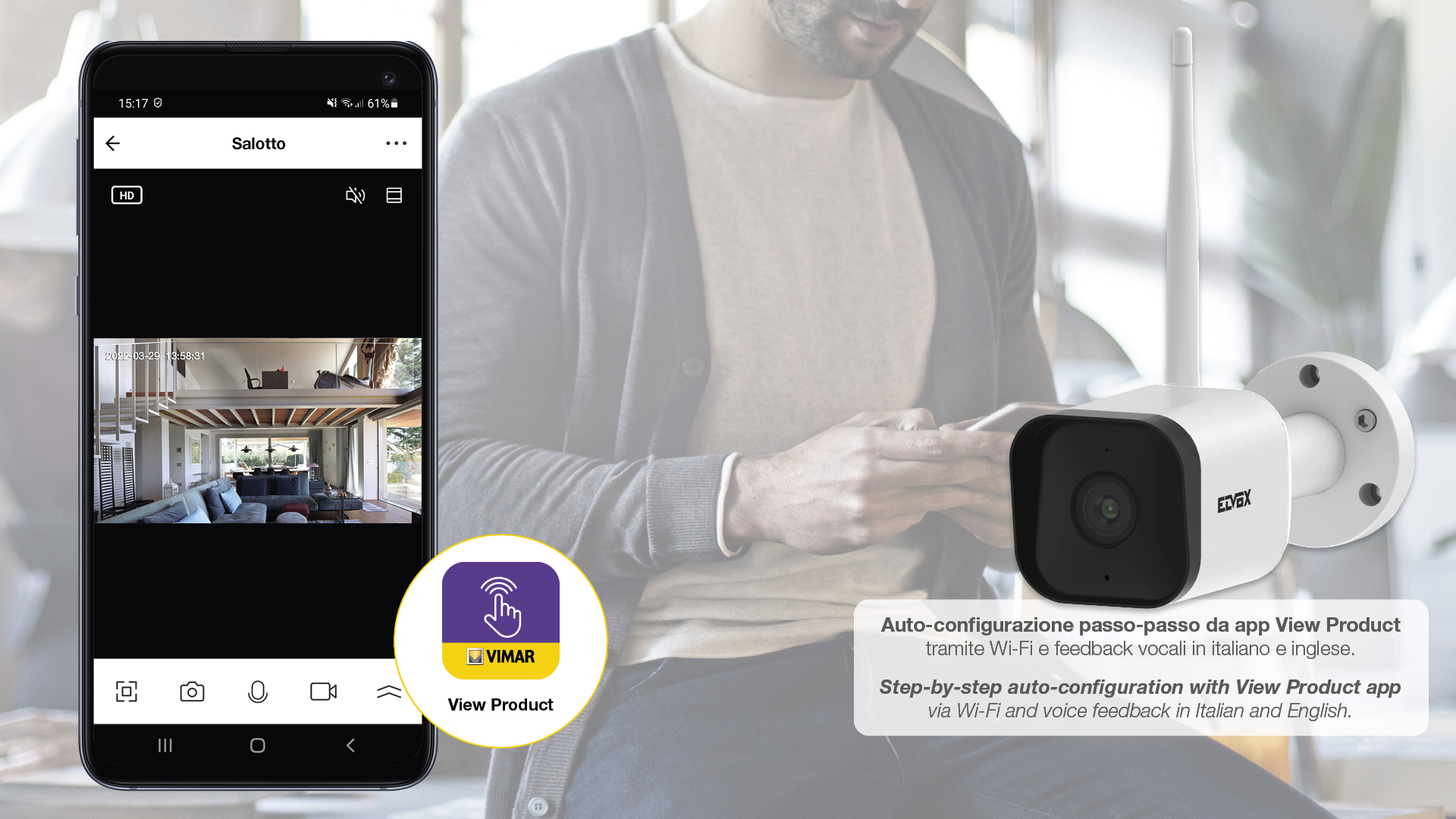

- The kit is supplied pre-configured and ready to use. It is easy to manage using the View Product App
- Cameras and NVR allow viewing and recording, for each image channel, with a resolution of up to 3 Mpx
- The audio is detected automatically, motion and the presence of people (available on two channels) by sending push notifications on the View Product App
- Camera distance: up to 200 m in open air and repeater function
- High definition pictures can be viewed on a monitor/TV via an HDMI cable, also guaranteeing supervision in the absence of a network connection
产品状态
2 - Will be discontinued
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Camera for surveillance system
Model
Standard (Fixed)
Standard (Fixed)
Construction type
Bullet shape
Bullet shape
Thermal camera
No
No
Number of pixels (Megapixel)
3
3
With lens
Yes
Yes
Modular (lens and camera separated)
No
No
Focal size
3,60 - 3,61 mm
3,60 - 3,61 mm
Shutter control
DC
DC
Lens connection
Other
Other
Motor zoom
No
No
Suitable for wall mounting
Yes
Yes
Suitable for ceiling mounting
Yes
Yes
Suitable for corner mounting
No
No
Suitable for surface mounting
Yes
Yes
Flush-mounted installation/built-in installation
No
No
Suitable for outdoor use
Yes
Yes
Communication medium wired
Yes
Yes
Communication medium wireless
Yes
Yes
Type of interface
Wi-Fi
Wi-Fi
Protocol
TCP/IP
TCP/IP
Power over Ethernet (PoE)
None
None
Picture system
PAL
PAL
Frame rate
25
25
Property picture system
Colour
Colour
With infrared lighting
Yes
Yes
Max. infrared reach
10 m
10 m
With white light
No
No
Max. white light reach
0 m
0 m
Supports H.264 codec
Yes
Yes
Supports H.265 codec
Yes
Yes
Supports Motion JPEG codec
Yes
Yes
Supports MPEG-4 codec
No
No
With video motion detector
Yes
Yes
With integrated AI analysis
Yes
Yes
With slot for memory card
Yes
Yes
With memory card
No
No
Memory capacity
128
128
Number of digital inputs
0
0
Number of digital outputs
0
0
Number of audio inputs
1
1
Number of audio outputs
1
1
With integrated audio analysis
No
No
HDMI-connection
No
No
Mini HDMI-connection
No
No
VGA-connection (D-Sub 15-pole)
No
No
DVI-connection
No
No
BNC-connection
No
No
DisplayPort-connection
No
No
Mini DisplayPort
No
No
S-Video-connection
No
No
USB-C-connection
No
No
Vandal proof
No
No
Impact strength
Other
Other
Degree of protection (IP)
IP65
IP65
Horizontal field of view
91,00 - 91,10
91,00 - 91,10
With microphone
Yes
Yes
With loudspeaker
No
No
Power consumption
5,00 W
5,00 W
Supply voltage
12,00 - 12,01 V
12,00 - 12,01 V
Voltage type
DC
DC
Colour
White
White
Diameter
16.300,00 mm
16.300,00 mm

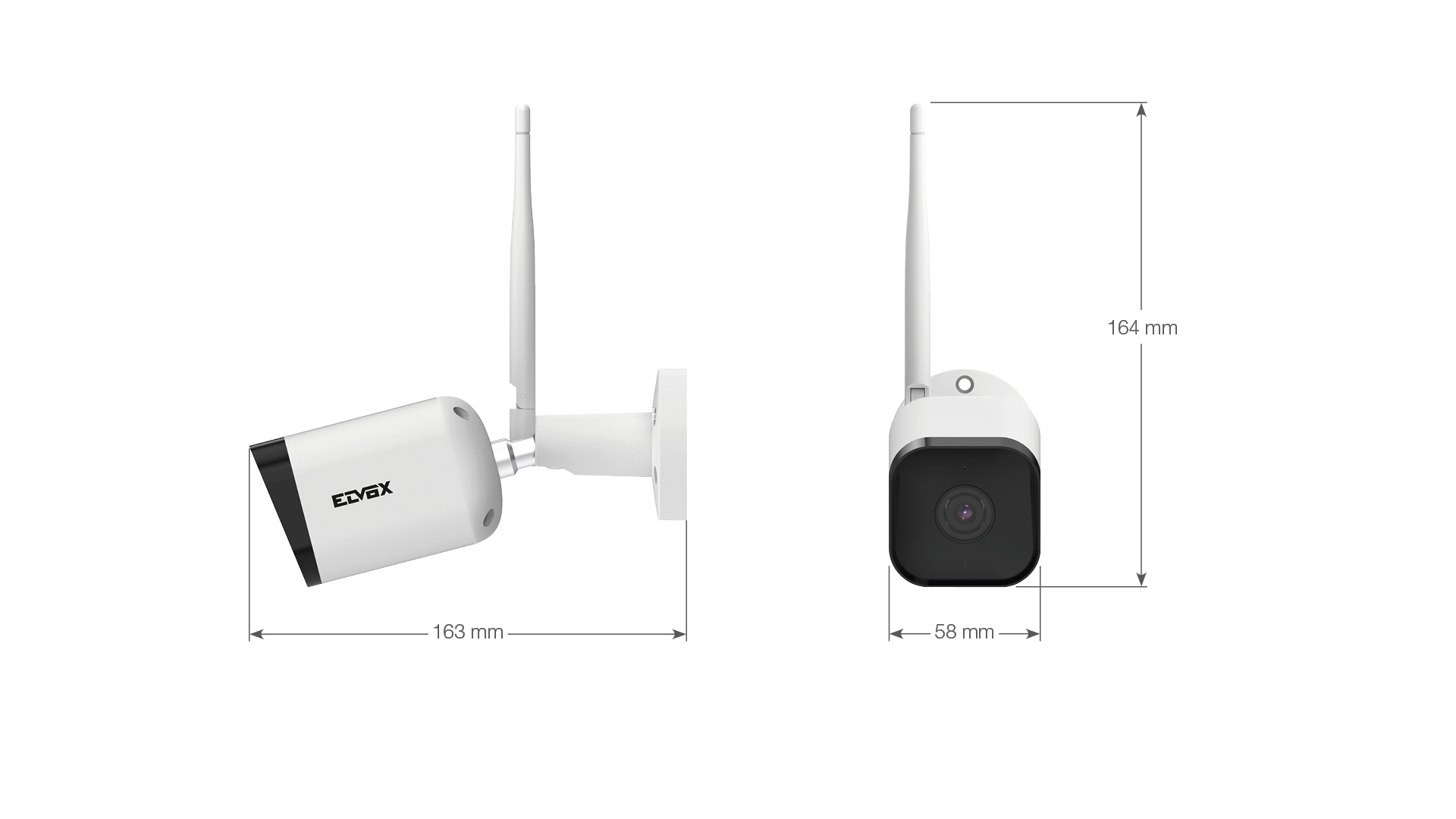

Height
163,00 mm
163,00 mm
Width
5.800,00 mm
5.800,00 mm
Depth
163,00 mm
163,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
最小订单数量: 1 NR
条形码
8007352706613
1 NR
20x16x14 [cm]
600 [g]
