46260.10P.02
Safety / ELVOX CCTV / IP / Networking

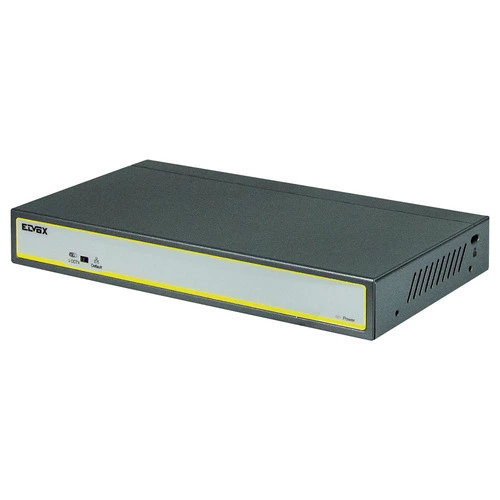

10-port Ethernet switch Gigabit 8 PoE at
Fast Ethernet switch with 10 ports 10/100/1000 Mbps auto-sensing, auto MDI/MDI-X, working LED, 8 PoE Standard IEEE 802.3af/at (End-Span 1/2+ ,3/6-) + 2 Uplink ports. Supported with 10/100/1000 BASE-T, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3X standards, MAC 4K table. Power supply 54 Vdc 2,2 A, power unit included. Dimensions: 200×101.8×27 mm
产品状态
3 - Active
单, 说明书, 文档
Class group
Installation material for data and telecommunication networks
Installation material for data and telecommunication networks
Class
Network switch
Network switch
Ethernet
Yes
Yes
Number of ports 10/100 Mbps RJ45
0
0
Number of ports 10/100/1000 Mbps RJ45
10
10
Number of ports 1000 Mbps RJ45
10
10
Number of ports 10 Gbps RJ45
0
0
Number of ports 10 Gbps Mini GBIC
0
0
Number of ports 100/1000 Mbps Mini GBIC
0
0
Number of ports 1000 Mbps Mini GBIC
0
0
Number of ports 40 Gbps Mini GBIC
0
0
Number of ports 100 Gbps Mini GBIC
0
0
Number of combination-ports RJ45/Mini GBIC
0
0
Number of ports 1000 Mbps GBIC
0
0
Number of ports 10/100 Mbps M12
0
0
Number of ports 100 Mbps SC
0
0
Number of ports 1000 Mbps SC (SX)
0
0
Number of ports 1000 Mbps SC (LX)
0
0
Number of ports 100 Mbps ST
0
0
Number of ports 100 Mbps POF
0
0
Number of ports 1000 Mbps POF
0
0
Number of other ports
10
10
Power over Ethernet (PoE)
802.3 at (PoE+)
802.3 at (PoE+)
Number of ports PoE
8
8
Max. PoE power
120 W
120 W
Max. power consumption
5 W
5 W
Redundant power supply
No
No
Mounting method
Desk type
Desk type
Manageable
No
No
Degree of protection (IP)
Other
Other
Height
27,00 mm
27,00 mm
Width
200,0 mm
200,0 mm
Depth
101,80 mm
101,80 mm
Compatible with Grade2TV according to XP-C 90-483
No
No
Compatible with Grade3TV according to XP-C 90-483
No
No
最小订单数量: 1 NR
条形码
8013406307170
1 NR
22x13x9 [cm]
1,391 [g]
8013406307385
15 NR
56x53x32 [cm]
21,515 [g]
