46CAM.136B.8
Safety / ELVOX CCTV / AHD / Cameras

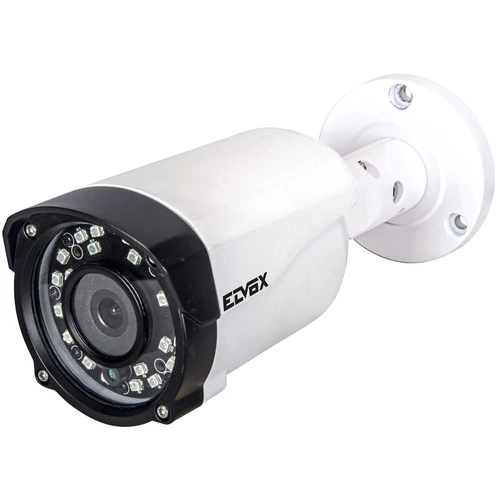

Bullet IR AHD cam1080p 3,6mm lens CVBS
Bullet Day & Night camera, CVBS/AHD selection, Full-HD 1080p resolution, 1/2,7 in sensor, IR mechanical filter, 3,6 mm fixed focus lens, 0 lux sensitivity (IR ON), IP66 protection rating, IR illuminator with range up to 20 m, Smart-IR, OSD. Power supply 12 Vdc 230 mA, supplied with bracket with protected cable passage. Dimensions 152x68x82 mm. Weight 295 g
- Ready to use, no programming required
- Supplied in CVBS standard to encourage connection without the need for configuration (in the installation with video entryphone)
产品状态
3 - Active
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Camera for surveillance system
Model
Standard (Fixed)
Standard (Fixed)
Construction type
Bullet shape
Bullet shape
Thermal camera
No
No
Number of pixels (Megapixel)
2
2
With lens
Yes
Yes
Modular (lens and camera separated)
No
No
Focal size
3,60 - 3,61 mm
3,60 - 3,61 mm
Shutter control
DC
DC
Lens connection
Other
Other
Motor zoom
No
No
Suitable for wall mounting
Yes
Yes
Suitable for ceiling mounting
Yes
Yes
Suitable for corner mounting
No
No
Suitable for surface mounting
Yes
Yes
Flush-mounted installation/built-in installation
No
No
Suitable for outdoor use
Yes
Yes
Communication medium wired
Yes
Yes
Communication medium wireless
No
No
Type of interface
Other
Other
Protocol
Other
Other
Power over Ethernet (PoE)
None
None
Picture system
PAL
PAL
Frame rate
25
25
Property picture system
Colour
Colour
With infrared lighting
Yes
Yes
Max. infrared reach
15 m
15 m
With white light
No
No
Max. white light reach
0 m
0 m
Supports H.264 codec
No
No
Supports H.265 codec
No
No
Supports Motion JPEG codec
Yes
Yes
Supports MPEG-4 codec
No
No
With video motion detector
No
No
With integrated AI analysis
No
No
With slot for memory card
No
No
With memory card
No
No
Memory capacity
0
0
Number of digital inputs
0
0
Number of digital outputs
0
0
Number of audio inputs
0
0
Number of audio outputs
0
0
With integrated audio analysis
No
No
HDMI-connection
No
No
Mini HDMI-connection
No
No
VGA-connection (D-Sub 15-pole)
No
No
DVI-connection
No
No
BNC-connection
Yes
Yes
DisplayPort-connection
No
No
Mini DisplayPort
No
No
S-Video-connection
No
No
USB-C-connection
No
No
Vandal proof
No
No
Impact strength
Other
Other
Degree of protection (IP)
IP66
IP66
With microphone
No
No
With loudspeaker
No
No
Power consumption
3,12 W
3,12 W
Supply voltage
12,00 - 12,01 V
12,00 - 12,01 V
Voltage type
DC
DC
Colour
White
White
Diameter
6.800,00 mm
6.800,00 mm
Height
82,00 mm
82,00 mm
Width
6.800,00 mm
6.800,00 mm
Depth
152,00 mm
152,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
最小订单数量: 1 NR
条形码
8013406307163
1 NR
20.5x11.5x11 [cm]
535.2 [g]
| 问题： | What kind of external camera can I connect to this kit? |
|---|---|
| 回答： | The Vimar 46CAM.136B.8 camera can be connected to the CCTV and GND terminals of the outdoor station; Maximum length: 100 m with SYV75-3/RG59 cable. |
| 问题： | When the camera is combined with the video entryphone K40911 no image can be seen. |
| 回答： | It is necessary to switch the camera to CVBS mode according to the procedures provided in the instructions. |
