46NVR.08PN
Safety / ELVOX CCTV / IP / NVR

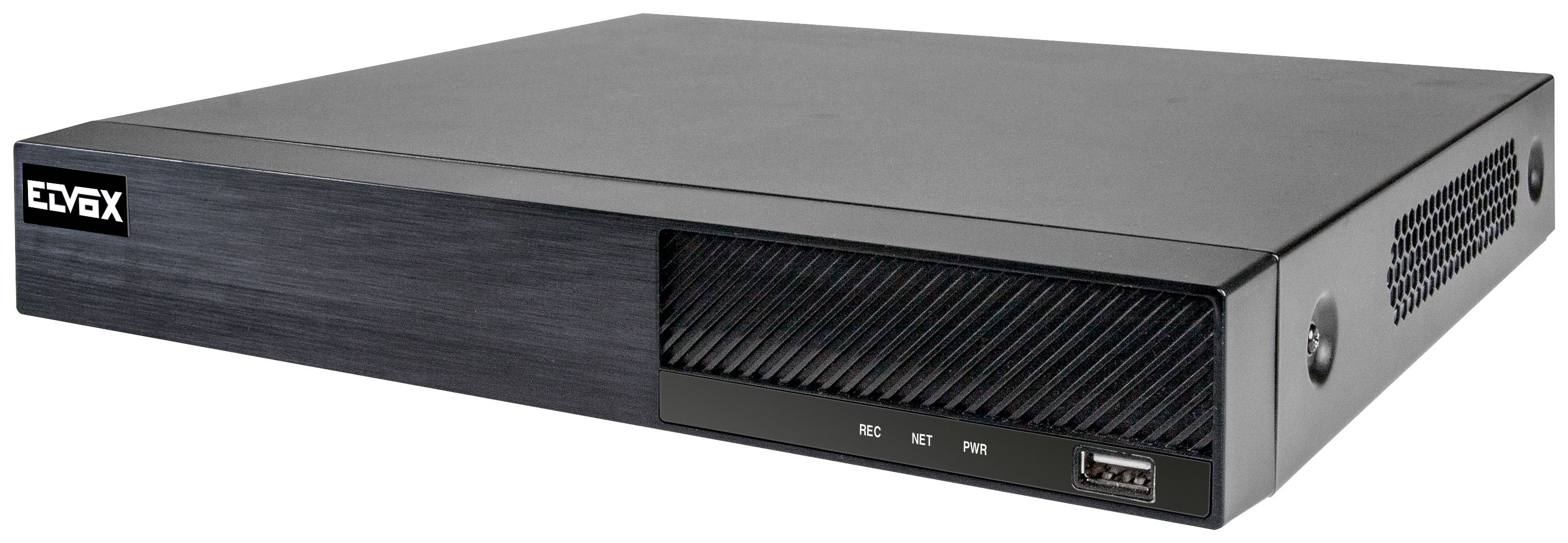

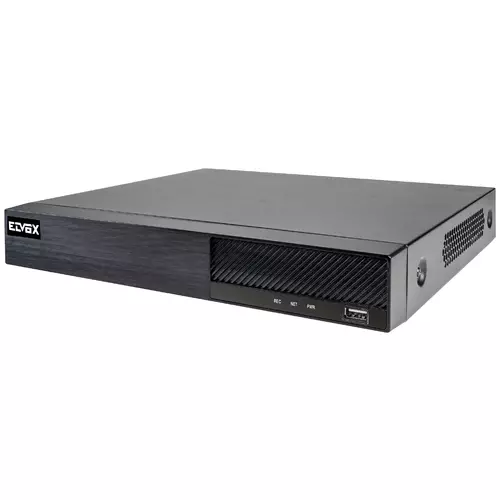

8-chan.NVR PoE 8Mpx H.265s HDD 1TB NDAA
8-channel NVR, H.265s compression, Pentaplex function, 8-channel 8 Mpx Real Time recording resolution, Professional 1 TB HDD, SATA x 1 max 10 TB, 1 in/1 out audio connections, 2 USB, VGA, HDMI with resolution up to 4K, built-in af/at PoE switch with 8 ports with Plug&Play configuration, remote control and viewing, QRCODE, privacy mask, motion detection, ONVIF protocol, compliant with the NDAA standard, CVM software. Dimensions 300x248x52 mm
产品状态
3 - Active
您可能也感兴趣
单, 说明书, 文档
- Integrazione Elvox TVCC nei touch screen (779 kb)
- Elvox CCTV integration in touch screens (740 kb)
- Multilanguage instructions sheet (1608 kb)
- Interfaccia grafica videoregistratori (25361 kb)
- Videorecorder graphical user interface (25293 kb)
- Configurazione analisi video per DVR/NVR (13835 kb)
- DVR/NVR video analysis configuration (13802 kb)
产品配套软件

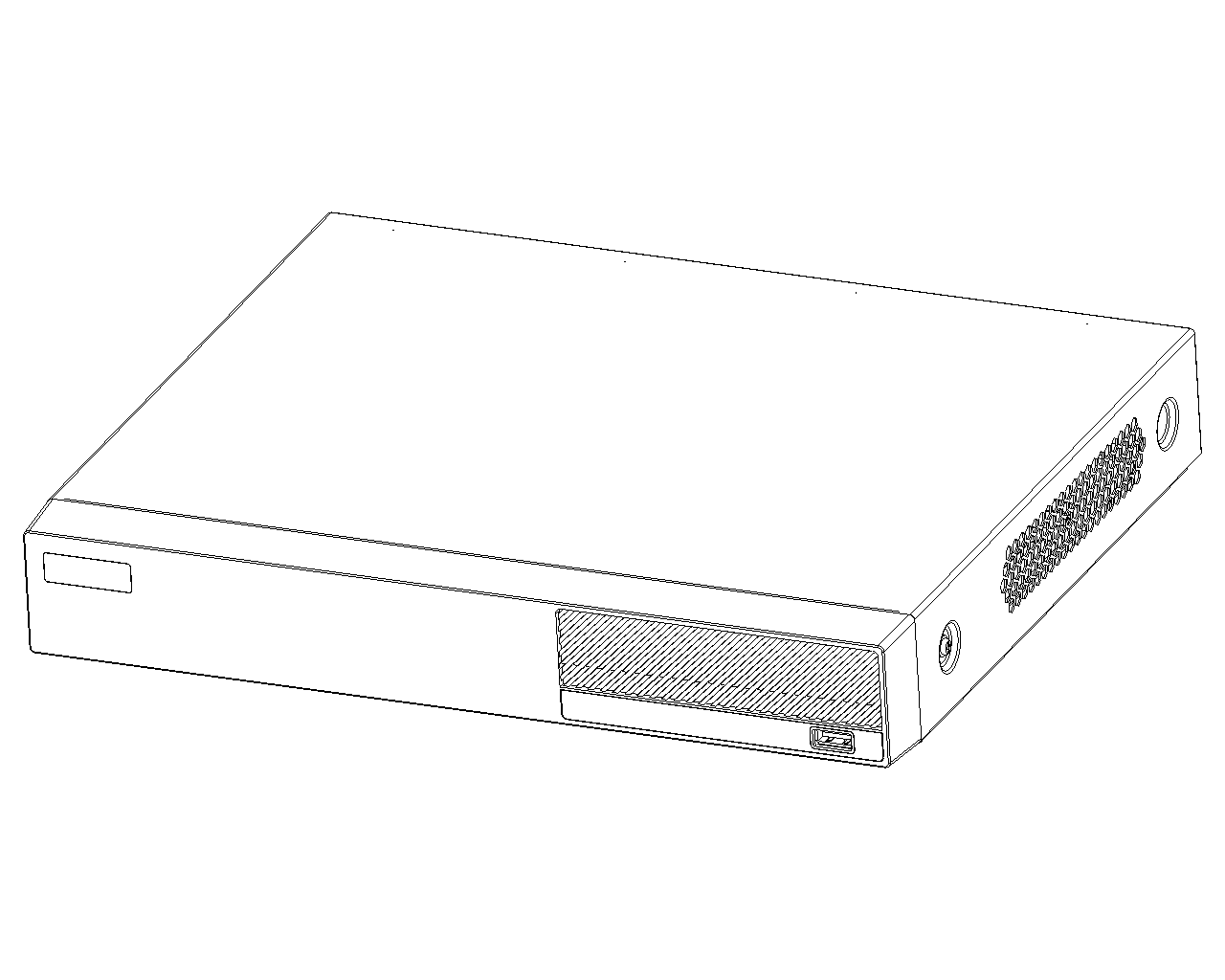

图纸
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Image storage for video surveillance system
Image storage for video surveillance system
Recording type
Digital
Digital
Device construction
Desktop
Desktop
Number of hard disc bays
1
1
Number of preinstalled hard discs
1
1
Memory capacity per hard disc
10
10
Max. number of video inputs
8
8
Max. number of control inputs
0
0
Number of HDMI connections
1
1
Number of Mini HDMI connections
0
0
Number of DVI sockets
0
0
Number of RJ45 connections
9
9
Number of inputs DisplayPort (DP)
0
0
Number of inputs Mini DisplayPort (mDP)
0
0
Number of D-Sub connections 15-pole
0
0
Number of BNC connections
0
0
Number of ports USB-A
0
0
Number of ports USB-C
2
2
Supports H.264 codec
Yes
Yes
Supports H.265 codec
Yes
Yes
Supports Motion JPEG codec
Yes
Yes
Supports MPEG-4 codec
No
No
With video motion detector
Yes
Yes
With integrated AI analysis
Yes
Yes
With integrated audio analysis
No
No
Number of ports 1000 Mbps Mini GBIC
0
0
Number of combination-ports RJ45/Mini GBIC
0
0
Number of ports PoE
8
8
Max. PoE power
72 W
72 W
Power over Ethernet (PoE)
802.3at (PoE+)
802.3at (PoE+)
With DVD
No
No
Redundant power supply
No
No
Power consumption
15 W
15 W
Max. recording resolution
8
8
Max. data transmission rate
100
100
Max. transmission rate input
80
80
Max. transmission rate output
80
80
Operating system
Other
Other
Number of pre-licensed cameras
8
8
RAID 0 capable
No
No
RAID 1 capable
No
No
RAID 5 capable
No
No
RAID 6 capable
No
No
RAID 10 capable
No
No
Hot-swappable hard disk capability
No
No
Width
269 mm
269 mm
Height
52 mm
52 mm
Depth
380 mm
380 mm
00. CE Marking - EU
37. Marking - Morocco
最小订单数量: 1 NR
条形码
8007352742772
1 NR
45x32.5x10.5 [cm]
2,960 [g]
