Sound System interphone power supp. 230V - 938A

Pdf
Vimar - 938A - Sound System interphone power supp. 230V
Vimar - 938A - Sound System interphone power supp. 230V

938A
ELVOX Door entry system / Multi-wire video entry system / Shared A/V components / System components

Sound System interphone power supp. 230V

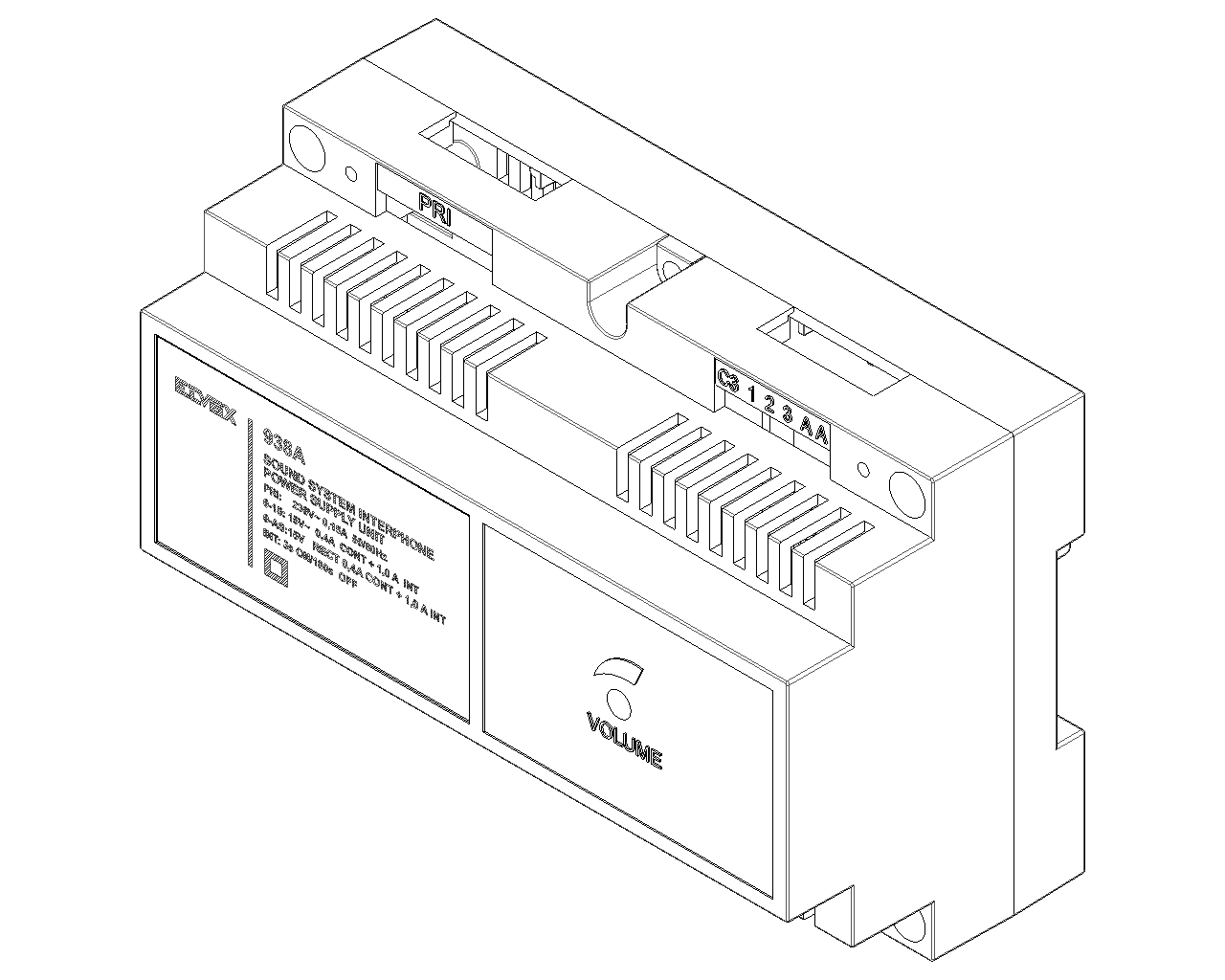

Power supply unit for Sound System interphone with 15 V output, power supply 230 V~ 50/60 Hz 55 VA, entrance panel call function, with triple note generator for calls from the external entrance panel, the landing or intercom units, for electronic units 0930/000.04 and 930A, installation on DIN rail (60715 TH35), occupies 8 modules size 17.5 mm

产品状态
3 - Active

Class group
Communication technique
Class
Power supply door communication
Application
Other
Input voltage
230 V
Type of current
AC
Output voltage
15,00 V
Degree of protection (IP)
IP20
Installation technique
Multi-wire system
Integrated door opening circuit
Yes
Control function
No
Evaluation function
No
Service indication
No
Mounting method
Other
Programming lock
No

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8013406134998
1 NR
14.5x9.5x8 [cm]
1,009 [g]
Barcode Qty 20 NR
8013406225993
20 NR
37x32x21.5 [cm]
20,562 [g]

分享

Codice QR scheda articolo

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。 安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。 有关产品卡信息的使用条件，请参阅 使用条件。
