Flush-mount box f/hollow walls f/V53136 - V53736

Pdf
Vimar - V53736 - Flush-mount box f/hollow walls f/V53136
Vimar - V53736 - Flush-mount box f/hollow walls f/V53136

V53736
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

Flush-mount box f/hollow walls f/V53136

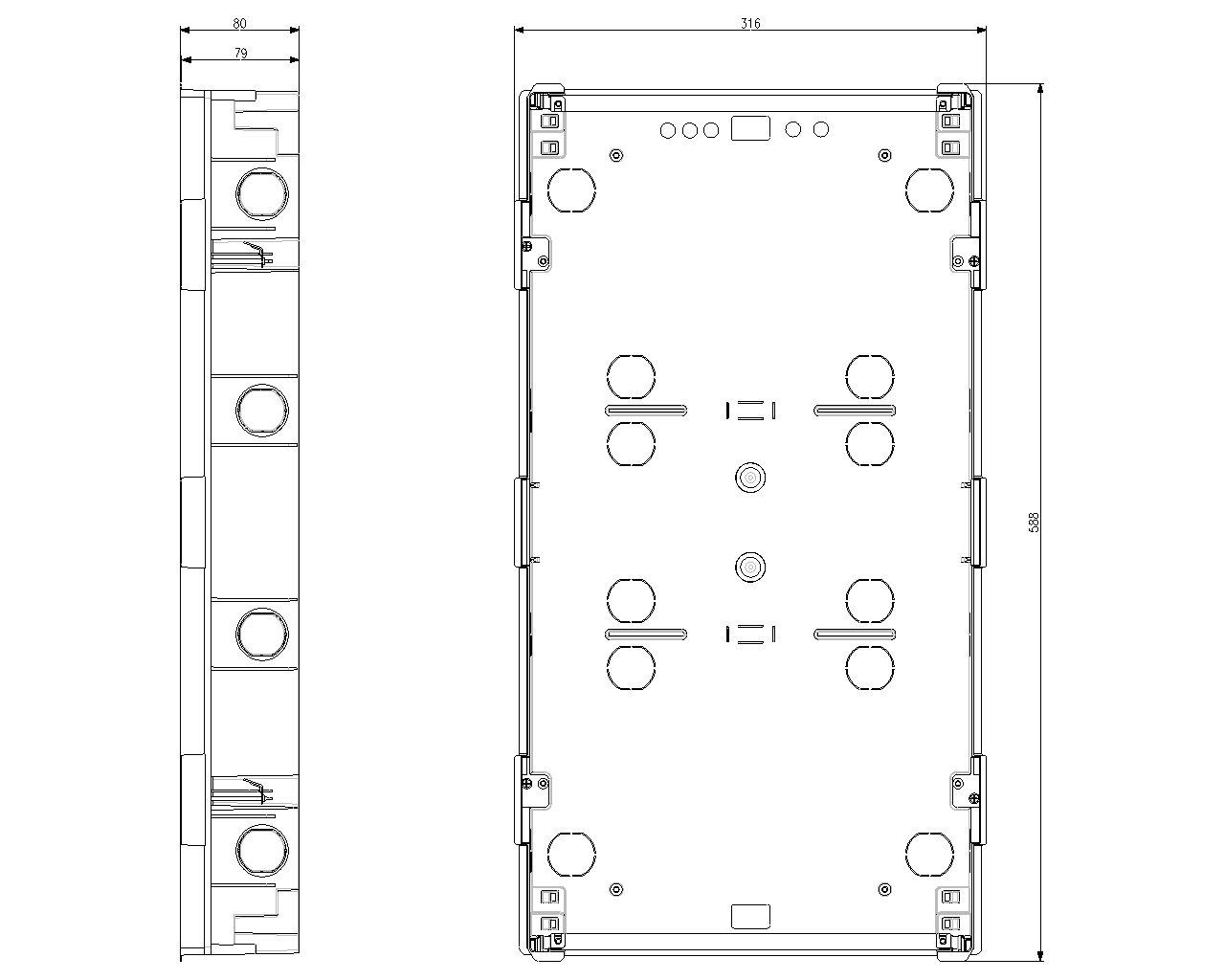

Flush mounting box for 36-module consumer unit (GW 650 °C) for hollow walls, light blue. Dimensions 316x588x80 mm

产品状态
3 - Active

Class group
Distribution boards
Class
Empty cabinet
Mounting method
Flush-mounted
Type of covering
None
Cover model
None
Type of door
None
Transparent cover/door
No
With lock
No
Nominal current (In)
0 A
Height
588 mm
Width
316 mm
Depth
80,00 mm
Built-in depth
80,00 mm
Inner depth
78,00 mm
Colour
Other
RAL-number
0
Number of modules
36
Number of rows
3
Width in number of modular spacings
36
Number of openings for flange plates
0
Extension possible
No
Number of conduit inlets
46
Housing material
Plastic
Surface protection
Untreated
With mounting plate
No
Suitable for outdoor use
No
Suitable for lightning protection
No
Degree of protection (IP)
IP40
Protection class
II
Circuit integrity
None

01. IMQ - Italy

96. Electrotechnical expert

最小订单数量: 4 NR

条形码

Barcode Qty 1 NR
8007352510050
1 NR
31.6x58x8 [cm]
925 [g]
Barcode Qty 4 NR
8007352510067
4 NR
58x38x42.5 [cm]
4,760 [g]
