20210.USB
Wiring devices / Traditional wiring devices / EIKON / Devices

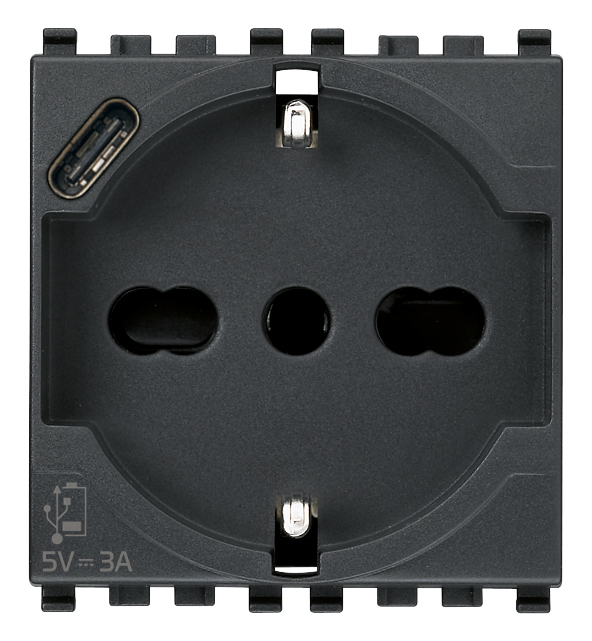

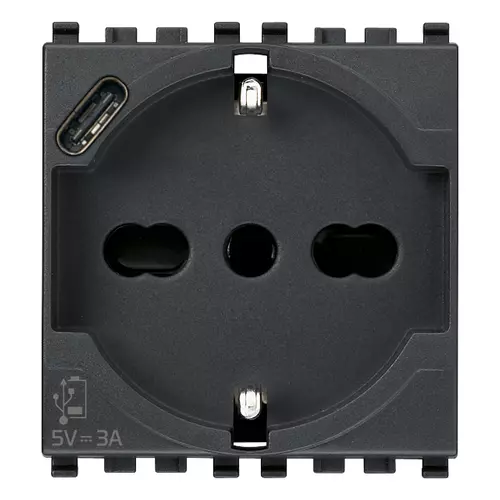

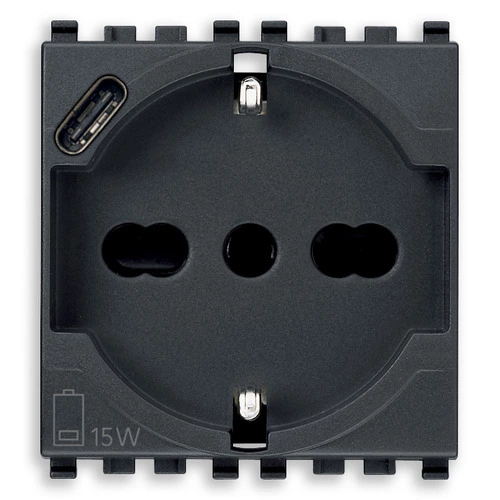

2P+E 16A Universal+USB-C outlet grey
- Device on 2 modules capable of simultaneously charging 2 devices, thanks to the universal socket outlet and the type C 3A USB socket outlet
Product Status
3 - Active
Sheets, Manuals, Documentation

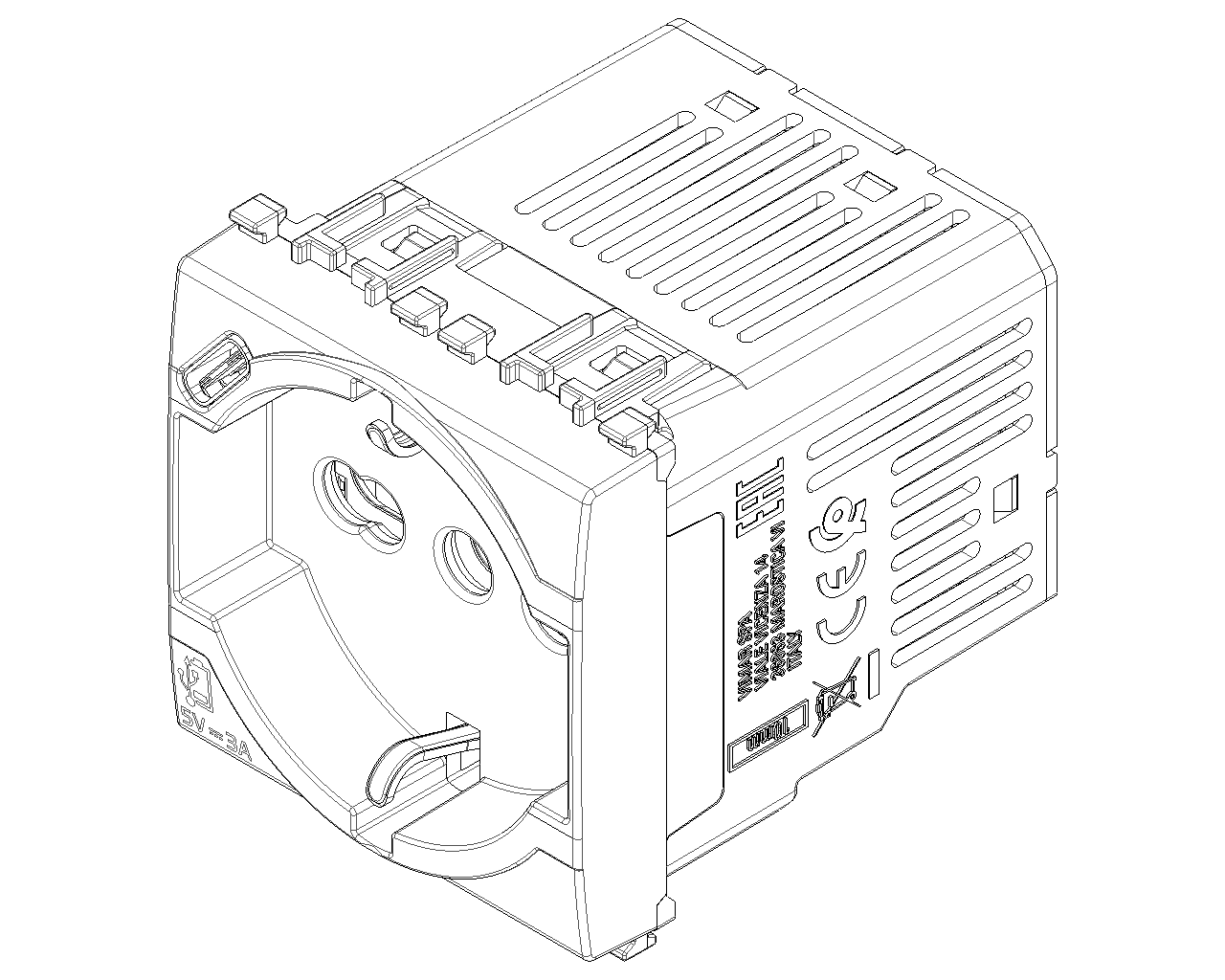

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Socket outlet
Socket outlet
Model
Other
Other
Number of active contacts (round)
0
0
Number of active contacts (flat)
0
0
With signal lamp
No
No
Number of units
1
1
Number of modules (module system)
2
2
Number of socket outlets switchable
0
0
Number of phases
2
2
Imprint/indication
Other
Other
Connection type
Screwed terminal
Screwed terminal
With hinged lid
No
No
With enhanced contact protection
Yes
Yes
Label space/information surface
No
No
Colour
Grey
Grey
RAL-number (similar)
7024
7024
Metallic colour
No
No
Transparent
No
No
Lockable
No
No
Eject-mechanism
No
No
Insulated mounting
Yes
Yes
With function lighting
No
No
With orientation lighting
No
No
Over voltage protection
No
No
Fault current protection
No
No
With miniature fuse
No
No
Special power supply
No special power supply
No special power supply
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Anti-bacterial treatment
No
No
With loop through function
Yes
Yes
With on/off switch
No
No
Rotated central insert
No
No
Nominal current
16 A
16 A
Nominal voltage
250 V
250 V
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
IP20

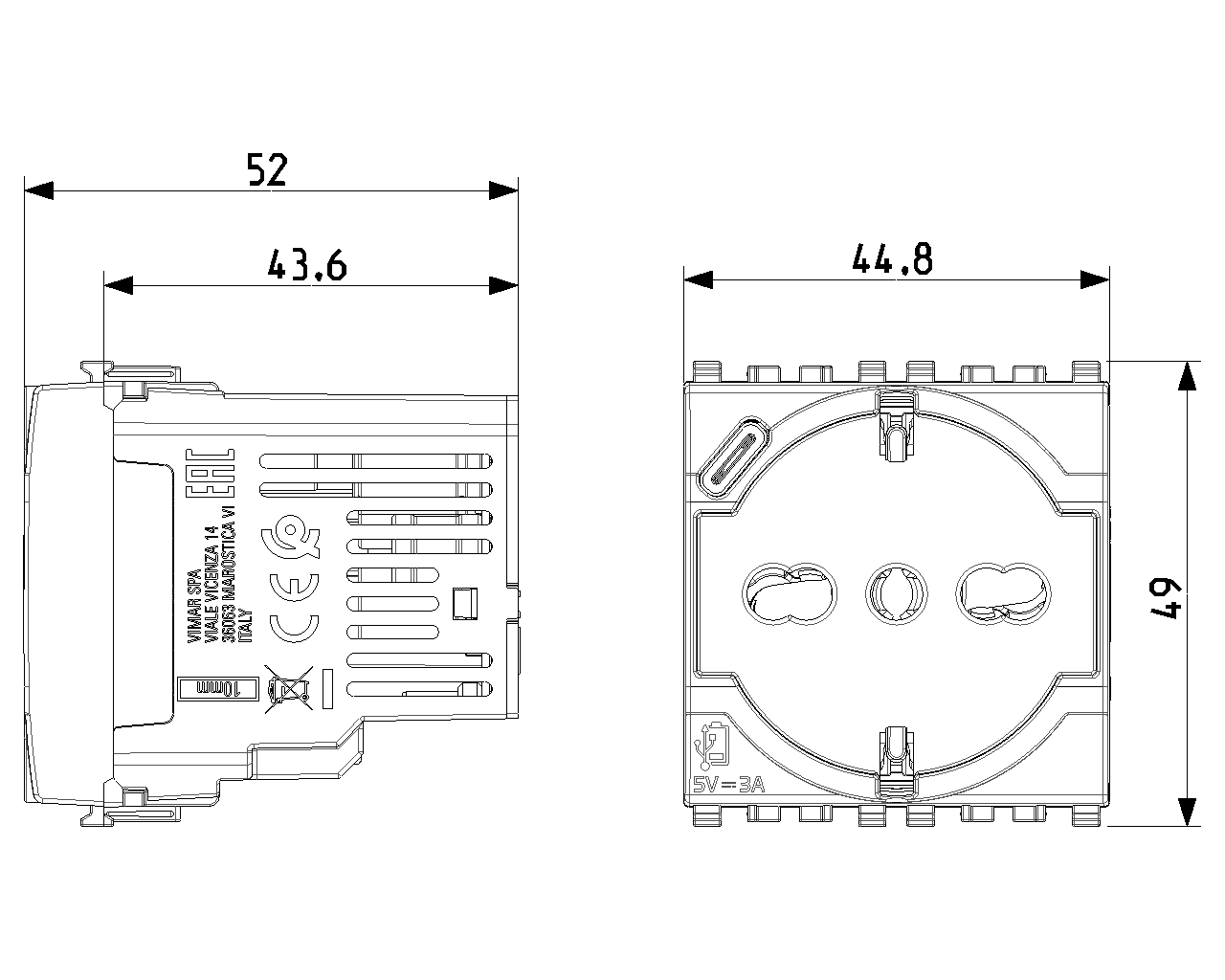

Device width
44,80 mm
44,80 mm
Device height
49,00 mm
49,00 mm
Device depth
52,00 mm
52,00 mm
Min. depth of built-in installation box
48 mm
48 mm
Compatible with Apple HomeKit
No
No
Compatible with Amazon Alexa
No
No
Compatible with Google Assistant
No
No
IFTTT support available
No
No
For heavy conditions according to VDE
No
No
00. CE Marking - EU
37. Marking - Morocco
Minimum order quantity: 1 NR
Barcode
8007352707016
1 NR
6x5.4x5.2 [cm]
35.5 [g]
8007352710153
10 NR
28.1x13.1x6 [cm]
921 [g]
8007352766556
60 NR
37.5x30x13.5 [cm]
2,490 [g]
8007352710160
120 NR
38.5x29x30 [cm]
11,540 [g]
