Interruptor 2P 16AX +llave blanco - 20083.B

Pdf
20083.B

Eikon blanca / Dispositivos / Dispositivos de mando - otras funciones

Interruptor 2P 16AX +llave blanco
Interruptor de llave 2P 16 AX 250 V~, con llave extraíble en las dos posiciones, blanco. Máx 200 W para lámparas con balasto integrado

Estado producto
3 - Activo

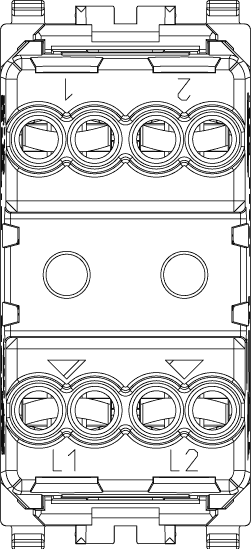

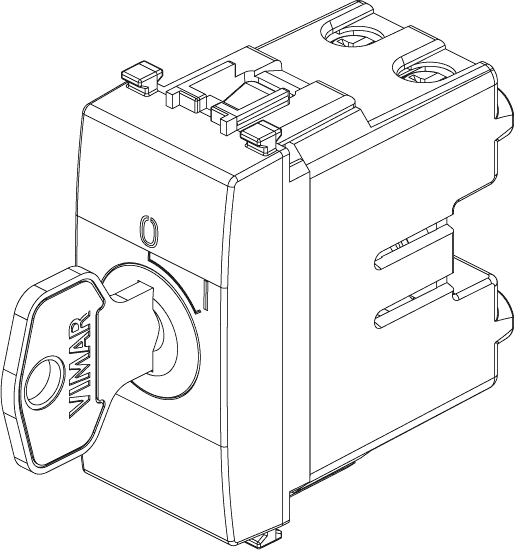

Dibujos

Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Key
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
43,50 mm
Built-in depth
33,50 mm

00. Marcado CE - UE

10. EAC Eurasian Customs Union

29. QCERT - Colombia

31. TISI - Tailandia

37. Marcado - Marruecos

43. Marca UKCA - Gran Bretaña

Cant. mínima de pedido: 10 NR

Código de barras

Barcode Qty 1 NR
8007352315853
1 NR
5,1x2,8x5,3 [cm]
53 [g]
Barcode Qty 10 NR
8007352315860
10 NR
14,4x11,6x6 [cm]
575,93 [g]
