30208.USBG
Series residenciales / Series resid. tradicionales / LINEA / Dispositivos

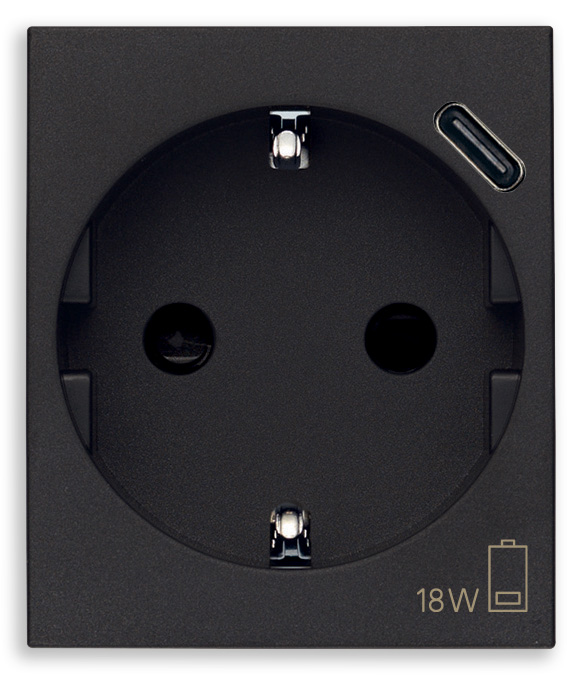

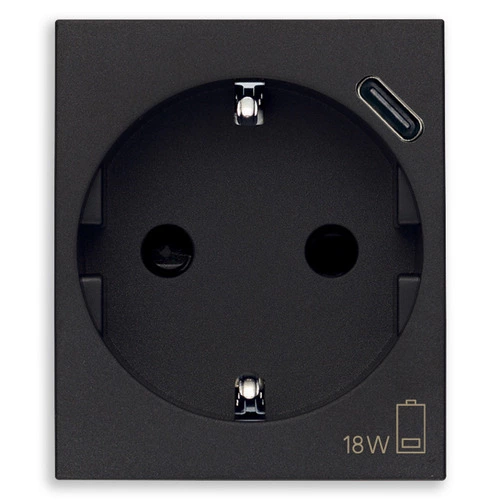

Toma SICURY 2P+T 16A DE+USBC 18W negro
Estado producto
3 - Activo
Instrucciones, Manuales, Documentación
Dibujos
Class group
Domestic switching devices
Domestic switching devices
Class
Socket outlet
Socket outlet
Model
Socket outlet with protective contact CEE 7/3 (type F)
Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor
No
No
Protective contact
Earthing clips
Earthing clips
Number of active contacts (round)
2
2
Number of active contacts (flat)
0
0
Number of active contacts (square)
0
0
With signal lamp
No
No
Number of ports USB-A
0
0
Number of ports USB-C
1
1
Max. current rating of USB power supply
3 A
3 A
Number of socket outlets
1
1
Number of modules (module system)
2
2
Number of socket outlets switchable
0
0
Number of phases
1
1
Imprint/indication
Other
Other
Connection type
Screwed terminal
Screwed terminal
With hinged lid
No
No
With enhanced contact protection
Si
Si
Label space/information surface
No
No
Colour
Black
Black
RAL-number (similar)
7021
7021
Metallic colour
No
No
Transparent
No
No
Lockable
No
No
Eject-mechanism
No
No
Insulated mounting
Si
Si
With function lighting
No
No
With orientation lighting
No
No
Overvoltage protection
No
No
Fault current protection
No
No
With miniature fuse
No
No
Special power supply
None
None
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Si
Si
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Anti-bacterial treatment
No
No
With loop through function
Si
Si
Number of loop throughs
1
1
With on/off switch
No
No
Colour of switch operator
Other
Other
Rotated central insert
No
No
Nominal current
16 A
16 A
Nominal voltage
250 V
250 V
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Rated fault current
0 mA
0 mA
Suitable for degree of protection (IP)
IP20
IP20
Impact strength
Other
Other
Device width
44,70 mm
44,70 mm
Device height
52,80 mm
52,80 mm
Device depth
41,60 mm
41,60 mm
Min. depth of built-in installation box
40,00 mm
40,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Amazon Alexa
No
No
Compatible with Google Assistant
No
No
IFTTT support available
No
No
With Wi-Fi signal repeater
No
No
With built-in bluetooth speaker
No
No
For heavy conditions according to VDE
No
No
Compliant with UK Building Regulations Part M
No
No
Cant. mínima de pedido: 10 NR
Código de barras
8007352755024
1 NR
6x5,4x5,2 [cm]
72 [g]
8007352755031
10 NR
28,1x13,1x6 [cm]
804,6 [g]
8007352755048
120 NR
40x30x27 [cm]
10.135,2 [g]
