30214.C
Series residenciales / Series resid. tradicionales / LINEA / Dispositivos

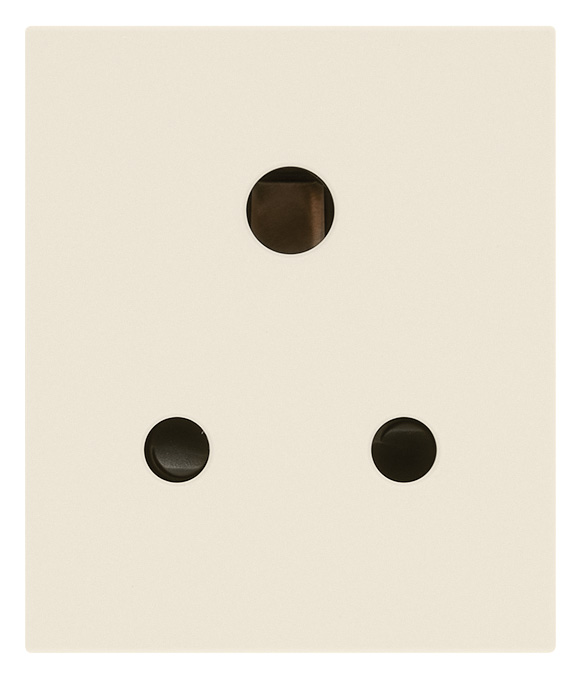

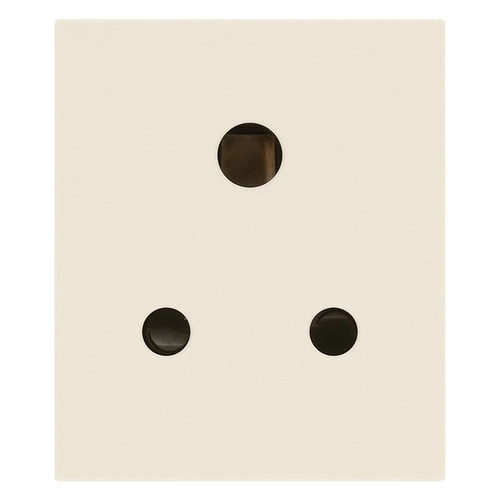

Toma SICURY 2P+T 5A inglés cáñamo
Toma de corriente SICURY 2P+T 5 A 250 V~, estándar inglés, hueso - 2 módulos
Estado producto
3 - Activo
Class group
Domestic switching devices
Domestic switching devices
Class
Socket outlet
Socket outlet
Model
British Standard
British Standard
Concurrently switching neutral conductor
No
No
Protective contact
Other
Other
Number of active contacts (round)
0
0
Number of active contacts (flat)
0
0
Number of active contacts (square)
0
0
Mounting direction
Vertical
Vertical
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
With signal lamp
No
No
Number of ports USB-A
0
0
Number of ports USB-C
0
0
Number of socket outlets
1
1
Socket outlets phase-separated
No
No
Number of modules (module system)
4
4
Number of socket outlets switchable
0
0
Number of phases
1
1
Imprint/indication
Other
Other
Connection type
Screwed terminal and push-in clamp
Screwed terminal and push-in clamp
With hinged lid
No
No
With enhanced contact protection
Si
Si
Label space/information surface
No
No
Colour
Beige
Beige
Metallic colour
No
No
Transparent
No
No
Lockable
No
No
Eject-mechanism
No
No
Insulated mounting
No
No
With function lighting
No
No
With orientation lighting
No
No
Overvoltage protection
No
No
Fault current protection
No
No
With miniature fuse
No
No
Special power supply
None
None
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Si
Si
Anti-bacterial treatment
No
No
With loop through function
No
No
Number of loop throughs
1
1
With on/off switch
No
No
Rotated central insert
No
No
Nominal current
5 A
5 A
Nominal voltage
250 V
250 V
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Rated fault current
0 mA
0 mA
Suitable for degree of protection (IP)
IP40
IP40
Impact strength
Other
Other
Device width
44,70 mm
44,70 mm
Device height
52,80 mm
52,80 mm
Device depth
28,00 mm
28,00 mm
Min. depth of built-in installation box
22,30 mm
22,30 mm
Compatible with Apple HomeKit
No
No
Compatible with Amazon Alexa
No
No
Compatible with Google Assistant
No
No
IFTTT support available
No
No
With Wi-Fi signal repeater
No
No
With built-in bluetooth speaker
No
No
For heavy conditions according to VDE
No
No
Inflammability class of insulation material according to UL 94
Other
Other
Compliant with UK Building Regulations Part M
Si
Si
Cant. mínima de pedido: 20 NR
Código de barras
8007352777453
1 NR
5,5x3,7x5,6 [cm]
52 [g]
8007352777460
20 NR
19,7x12x12,4 [cm]
1.125,8 [g]
Compartir
Legal
Vimar se reserva el derecho de cambiar en cualquier momento y sin previo aviso las características de los productos reportados. La instalación debe ser realizada por personal cualificado cumpliendo con las disposiciones en vigor que regulan el montaje del material eléctrico en el país donde se instalen los productos. Para las condiciones de uso de la información de la ficha del producto, consulte Condiciones de uso.
