Vimar - 09001.0.250 - 1P 16AX 1-way switch mech.+pilot250V

09001.0.250
Wiring devices / Traditional wiring devices / NEVE UP / Devices

1P 16AX 1-way switch mech.+pilot250V
1P 16 AX 250 V~ 1-way switch mechanism, with white indicator light, to be completed with 1-2 module button. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

您可能也感兴趣

09001.0.250 - 1P 16AX 1-way switch mech.+pilot250V

09021.N.CM - Button 1M neutral carbon matt

09022.N - Button 2M neutral white

09022.N.CM - Button 2M neutral carbon matt

09021.L - Button 1M light symbol white

09021.L.CM - Button 1M light symbol carbon matt

09021.C - Button 1M bell symbol white

09021.C.CM - Button 1M bell symbol carbon matt

09021.S - Button 1M switch ON symbol white

09021.S.CM - Button 1M switch ON symbol carbon matt

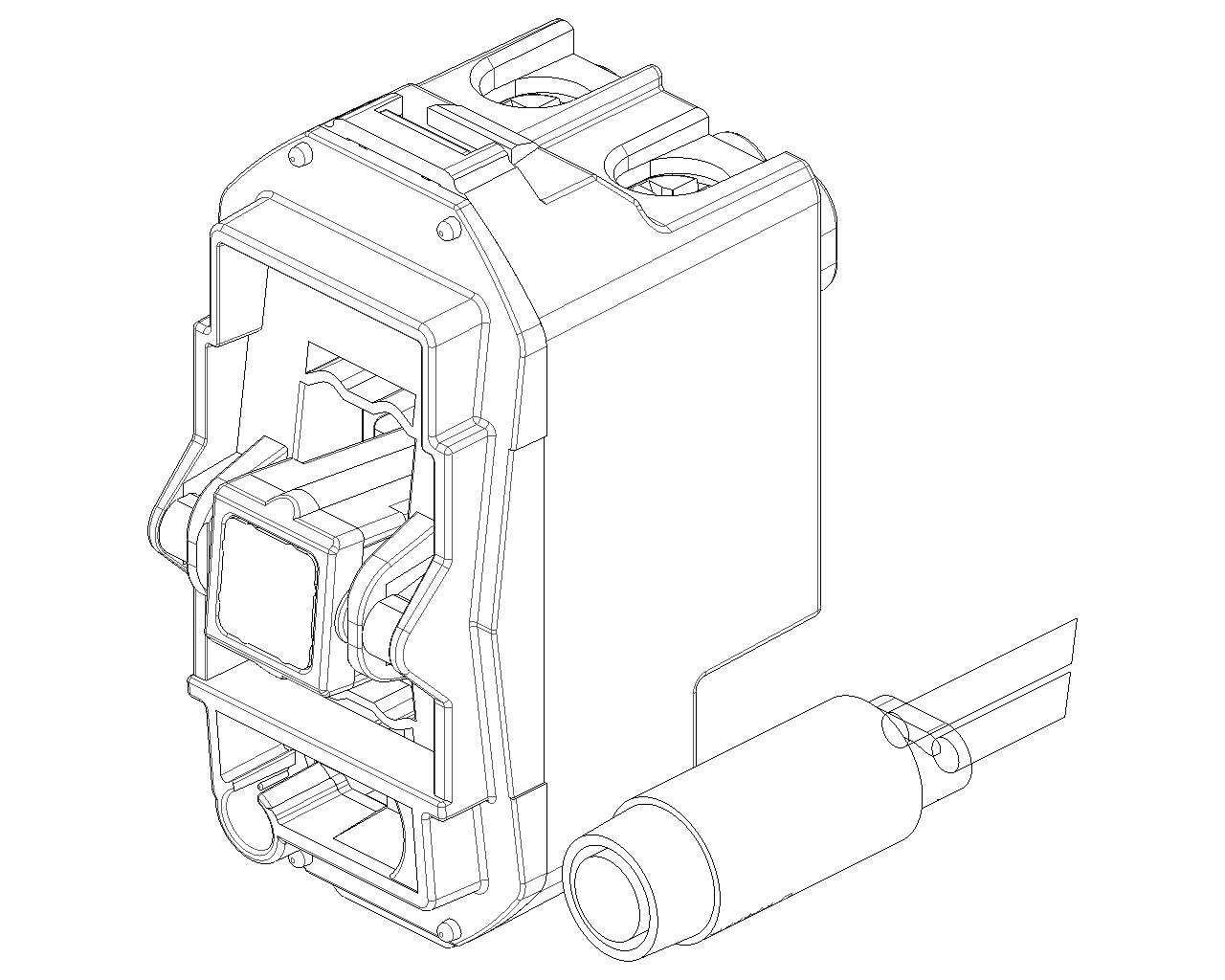

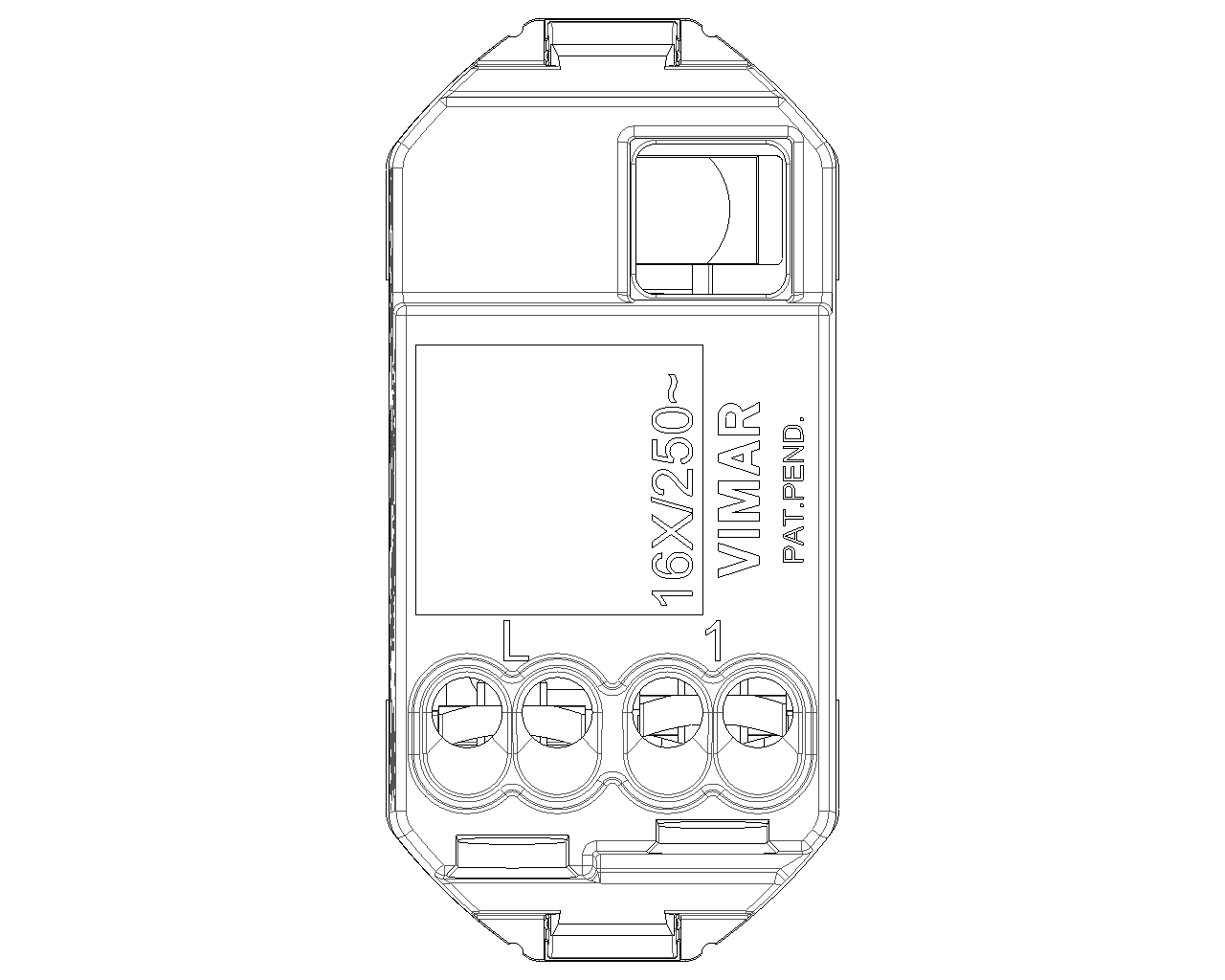

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Off switch 1-pole

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Label space/information surface
Yes

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
22,30 mm

Device height
47,00 mm

Device depth
33,00 mm

Built-in depth
23,10 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

13. SNI - Indonesia

15. CCC - China

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 50 NR

条形码

8007352657700

1 NR

4.1x2.8x5.3 [cm]

23.8 [g]

8007352657717

50 NR

21.4x11.6x14.2 [cm]

1,270 [g]

8007352657724

500 NR

57.5x22x29.5 [cm]

13,000 [g]
